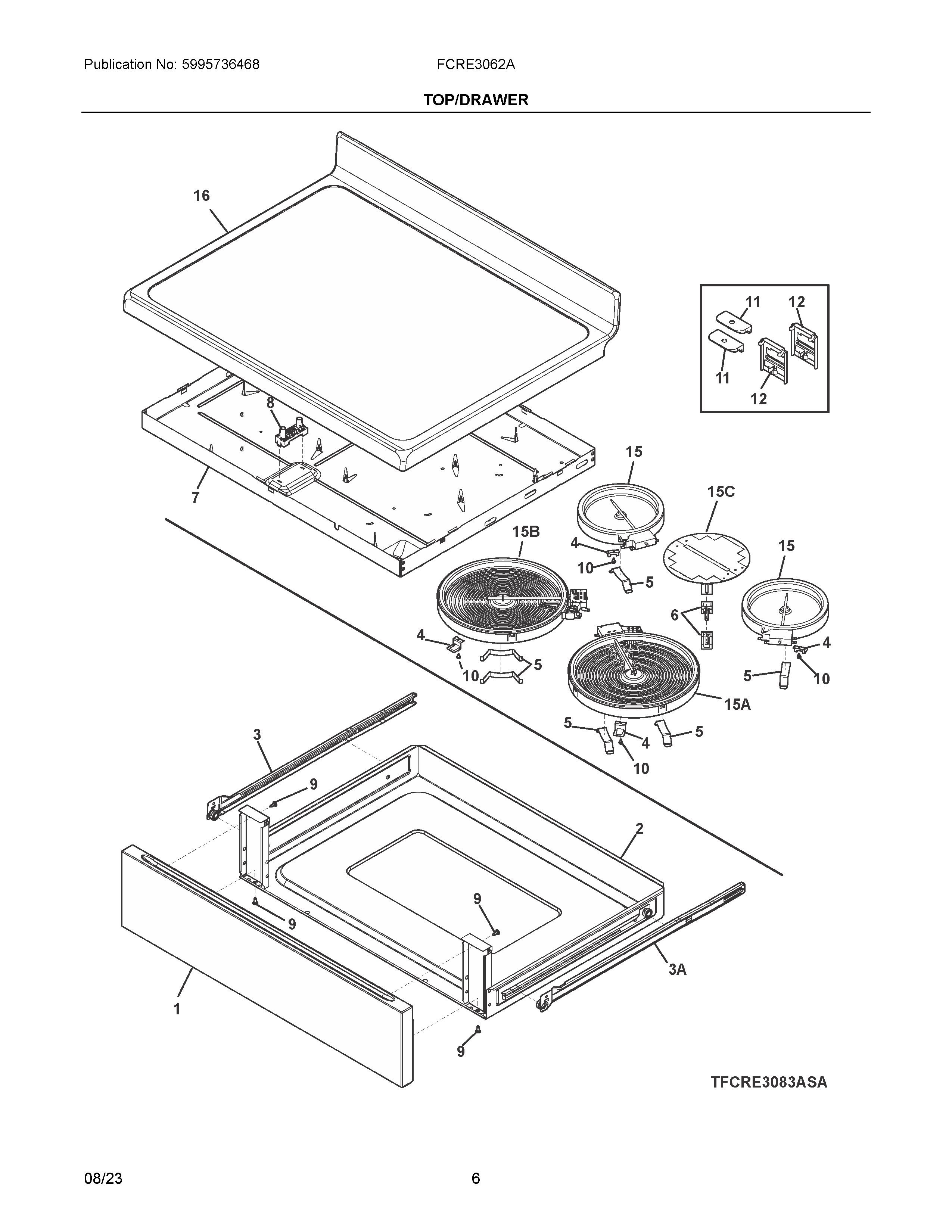

FCRE3062AWA 04 – TOP/DRAWER

FCRE3062AWA 04 – TOP/DRAWER

Written by

in

FCRE3062AWA 04 – TOP/DRAWER

Products

PositionProduct
NI5304529019 Frigidaire Harness
NI387856311 Frigidaire Screw
15304526301 Frigidaire Panel
25304526448 Frigidaire Drawer Assembly
3A5304526307 Frigidaire Glide
35304526306 Frigidaire Glide
4387683300 Frigidaire Bracket
5SPRING, ELEMENT SUPPORT
6CLIP, SPRING, ELEMENT
7BURNER BOX, SMOOTHTOP
8INDICATOR-LIGHT 250
95304526533 Frigidaire Screw
10SCREW
11CLIP, ALIGNMENT, COOKTOP
125304534653 Frigidaire Clip Assembly
15318178110 Frigidaire Oven Range 6" Surface Element
15A316530001 Frigidaire Oven Element
15CELEMENT,RADIANT,100W,WARMER
15B5304533520 Frigidaire Element
16SMOOTHTOP
