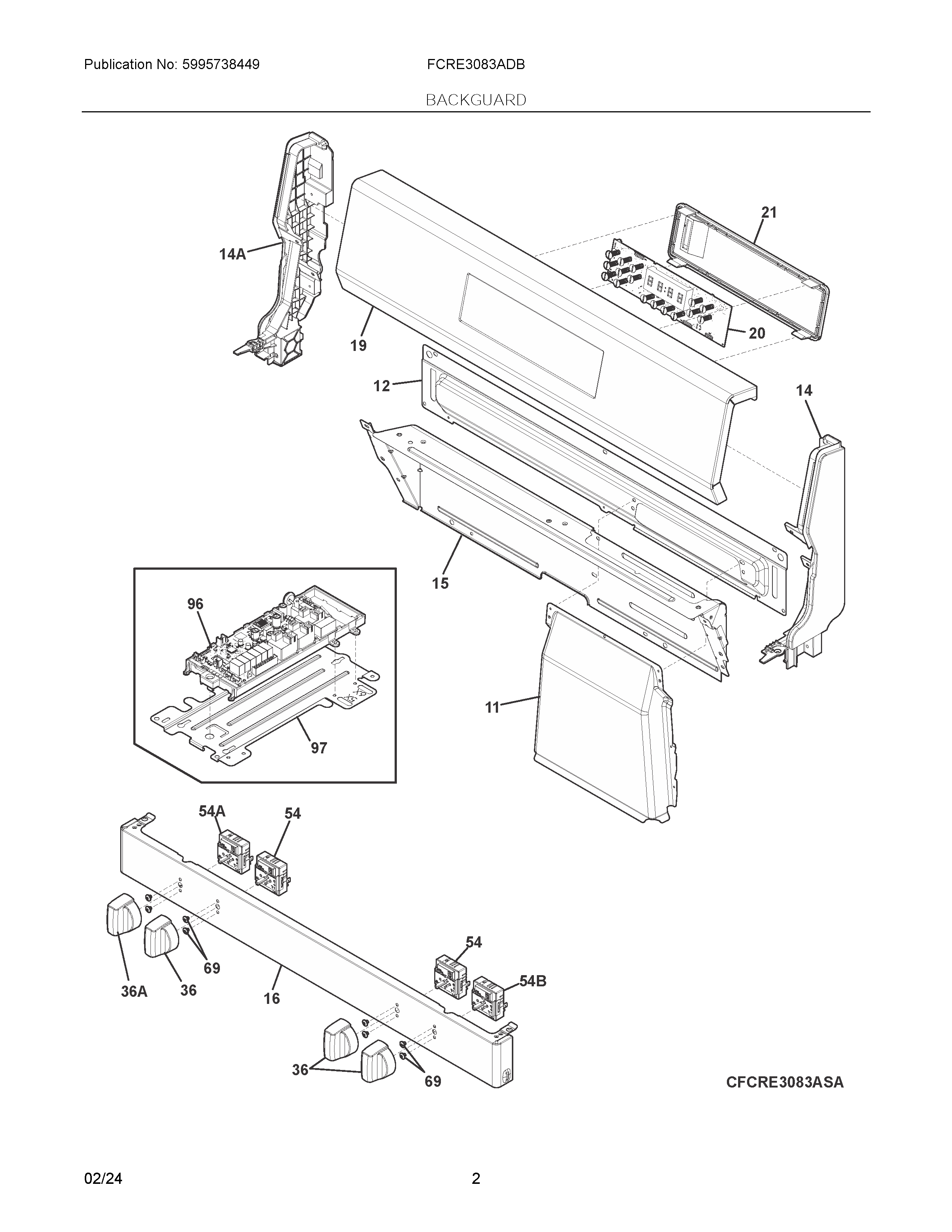

FCRE3083ADB 02 – BACKGUARD

Products

PositionProduct
NIHARNESS-ENERGY REGULATOR 5S
NIAWCI 5304528293
NI5304526533 Frigidaire Screw
NI5304526234 Frigidaire Screw
NI5304535309 Frigidaire Harness
NISCREW
11DUCT, UPPER EXHAUST, BLACK
12DIFFUSER, DUCT
14AEND CAP
14END CAP
15SHIELD, BACKGUARD, BLACK, INNER
16MANIFOLD PANEL, BLACK STAINLESS
195304535807 Frigidaire Control Panel Assembly
205304535311 Frigidaire Controller
215304534688 Frigidaire Cover
36AKNOB, INFINITE SWITCH, BLACK STAINLESS, DUAL
36KNOB, INFINITE SWITCH, BLACK STAINLESS, SINGLE
545304522966 Frigidaire Switch
54A5304522918 Frigidaire Oven Surface Element Switch
54B5304522965 Frigidaire Switch Assembly
695304526494 Frigidaire Screw
965304535108 Frigidaire PCB Board
97BRACKET, OVC BOARD
