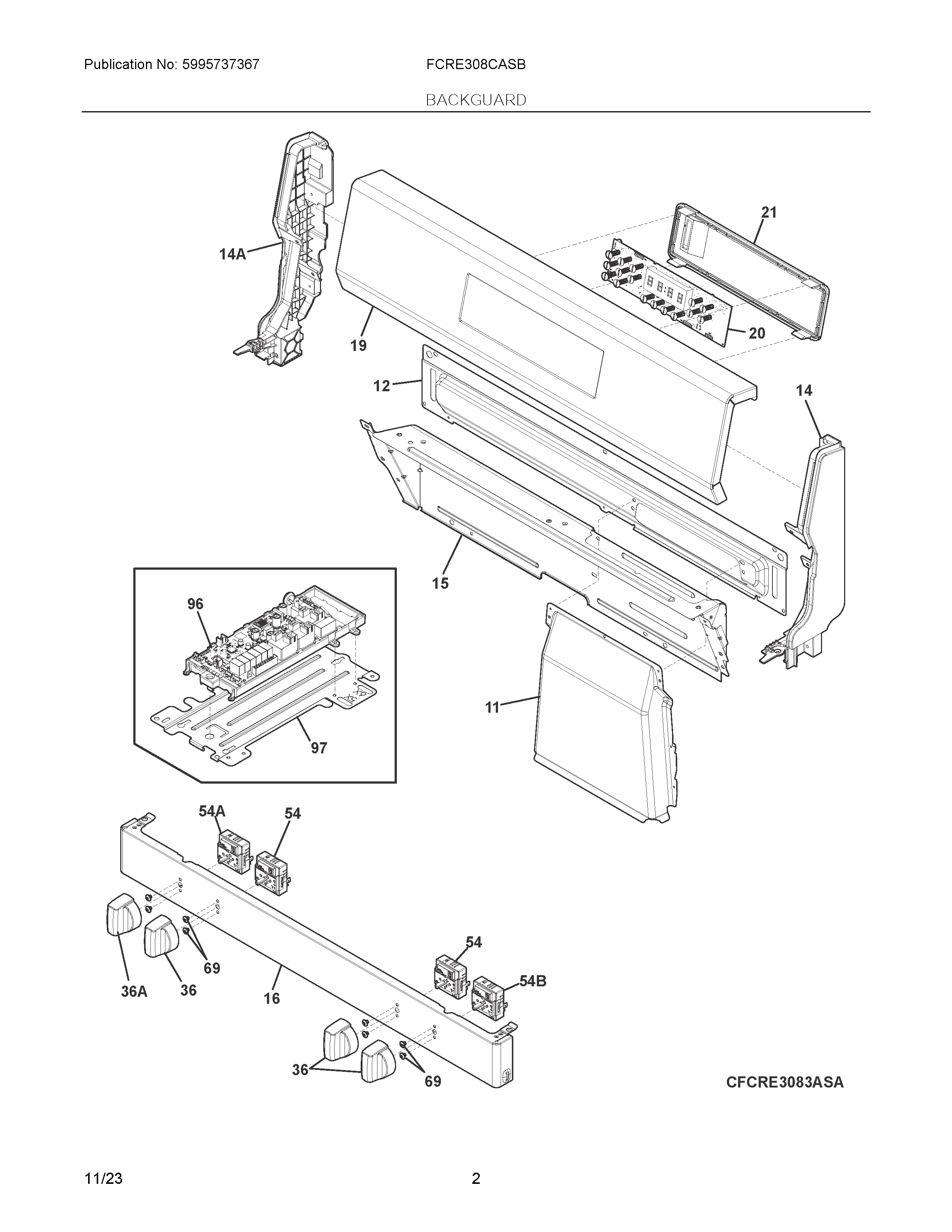

FCRE308CASB 02 – BACKGUARD

FCRE308CASB 02 – BACKGUARD

Written by

in

FCRE308CASB 02 – BACKGUARD

Products

PositionProduct
NIHARNESS-ENERGY REGULATOR 5S
NI5304535309 Frigidaire Harness
NISCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
NISCREW
NISCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
NIAWCI 5304528293
NI5304526234 Frigidaire Screw
11DUCT, UPPER EXHAUST, BLACK
12DIFFUSER, DUCT
14AEND CAP
14END CAP
15SHIELD, BACKGUARD, BLACK, INNER
16MANIFOLD PANEL
195304528251 Frigidaire Control Panel
205304535311 Frigidaire Controller
215304534688 Frigidaire Cover
365304528072 Frigidaire Knob Assembly
36A5304514117 Frigidaire Oven Control Knob
54B5304522965 Frigidaire Switch Assembly
545304522966 Frigidaire Switch
54A5304522918 Frigidaire Oven Surface Element Switch
695304526494 Frigidaire Screw
965304535108 Frigidaire PCB Board
97BRACKET, OVC BOARD
