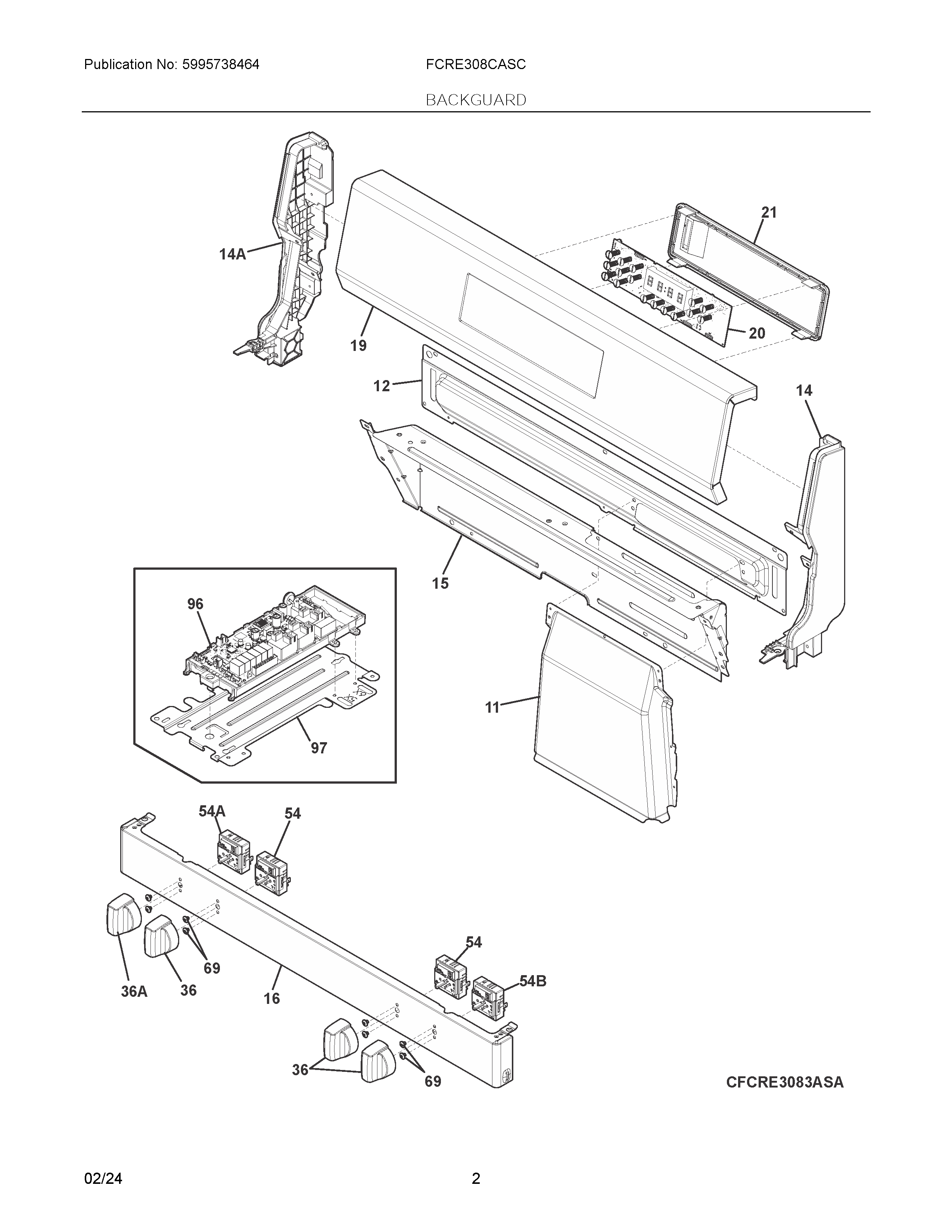

FCRE308CASC 02 – BACKGUARD

Products

Position	Product
NI	HARNESS-ENERGY REGULATOR 5S
NI	5304535309 Frigidaire Harness
NI	SCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
NI	SCREW
NI	SCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
NIA	WCI 5304528293
NI	5304526234 Frigidaire Screw
11	DUCT, UPPER EXHAUST, BLACK
12	DIFFUSER, DUCT
14A	END CAP
14	END CAP
15	SHIELD, BACKGUARD, BLACK, INNER
16	MANIFOLD PANEL
19	5304528251 Frigidaire Control Panel
20	5304535311 Frigidaire Controller
21	5304534688 Frigidaire Cover
36	5304528072 Frigidaire Knob Assembly
36A	5304514117 Frigidaire Oven Control Knob
54B	5304522965 Frigidaire Switch Assembly
54	5304522966 Frigidaire Switch
54A	5304522918 Frigidaire Oven Surface Element Switch
69	5304526494 Frigidaire Screw
96	5304535108 Frigidaire PCB Board
97	BRACKET, OVC BOARD
