FCRG3015ABC 03 – BURNER

FCRG3015ABC 03 – BURNER

Written by

in

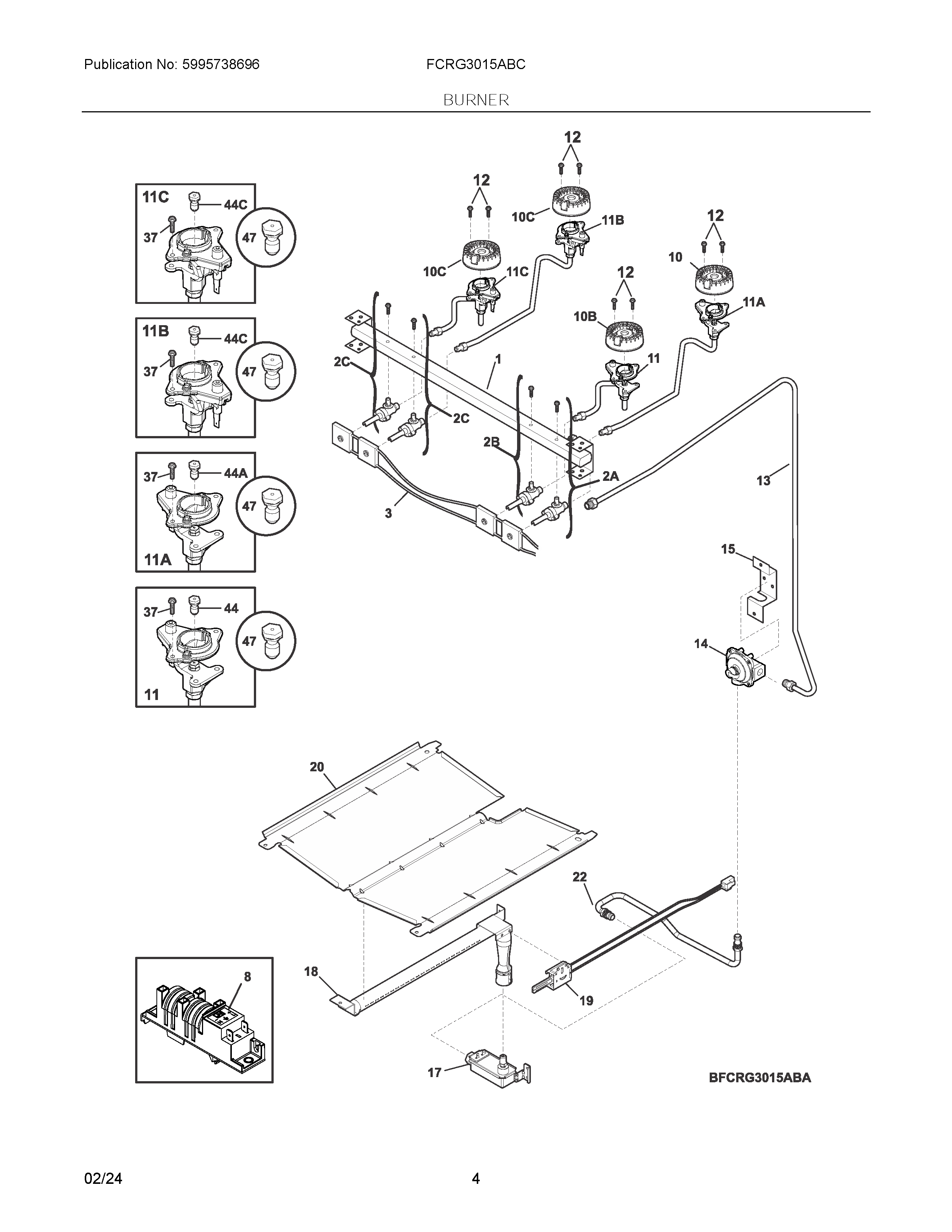

FCRG3015ABC 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NI5304535516 Frigidaire Range Harness-Igniter
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316089500 Frigidaire Oven Screw
NIA316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NIA316498100 Frigidaire Shield
NIB316257400 Frigidaire Oven Bracket
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
15304514361 Frigidaire Manifold
2C5304506548 Frigidaire Oven Valve
2B5304506549 Frigidaire Oven Valve
2A5304506547 Frigidaire Oven Valve
35304528829 Frigidaire Harness
8808608802 Frigidaire Oven Spark Ignition Four Pole
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10C316558300 Frigidaire Oven 9.5L Sealed Burner
11B316536602 Frigidaire Oven Igniter/Orifice Assembly
11316536614 Frigidaire Igniter/Orifice Assembly
11C316536600 Frigidaire Igniter Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
12316540900 Frigidaire Oven Screw
13316489100 Frigidaire Oven Tube
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
17316572800 Frigidaire Oven Valve Assembly
18316404400 Frigidaire Oven Burner
19BAKE IGNITOR
205304519024 Frigidaire Oven Baffle
225304520704 Frigidaire Tube
37316240600 Frigidaire Igniter Mounting Screw
44C316527502 Frigidaire Oven Orifice
44316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
