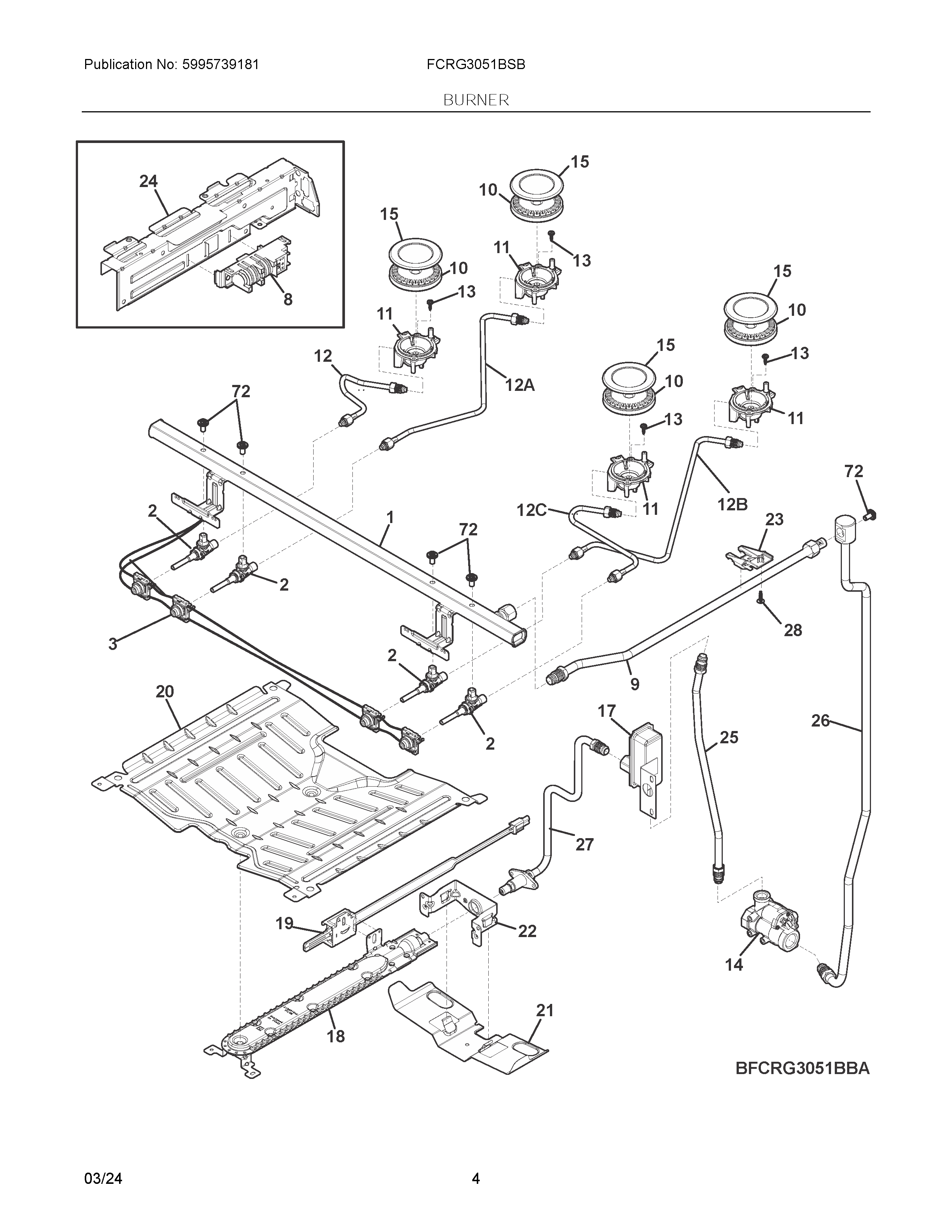

FCRG3051BSB 03 – BURNER

FCRG3051BSB 03 – BURNER

Written by

in

FCRG3051BSB 03 – BURNER

Products

PositionProduct
NIAWCI 349098702
NIA316001017 Frigidaire Screw
NIAWCI 5304528293
NI387856311 Frigidaire Screw
NI5304526533 Frigidaire Screw
NIGRLP5 Frigidaire Range Natural Gas to LP Propane Conversion Kit
1MANIFOLD, BURNER VALVES
25304507282 Frigidaire Oven Gas Valve
3HARNESS
8808608802 Frigidaire Oven Spark Ignition Four Pole
9TUBE, CONNECTION, MANIFOLD TO, REGULATOR TUBE
105304534816 Frigidaire Crown Assembly
11IGNITOR/ORIFICE, ASSEMBLY, 9.5K, MED
12TUBE, BURNER, LH FRONT
12ATUBE, BURNER, LH REAR
12BTUBE, BURNER, RH REAR
12CTUBE, BURNER, RH FRONT
13SCREW, T10 WASHR, M2.9 X 13
14316091711 Frigidaire Regulator Assembly
15354017017 Frigidaire CAP
175304533805 Frigidaire Valve
185304533840 Frigidaire Burner Assembly
195304534663 Frigidaire Igniter
20BAFFLE
21SHIELD, BAKE BRACKET
225304535280 Frigidaire Bracket
23BRACKET, TUBING
24BRACKET, HARNESS
255304534667 Frigidaire Tube
265304534673 Frigidaire Tube
275304534665 Frigidaire Tube Assembly
28WCI 5304534684
72SCREW
