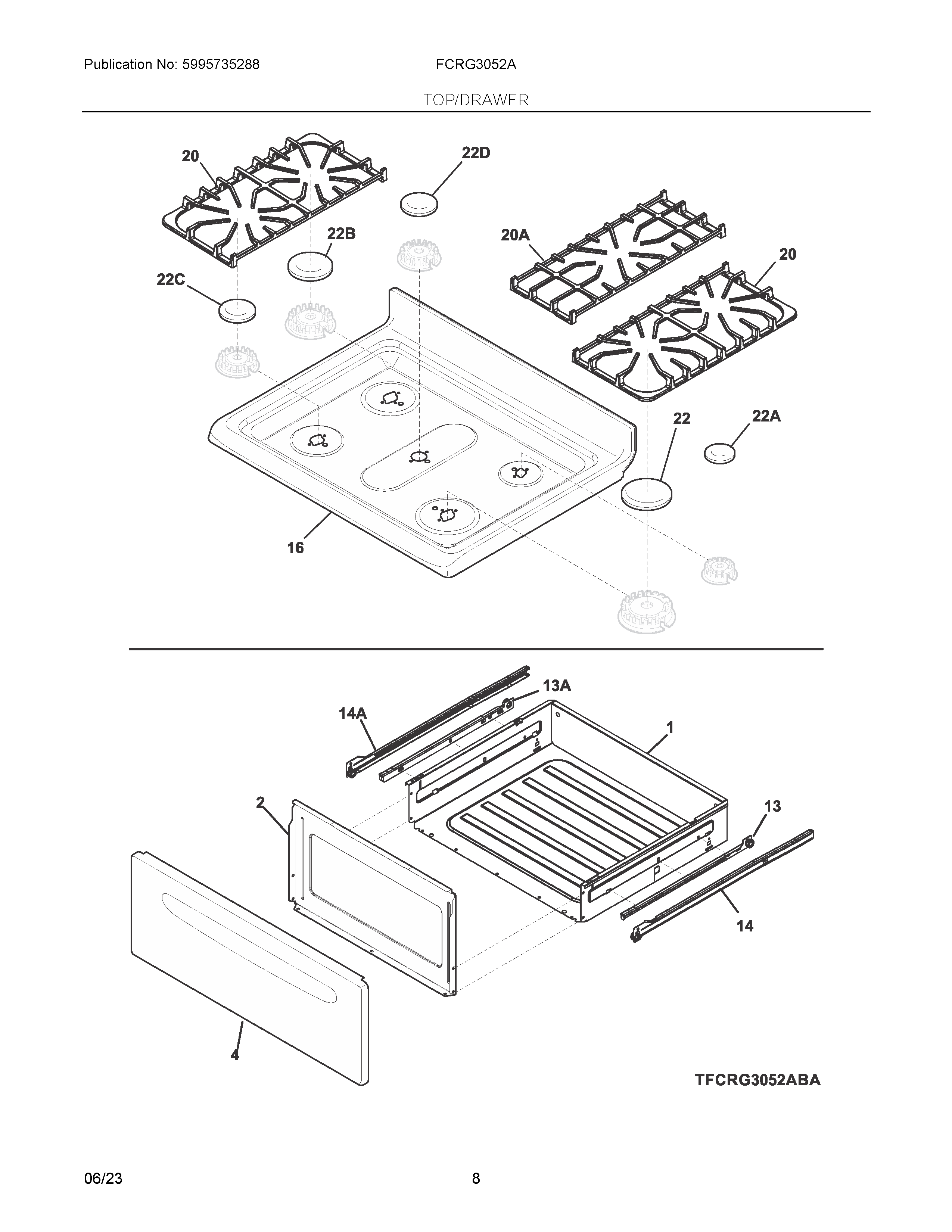

FCRG3052AWD 05 – TOP/DRAWER

FCRG3052AWD 05 – TOP/DRAWER

Written by

in

FCRG3052AWD 05 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316260800 Frigidaire Screw-SHOULDER
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527988 Frigidaire Liner
45304513124 Frigidaire Oven Control Panel
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A5304517903 Frigidaire Oven Glide Drawer
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
16316610005 Frigidaire Oven Maintop
20A5304526187 Frigidaire Grate
205304526186 Frigidaire Grate
20B5304526188 Frigidaire Grate
22B5304527844 Frigidaire Burner Cap
22C5304527843 Frigidaire Surface Burner Cap
22A5304524590 Frigidaire Burner Cap
225304527846 Frigidaire Surface Burner Cap
22D316559604 Frigidaire Oven Cap
