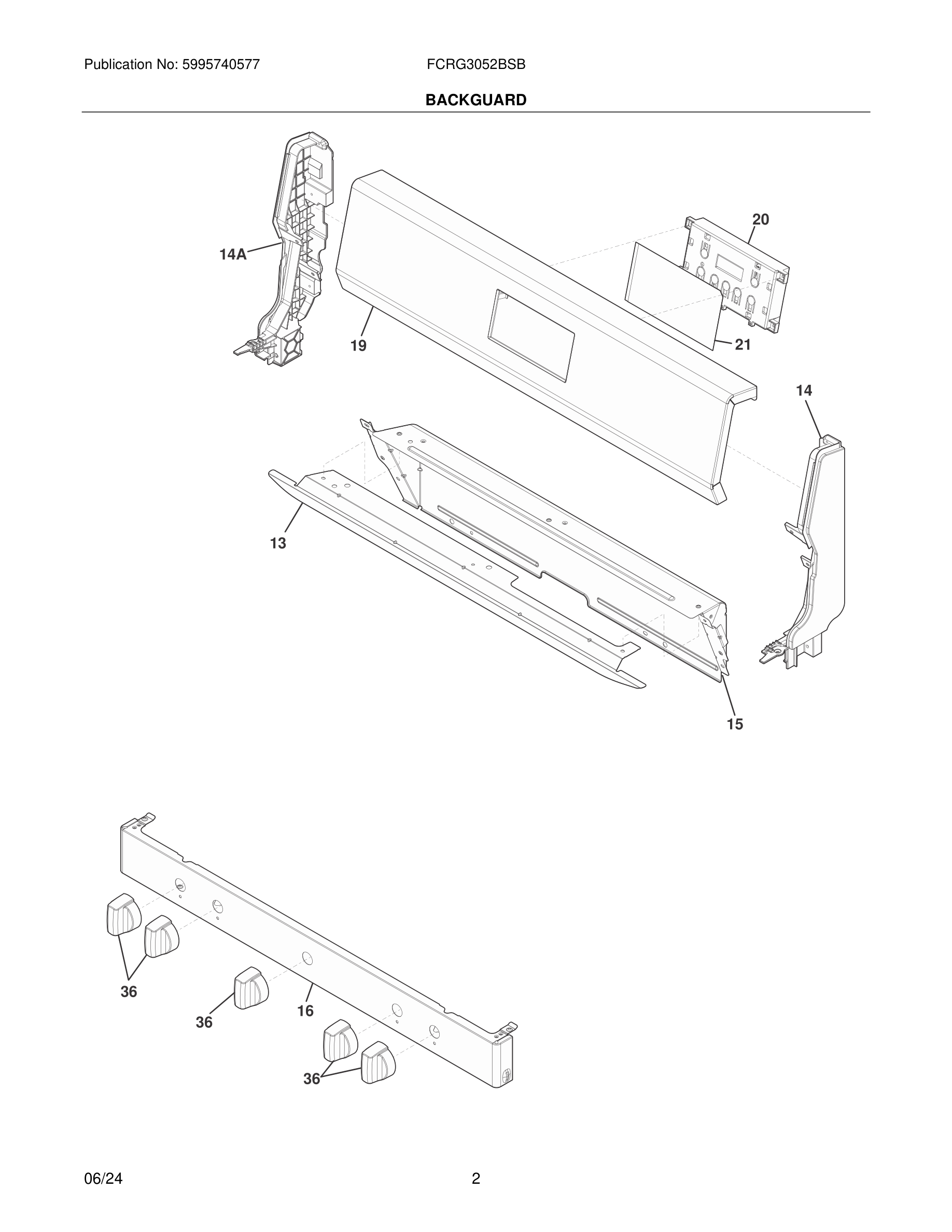

FCRG3052BSB 03 – BACKGUARD

FCRG3052BSB 03 – BACKGUARD

Written by

in

FCRG3052BSB 03 – BACKGUARD

Products

PositionProduct
*387856311 Frigidaire Screw
*5304526533 Frigidaire Screw
*5304526234 Frigidaire Screw
*SCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
*WCI 5304533472
*SCREW
135304526526 Frigidaire Deflector Assembly
14AEND CAP
14END CAP
15SHIELD, BACKGUARD, INNER
16PANEL, MANIFOLD, STAINLESS
19CONTROL PANEL, ASSEMBLY, STEEL/GLASS, STAINLESS/BLACK, W/CNTL BRACKET
20#5304536448 Frigidaire Controller Assembly
215304534804 Frigidaire Overlay Assembly
365304507386 Frigidaire Oven Control Knob
