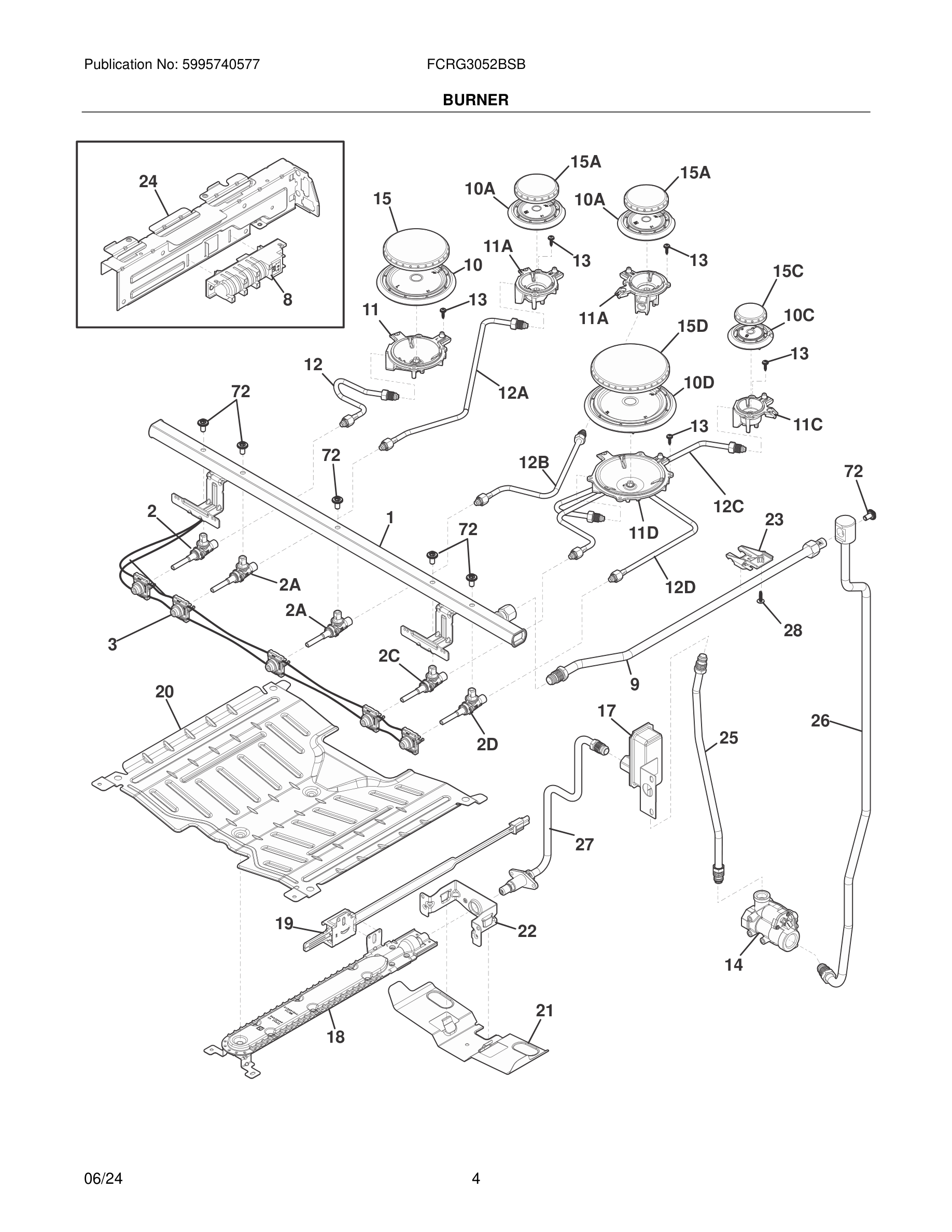

FCRG3052BSB 05 – BURNER

FCRG3052BSB 05 – BURNER

Written by

in

FCRG3052BSB 05 – BURNER

Products

PositionProduct
*387856311 Frigidaire Screw
1#5304528114 Frigidaire Manifold
2A#5304506548 Frigidaire Oven Valve
2D#5304507282 Frigidaire Oven Gas Valve
2C#5304506547 Frigidaire Oven Valve
2#5304506549 Frigidaire Oven Valve
3#5304533894 Frigidaire Harness
8*5304526533 Frigidaire Screw
8#SPARK MODULE
9#TUBE, CONNECTION, MANIFOLD TO, REGULATOR TUBE
10A5304533593 Frigidaire Range Crown
105304533618 Frigidaire Range Crown
10DCROWN,BURNER,XTRA LARGE
10C5304533592 Frigidaire Range Crown
11D#5304533611 Frigidaire Igniter/Orifice Assembly
11C#5304533582 Frigidaire Igniter/Orifice
11#5304533857 Frigidaire Igniter/Orifice
11A#5304533853 Frigidaire Igniter/Orifice
12C#TUBE, BURNER, RH REAR
12A#TUBE, BURNER, LH REAR
12D#TUBE, BURNER, RH FRONT
12#TUBE, BURNER, LH FRONT
12B#TUBE, BURNER, CENTER
13SCREW, T10 WASHR, M2.9 X 13
14#316091711 Frigidaire Regulator Assembly
14*WCI 349098702
15A5304533596 Frigidaire Range Cap
15C5304533595 Frigidaire Range Cap Assembly
15D5304533597 Frigidaire Range Cap Assembly
155304533619 Frigidaire Range Cap
17#5304533805 Frigidaire Valve
18#5304533840 Frigidaire Burner Assembly
19#5304534663 Frigidaire Igniter
20BAFFLE
21SHIELD, BAKE BRACKET
225304535280 Frigidaire Bracket
22*WCI 5304528293
23BRACKET, TUBING
24BRACKET, HARNESS
24*316001017 Frigidaire Screw
25#5304534667 Frigidaire Tube
26#5304534673 Frigidaire Tube
27#5304534665 Frigidaire Tube Assembly
28WCI 5304534684
72SCREW
