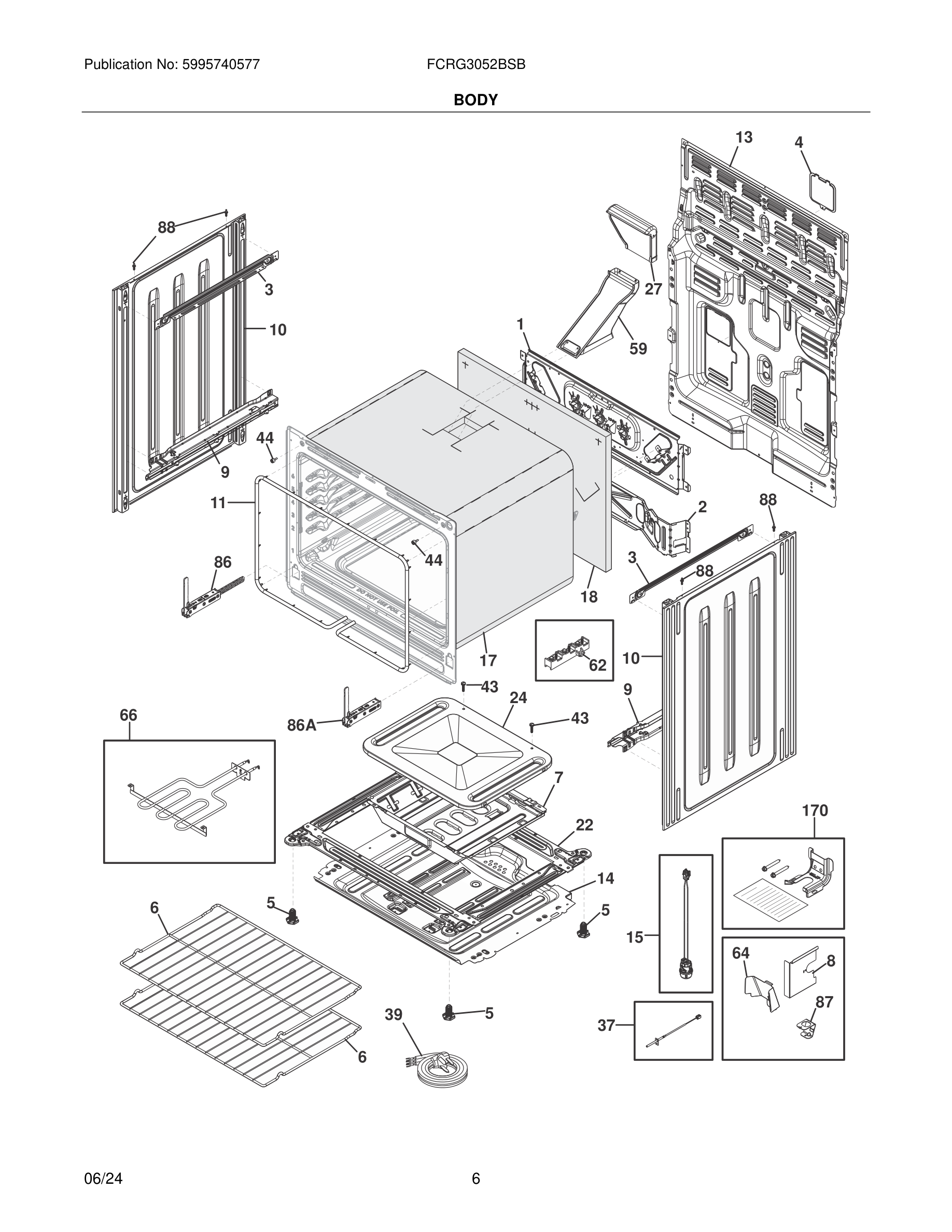

FCRG3052BSB 07 – BODY

FCRG3052BSB 07 – BODY

Written by

in

FCRG3052BSB 07 – BODY

Products

PositionProduct
*WCI 387872717
*SCREW, T20,
*SCREW, SELF DRILL, M3.5 X 9.5
*WCI 5304533472
*SCREW
*5304526533 Frigidaire Screw
*387856311 Frigidaire Screw
*WCI 5304536410
*#WCI 5304534808
1BRACKET
2BRACKET, COMPONENTS, LOWER
35304526493 Frigidaire Bracket
45304528328 Frigidaire Cover
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
65304531722 Frigidaire Rack
75304534661 Frigidaire Box
85304533923 Frigidaire Cover Assembly
95304528546 Frigidaire Receptacle
105304526334 Frigidaire Panel
115304526243 Frigidaire Seal
13*WCI 5304533495
13SHIELD, REAR WIRE
14SHIELD, INSULATION, LOWER
15#5304533411 Frigidaire Lamp Assembly
17INSULATION, WRAPPER
18INSULATION, OVEN BACK
22BASE RAIL, ASSEMBLY
245304535291 Frigidaire Bottom
27FLUE, COLLECTOR, ASSEMBLY
37#5304526310 Frigidaire Probe
39#5304534691 Frigidaire Cord
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
59FLUE, ASSEMBLY
62*316205500 Frigidaire Oven Nut
62#5303935271 Frigidaire Oven Terminal Block
645304528550 Frigidaire Shield
66#5304533847 Frigidaire Element Assembly
865304534789 Frigidaire Hinge
86A5304534790 Frigidaire Hinge
86*5304526532 Frigidaire Screw
87BRACKET, POWER CORD
88PIN, GUIDE
170316112010 Frigidaire Anti Tip Kit
