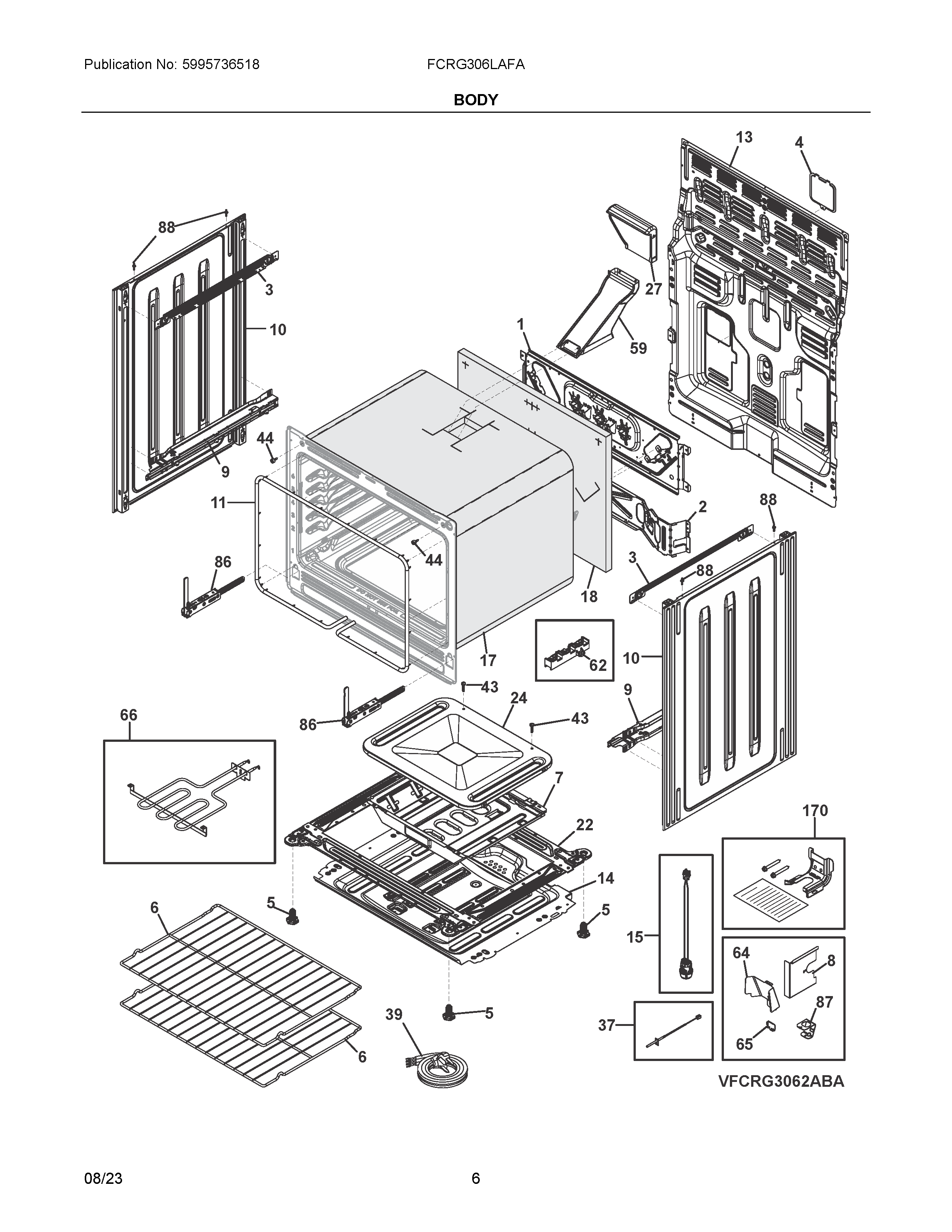

FCRG306LAFA 04 – BODY

Products

Position	Product
NI	STANDOFF, HARNESS, PLASTIC
NI	WCI 5304533472
NIA	WCI 5304533495
NI	SCREW
NI	SCREW, T20,
NI	SCREW, SELF DRILL, M3.5 X 9.5
NIA	5304526532 Frigidaire Screw
NI	5304526533 Frigidaire Screw
NI	387856311 Frigidaire Screw
NI	HARN
NI	WCI 387872717
NIB	316205500 Frigidaire Oven Nut
NIA	316001017 Frigidaire Screw
1	BRACKET
2	BRACKET, COMPONENTS, LOWER
3	5304526493 Frigidaire Bracket
4	5304528328 Frigidaire Cover
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	5304531722 Frigidaire Rack
7	5304534661 Frigidaire Box
8	5304533923 Frigidaire Cover Assembly
9	5304528546 Frigidaire Receptacle
10	5304526334 Frigidaire Panel
11	5304526243 Frigidaire Seal
13	SHIELD, REAR WIRE
14	SHIELD, INSULATION, LOWER
15	5304533411 Frigidaire Lamp Assembly
17	INSULATION, WRAPPER
18	INSULATION, OVEN BACK
22	BASE RAIL, ASSEMBLY
24	5304535291 Frigidaire Bottom
27	FLUE, COLLECTOR, ASSEMBLY
37	5304526310 Frigidaire Probe
39	5304534691 Frigidaire Cord
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
59	FLUE, ASSEMBLY
62	5303935271 Frigidaire Oven Terminal Block
64	5304528550 Frigidaire Shield
65	CLIP, POWER CORD
66	5304533847 Frigidaire Element Assembly
86	5304526279 Frigidaire Hinge
87	BRACKET, POWER CORD
88	PIN, GUIDE
170	316112010 Frigidaire Anti Tip Kit
