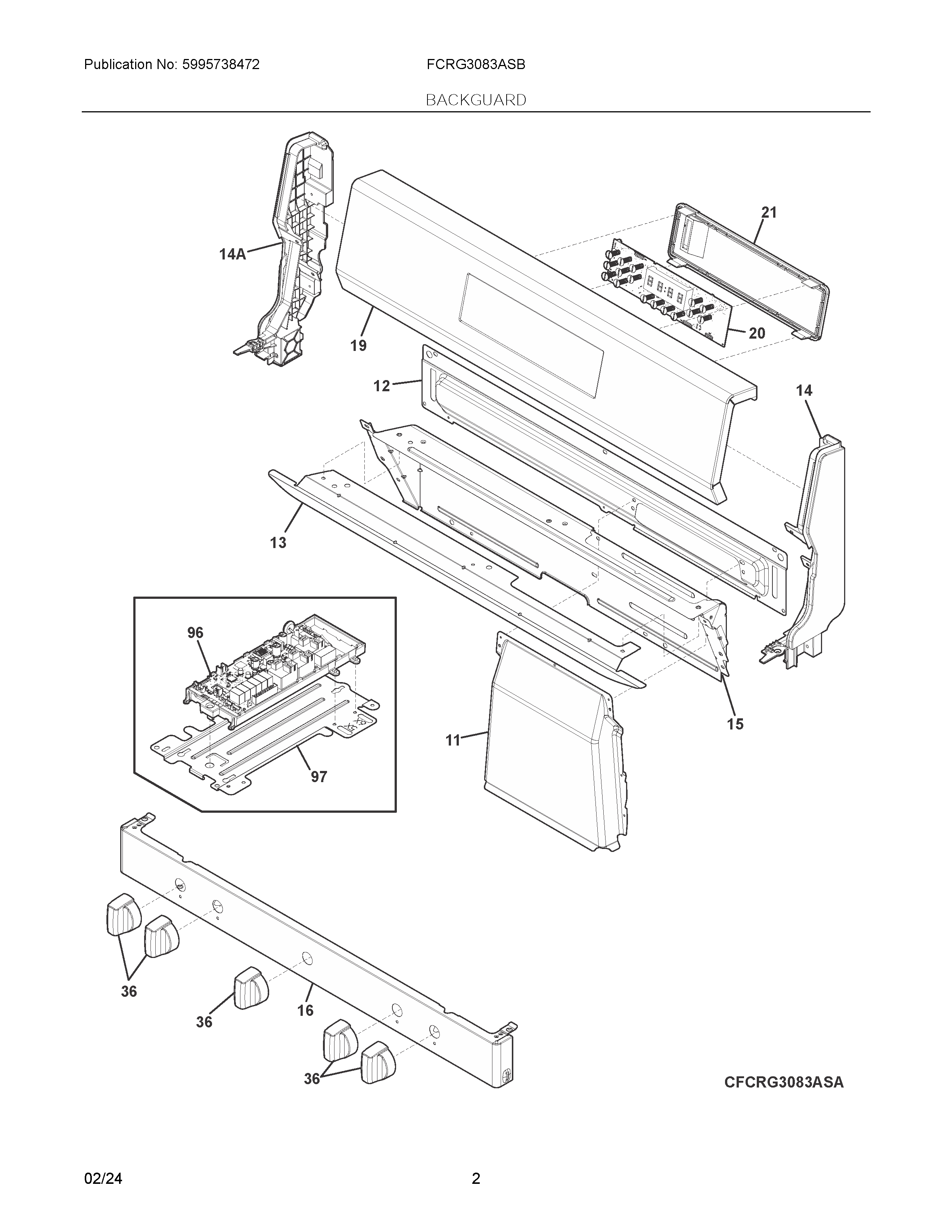

FCRG3083ASB 02 – BACKGUARD

FCRG3083ASB 02 – BACKGUARD

Written by

in

FCRG3083ASB 02 – BACKGUARD

Products

PositionProduct
NISCREW, #8-18 X 10
NIAWCI 5304528293
NI5304526234 Frigidaire Screw
NISCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
NI5304535309 Frigidaire Harness
NIASCREW
NISCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
11DUCT, UPPER EXHAUST, BLACK
12DIFFUSER, DUCT
135304526526 Frigidaire Deflector Assembly
14END CAP
14AEND CAP
15SHIELD, BACKGUARD, BLACK, INNER
165304528481 Frigidaire Panel
195304528252 Frigidaire Control Panel
205304535352 Frigidaire Controller
215304534688 Frigidaire Cover
365304509064 Frigidaire Oven Knob
965304535108 Frigidaire PCB Board
97BRACKET, OVC BOARD
