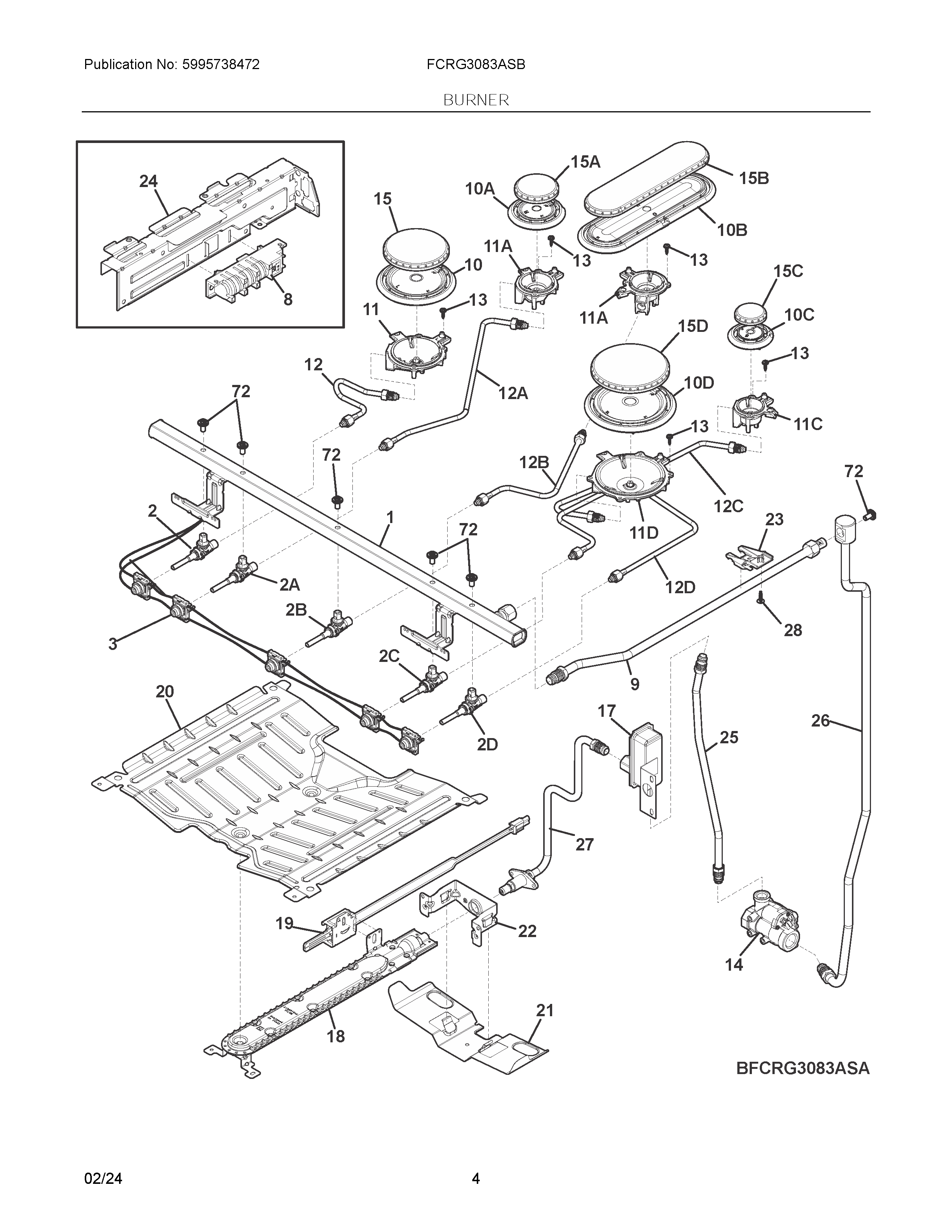

FCRG3083ASB 03 – BURNER

FCRG3083ASB 03 – BURNER

Written by

in

FCRG3083ASB 03 – BURNER

Products

PositionProduct
NISCREW, T-20 ST, 8-24 X 5/8
NIA316001017 Frigidaire Screw
NIAWCI 349098702
NIA5304526533 Frigidaire Screw
NI387856311 Frigidaire Screw
NIAWCI 5304528293
15304528114 Frigidaire Manifold
2B5304506551 Frigidaire Oven Valve
2D5304507282 Frigidaire Oven Gas Valve
2A5304506548 Frigidaire Oven Valve
25304506549 Frigidaire Oven Valve
2C5304506547 Frigidaire Oven Valve
35304533894 Frigidaire Harness
8SPARK MODULE
95304526248 Frigidaire Tube
10BBURNER CROWN 10K OVAL
10A5304533593 Frigidaire Range Crown
10C5304533592 Frigidaire Range Crown
10DCROWN,BURNER,XTRA LARGE
105304533618 Frigidaire Range Crown
11A5304533853 Frigidaire Igniter/Orifice
115304533857 Frigidaire Igniter/Orifice
11D5304533611 Frigidaire Igniter/Orifice Assembly
11C5304533582 Frigidaire Igniter/Orifice
12CTUBE, BURNER, RH REAR
12BTUBE, BURNER, CENTER
12TUBE, BURNER, LH FRONT
12ATUBE, BURNER, LH REAR
12DTUBE, BURNER, RH FRONT
13BOLT, 9X13MM T10
14316091711 Frigidaire Regulator Assembly
15B5304534690 Frigidaire Cap
15C5304533595 Frigidaire Range Cap Assembly
15D5304533597 Frigidaire Range Cap Assembly
15A5304533596 Frigidaire Range Cap
155304533619 Frigidaire Range Cap
175304533805 Frigidaire Valve
185304533840 Frigidaire Burner Assembly
195304534663 Frigidaire Igniter
20BAFFLE
21SHIELD, BAKE BRACKET
225304535280 Frigidaire Bracket
23BRACKET, TUBING
24BRACKET, HARNESS
255304534667 Frigidaire Tube
265304534673 Frigidaire Tube
275304534665 Frigidaire Tube Assembly
28WCI 5304534684
72SCREW
