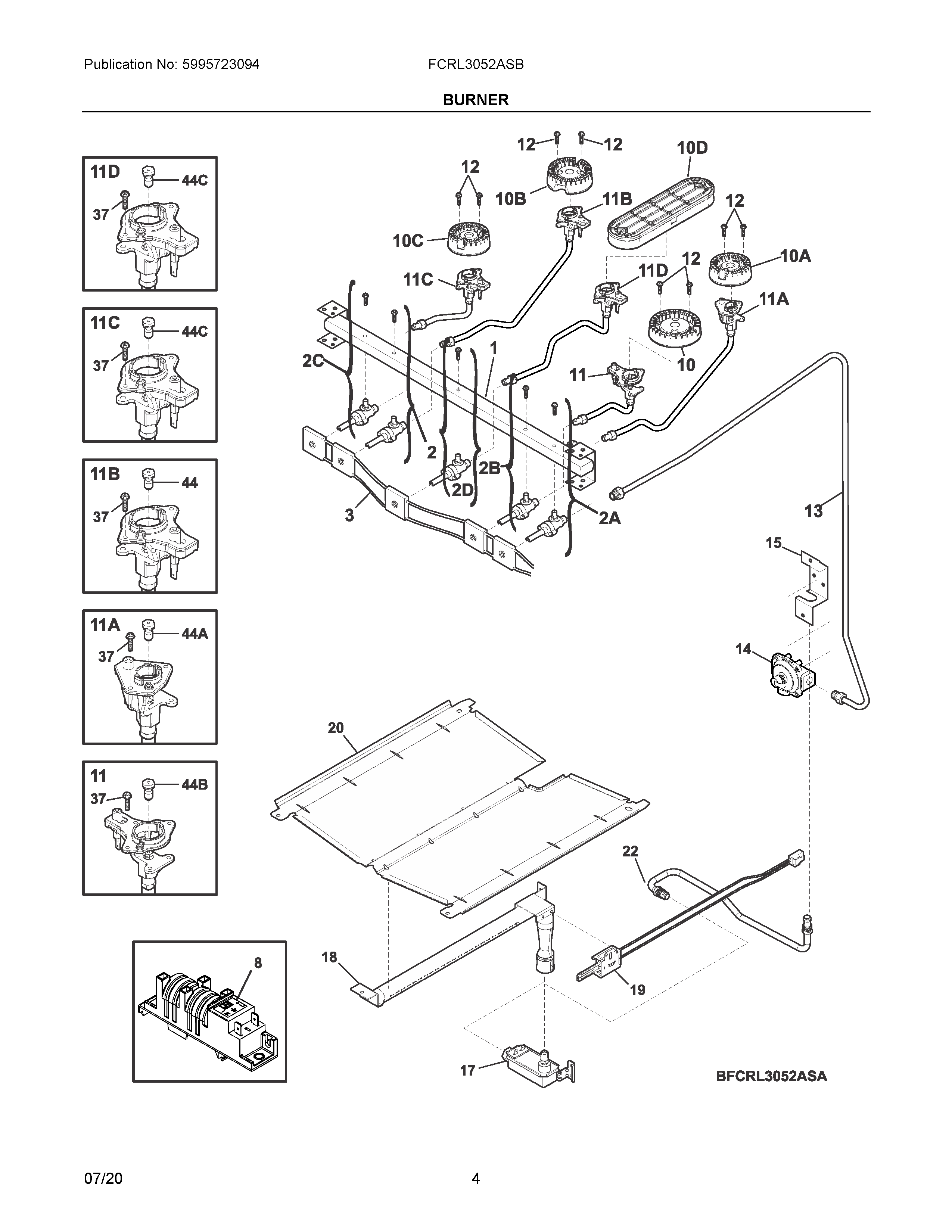

FCRL3052ASB 03 – BURNER

FCRL3052ASB 03 – BURNER

Written by

in

FCRL3052ASB 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NIB5304505563 Frigidaire Oven Wire
NI316089500 Frigidaire Oven Screw
NIA316021109 Frigidaire Oven Screw
NI5304494425 Frigidaire Oven Harness
NI316260800 Frigidaire Screw-SHOULDER
NIA316498100 Frigidaire Shield
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
15304513540 Frigidaire Oven Manifold
2WCI 5304506554
2A5304506552 Frigidaire Valve
2BWCI 5304507061
2DWCI 5304507062
2C5304506553 Frigidaire Valve
35304527991 Frigidaire Harness
8SPARK MODULE
10B316438000 Frigidaire Sealed Burner 12K Assembly
10D316559300 Frigidaire Oven Burner
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10316438400 Frigidaire Range Sealed Burner, 16/17K
11B316536613 Frigidaire Igniter/Orifice Assembly
11AWCI 316536611
11WCI 316536620
11D316536624 Frigidaire Igniter Orifice Assembly
11C316536606 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13316489101 Frigidaire Suppl Tube-Manifold
14REGULATOR, PRESSURE, LP
15316091600 Frigidaire Oven Bracket
17VALVE, SAFETY
18316404400 Frigidaire Oven Burner
19BAKE IGNITOR
205304519024 Frigidaire Oven Baffle
225304520704 Frigidaire Tube
37316240600 Frigidaire Igniter Mounting Screw
44B316527503 Frigidaire Oven Orifice
44316527507 Frigidaire Oven Orifice
44A316527505 Frigidaire Oven Orifice
44C316527501 Frigidaire Oven Orifice
