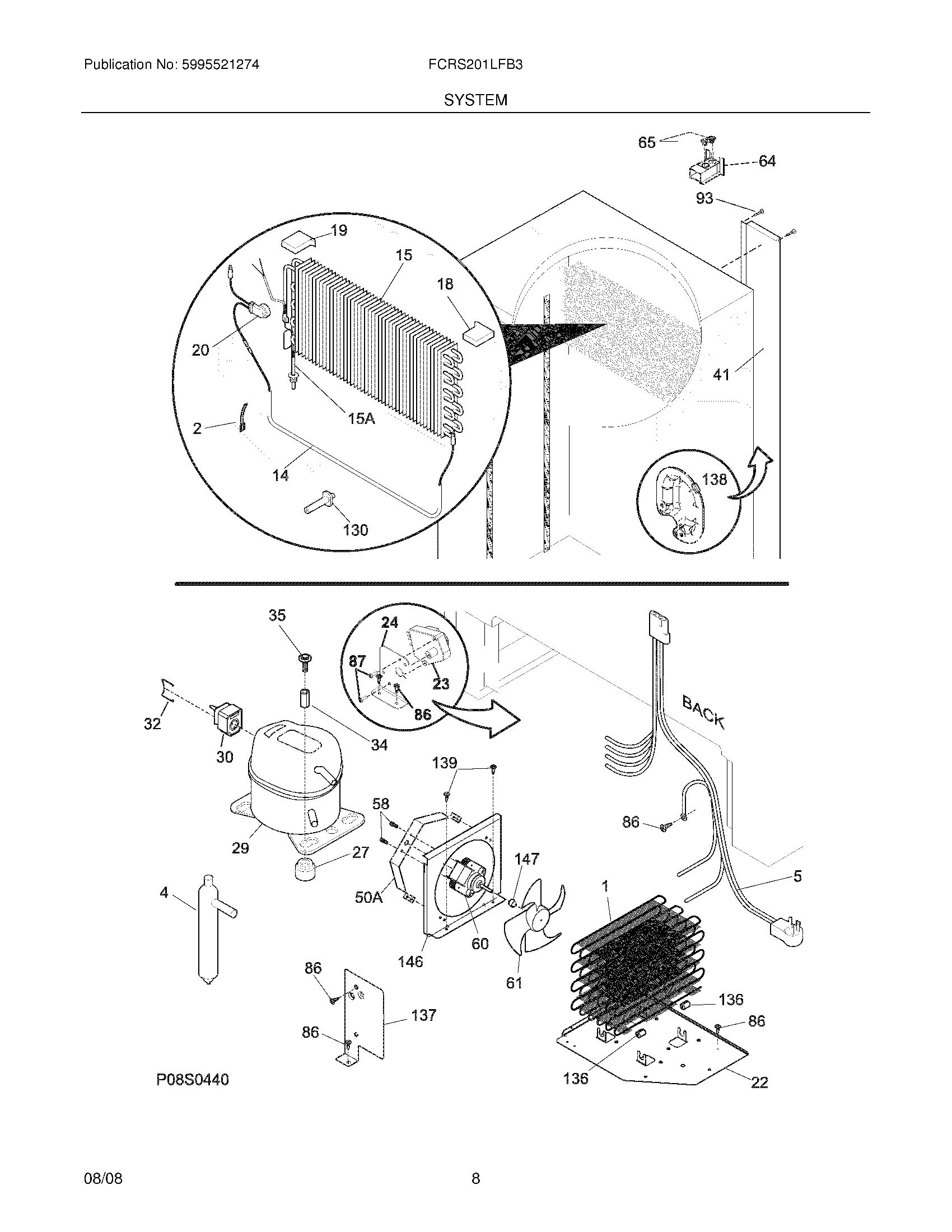

FCRS201LFB3 07 – SYSTEM

Products

Position	Product
NI	WCI 297082300
NI	297315800 Frigidaire Refrigerator Clip
NI	WCI 297102800
1	WCI 216970100
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 297069200
14	216730700 Frigidaire Refrigerator Defrost Heater
15A	WCI 216424200
15	297311300 Frigidaire Freezer Evaporator Assembly
18	WCI 297078700
19	WCI 297078800
20	DEFROST THERMOSTAT
22	WCI 216970301
23	5304518034 Frigidaire Refrigerator Defrost Timer
24	WCI 216968501
27	216498900 Frigidaire Refrigerator Grommet
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 297051000
32	CLAMP, ELEC CONT MTG, COMPRESSOR
34	SLEEVE-COMPRESSOR
35	WCI 5304460607
41	WCI 297070700
50A	WCI 240524001
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
60	CONDENSER FAN MOTOR KIT
61	240524102 Frigidaire Refrigerator Condenser Fan Blade
64	WCI 216578800
65	Valve,breather ,door base
86	216036601 Frigidaire Refrigerator Screw
87	SCREW
93	216858001 Frigidaire Refrigerator Screw
130	297244700 Frigidaire Refrigerator Support
136	240405201 Frigidaire Refrigerator Grommet
137	WCI 297090300
138	COVER-DRAIN HOSE
139	216337701 Frigidaire Refrigerator Screw
146	WCI 216970200
