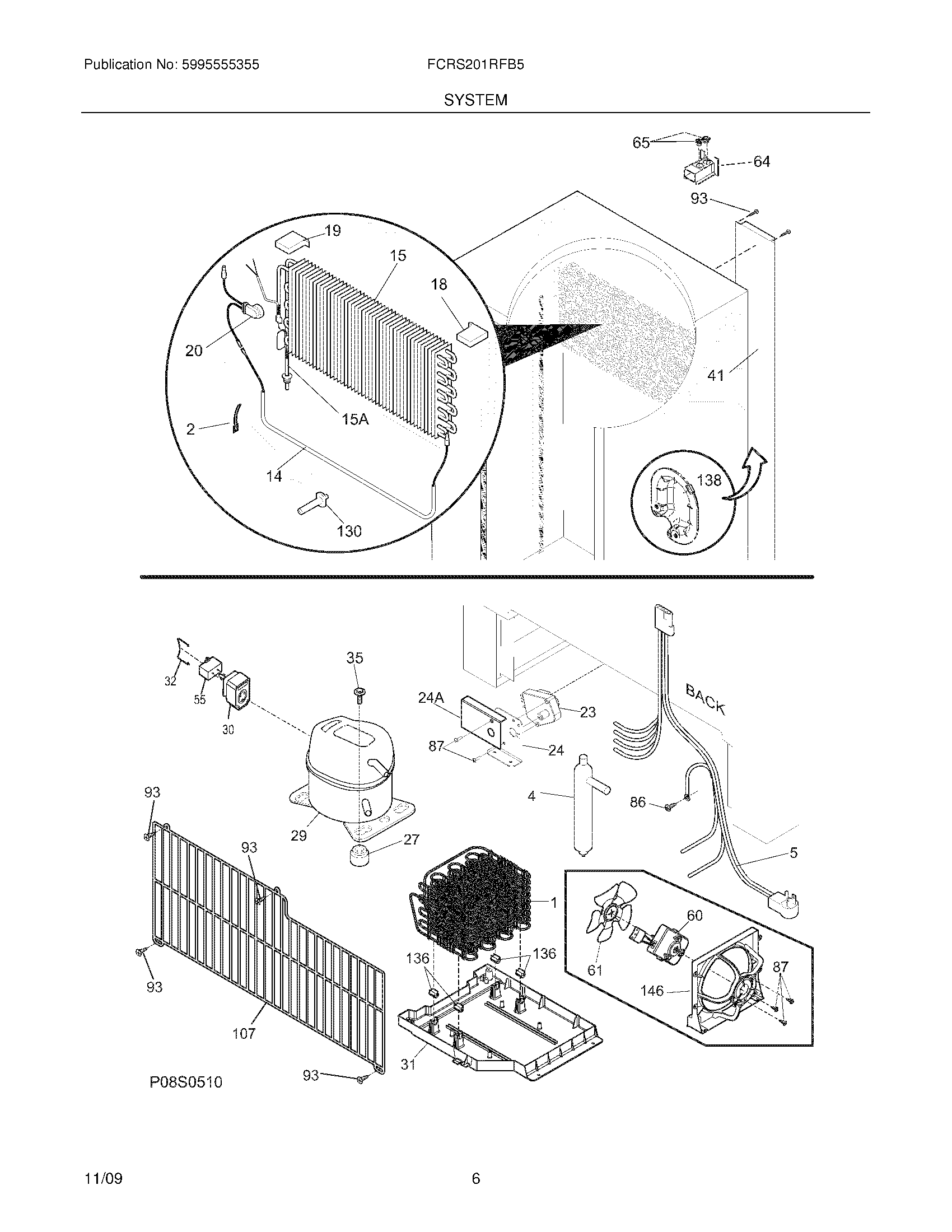

FCRS201RFB5 07 – SYSTEM

Products

Position	Product
NI	WCI 5303311565
NI	297111000 Frigidaire Standoff
NI	297315800 Frigidaire Refrigerator Clip
NI	297366805 Frigidaire Refrigerator Cord
NI	GROMMET-SPACER
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI	241853202 Frigidaire Refrigerator Screw
NI	WCI 297082300
1	297152201 Frigidaire Refrigerator Condenser
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 297170600
14	216730700 Frigidaire Refrigerator Defrost Heater
15	297311300 Frigidaire Freezer Evaporator Assembly
15A	WCI 297219300
18	297078701 Frigidaire Refrigerator Insulator-Evaporator
19	297078801 Frigidaire Refrigerator Evaporator Insulator
20	DEFROST THERMOSTAT
23	5304518034 Frigidaire Refrigerator Defrost Timer
24A	WCI 297207900
24	WCI 216968501
27	218513300 Frigidaire Refrigerator Compressor Mount Grommet
29	5304475102 Frigidaire Refrigerator Compressor Kit
30	216954228 Frigidaire Refrigerator Controller
31	WCI 297165801
32	216954300 Frigidaire Refrigerator Clip
35	WCI 240491503
41	WCI 297070700
55	5304464438 Frigidaire Compressor Run Capacitor
60	297279500 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
64	WCI 216578800
65	Valve,breather ,door base
86	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
107	WCI 297225501
130	297244700 Frigidaire Refrigerator Support
136	240405201 Frigidaire Refrigerator Grommet
138	COVER-DRAIN HOSE
146	216337701 Frigidaire Refrigerator Screw
146	WCI 297164000
