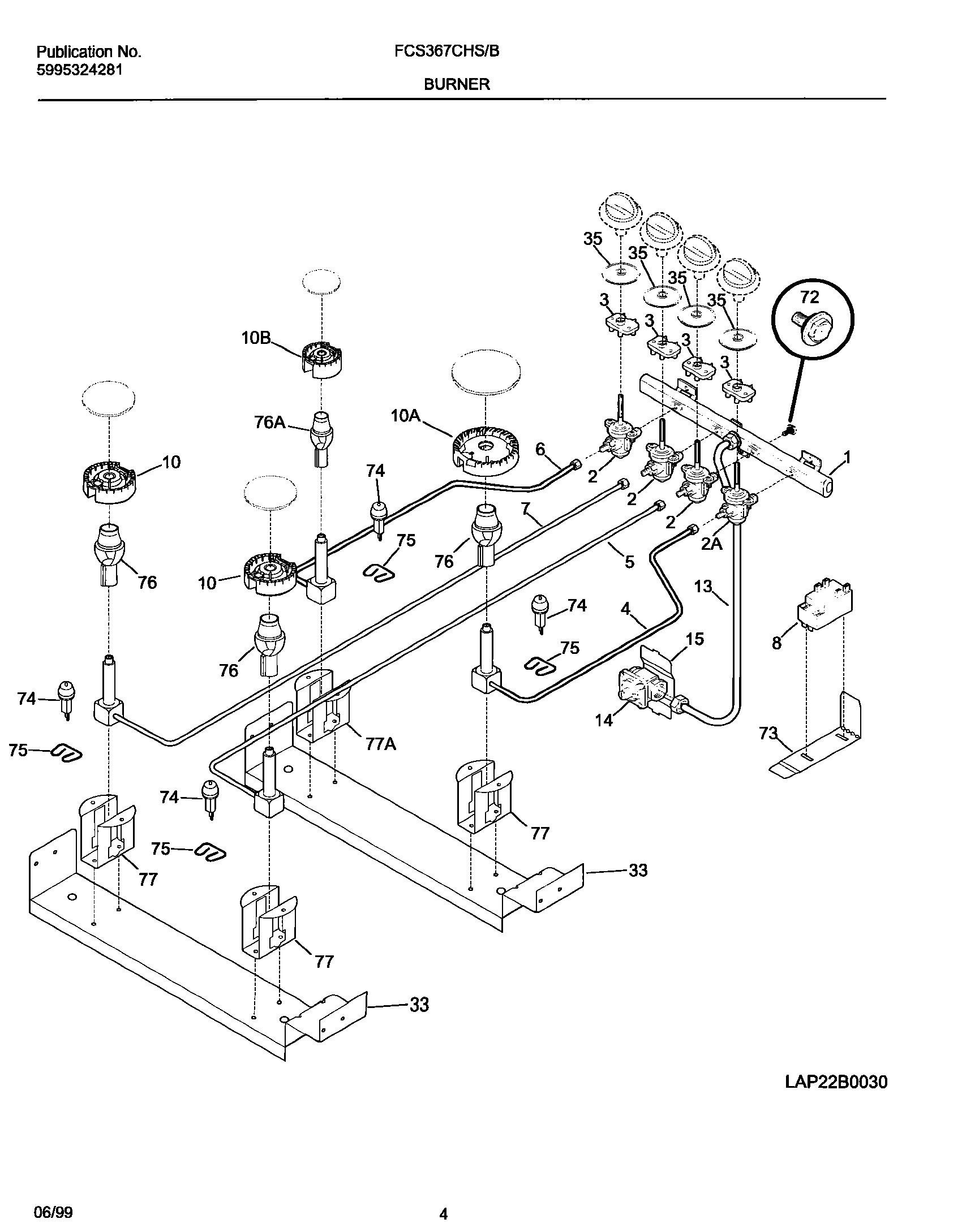

FCS367CHBA 05 – BURNER

FCS367CHBA 05 – BURNER

Written by

in

FCS367CHBA 05 – BURNER

Products

PositionProduct
NIWCI 318127412
NI08002868 Frigidaire 0 Screw Assembly
1WCI 318177301
2AWCI 318087001
2WCI 5303935042
3SWITCH-IGNITOR
4Tube,burner ,RF
5Tube,burner ,LF
6Tube,burner ,RR
7Tube,burner ,LR
85304505695 Frigidaire Oven Module
10BWCI 318148000
10AWCI 318148002
10WCI 318148001
13WCI 318054503
14WCI 318122700
15Bracket,regulator
33Bracket,burner
35WCI 318146300
72WCI 5303323141
73Plate,spark module
74318148700 Frigidaire Igniter P1
75WCI 318148800
76318167801 Frigidaire Oven Tube
76AWCI 318167800
77WCI 318112010
77AWCI 318112000
