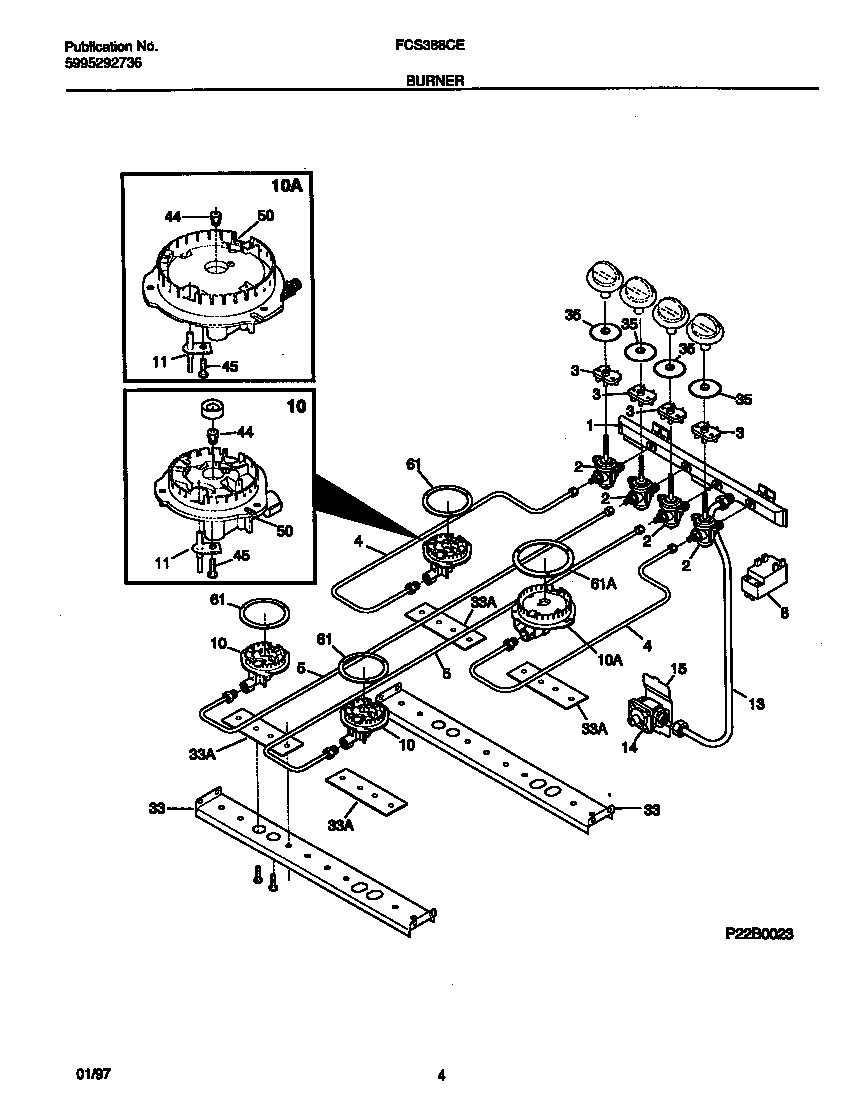

FCS388CEBA 03 – BURNER

FCS388CEBA 03 – BURNER

Written by

in

FCS388CEBA 03 – BURNER

Products

PositionProduct
*9076508002868 Frigidaire 0 Screw Assembly
*90764SCREW, 8 X 5/8, SPARK MODULE
*90767WCI 318065000
*90769SCREW, METRIC
*90763WCI 318127400
*90768Plate,spark module
*90766WCI 318038400
1WCI 318078001
2C316048200 Frigidaire Oven Screw
2BVALVE-TOP BURNER, SMALL, W/SCREW(3)
2AWCI 316036801
3SWITCH-IGNITOR
4TUBE-BURNER
5TUBE-BURNER
85304505695 Frigidaire Oven Module
10BURNER ASSY
10BURNER ASSY
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 318054503
14WCI 318122700
15WCI 318122600
33WCI 5303307977
33BRACKET-BURNER MTG
35WCI 5303307978
44BORIFICE-TOP BURNER, (4)
44AORIFICE-TOP BURNER/ORIFICE
45WCI 316011100
50A316010601 Frigidaire Top Burner
50BWCI 316010700
61TRIM RING CHROME
61TRIM RING LARGE
