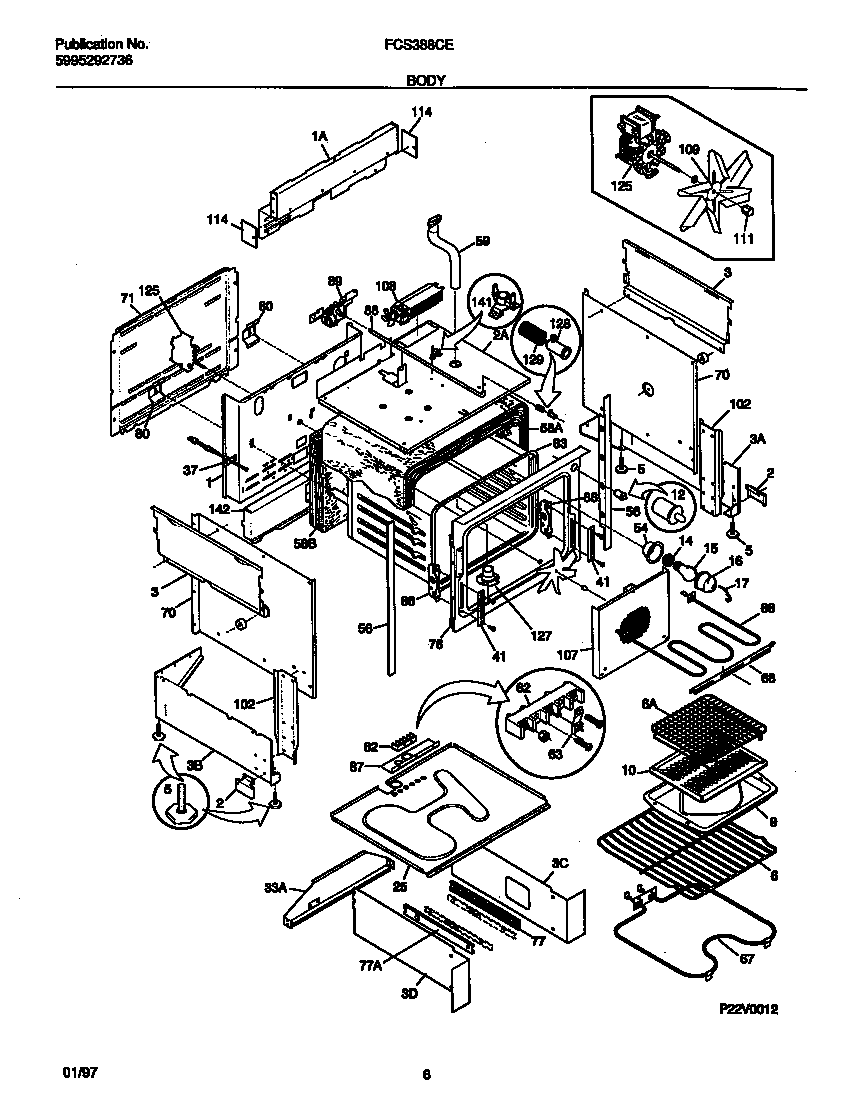

FCS388CEBA 04 – BODY

FCS388CEBA 04 – BODY

Written by

in

FCS388CEBA 04 – BODY

Products

PositionProduct
*90776WCI 318143700
*90782WCI 5303320846
*907785300803416 Frigidaire Dishwasher Screw
*90772WCI 318038400
*90783WCI 5303321212
*90779WCI 5303304030
*907865303307980 Frigidaire Oven Screw
*90785SWITCH, THERMAL CUTOUT
*907805304464772 Frigidaire Refrigerator Wire Tie
*907775303211311 Frigidaire Refrigerator Screw
*90781WCI 5303311207
*90775WCI 318113400
*90784WCI 318005101
*90771SPACER-T.C.O. (NON-ILLUSTRATED)
*90774WCI 318077600
*90773WCI 318073900
*90770Clip,insulator
1WCI 318066400
1WCI 5303311161
2WCI 5303311158
2SHIELD-TOE (2)
3PANEL-SIDE RH
3WCI 5303300143
3WCI 318143303
3WCI 318143302
3PANEL-SIDE LH
5BWCI 3203575
5CWCI 3203576
6318025314 Frigidaire Oven Rack
6Shelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
25WCI 318121303
33WCI 318143200
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37A316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-OVEN FRONT,BLACK
58WCI 5303310538
58INSULATION WRAPPER
59WCI 318072502
62B316205500 Frigidaire Oven Nut
62A5304409888 Frigidaire Oven Terminal Block with Hardware
63WCI 5303310517
66318255605 Frigidaire Oven Broil Element Range
67BWCI 5303320681
67ABAKE ELEMENT
68WCI 5303307563
70WCI 5303300142
71WCI 5303310515
76WCI 318124100
77RAIL-DRAWER,LH,OUTER
77Rail,drawer ,RH outer
80WCI 5303301261
83WCI 318089603
86WCI 5303310524
87WCI 318111800
88WCI 5303311160
89318095956 Frigidaire Oven Motor
102WCI 5303311142
107WCI 318119600
108WCI 318073001
109WCI 318137400
111AWCI 318137700
111BWCI 318137600
114PLATE-FILLER
125WCI 318137100
127BWCI 5303311195
127A318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
141Thermostat,safety ,for fan
142WCI 5303310541
