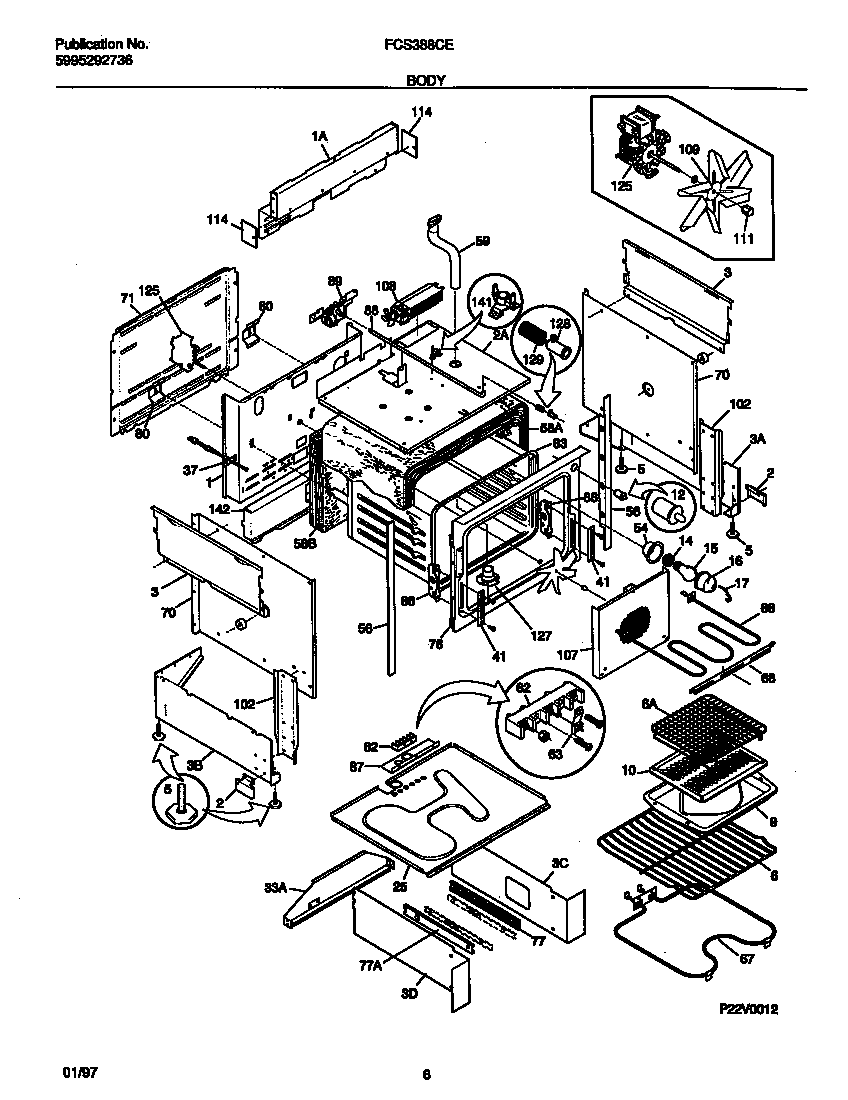

FCS388CESB 04 – BODY

FCS388CESB 04 – BODY

Written by

in

FCS388CESB 04 – BODY

Products

PositionProduct
*90773WCI 318073900
*907785300803416 Frigidaire Dishwasher Screw
*90776WCI 318143700
*90783WCI 5303321212
*90779WCI 5303304030
*90775WCI 318113400
*90784WCI 318005101
*907775303211311 Frigidaire Refrigerator Screw
*907805304464772 Frigidaire Refrigerator Wire Tie
*90785SWITCH, THERMAL CUTOUT
*907865303307980 Frigidaire Oven Screw
*90782WCI 5303320846
*90771SPACER-T.C.O. (NON-ILLUSTRATED)
*90781WCI 5303311207
*90774WCI 318077600
*90770Clip,insulator
*90772WCI 318038400
1WCI 5303311161
1WCI 318066400
2WCI 5303311158
2SHIELD-TOE (2)
3WCI 318143302
3WCI 5303300143
3PANEL-SIDE RH
3PANEL-SIDE LH
3WCI 318143303
5BWCI 3203575
5CWCI 3203576
6Shelf,broiler pan
6318025314 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
25WCI 318121303
33WCI 318143200
37A316217002 Frigidaire Oven Temperature Probe
37BPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
41WCI 5303310526
54WCI 5303310514
56WCI 318002602
58WCI 5303310538
58INSULATION WRAPPER
59WCI 318072502
62A5304409888 Frigidaire Oven Terminal Block with Hardware
62B316205500 Frigidaire Oven Nut
63WCI 5303310517
66318255605 Frigidaire Oven Broil Element Range
67BWCI 5303320681
67ABAKE ELEMENT
68WCI 5303307563
70WCI 5303300142
71WCI 5303310515
76WCI 318124100
77RAIL-DRAWER,LH,OUTER
77Rail,drawer ,RH outer
80WCI 5303301261
83WCI 318089603
86WCI 5303310524
87WCI 318111800
88WCI 5303311160
89318095956 Frigidaire Oven Motor
102WCI 5303311142
107WCI 318119600
108WCI 318073001
109WCI 318137400
111AWCI 318137700
111BWCI 318137600
114PLATE-FILLER
125WCI 318137100
127A318317100 Frigidaire Adapter Assembly
127BWCI 5303311195
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
141Thermostat,safety ,for fan
142WCI 5303310541
