FCS388CESB 06 – TOP/DRAWER

FCS388CESB 06 – TOP/DRAWER

Written by

in

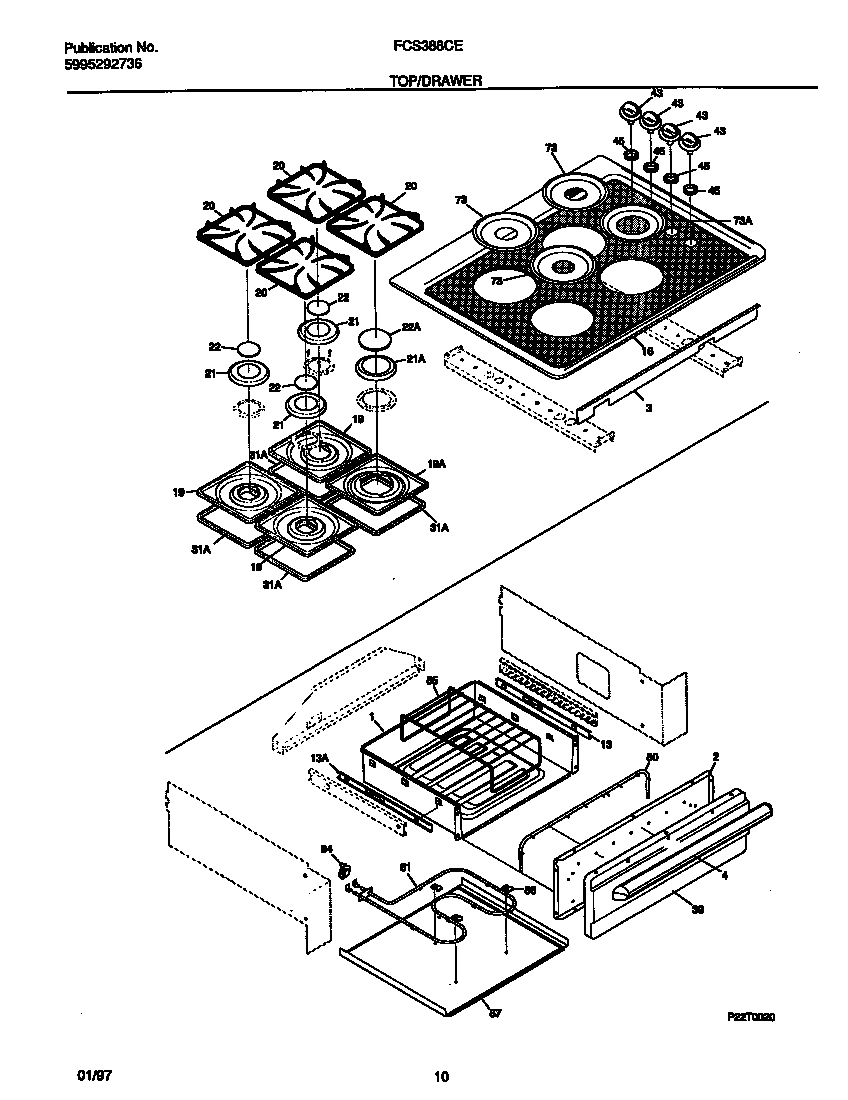

FCS388CESB 06 – TOP/DRAWER

Products

PositionProduct
*90787RIVET-POP, WARING-PLATE
*90788SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
*907895303311174 Frigidaire Oven Screw
*907905304453707 Frigidaire Oven Screw
*90791WCI 5303300414
*90792WCI 5303311125
1WCI 318142500
2INNER-PANEL-DRAWER
3WCI 318090700
4WCI 5303300149
13WCI 316096500
13WCI 316096501
16WCI 318079200
19WCI 5303311260
19WCI 5303307928
20WCI 5303307925
21WCI 318050600
21WCI 318050500
22CAP-BURNER, GLOSS GREY, SMALL, (2)
22CAP-BURNER, GLOSS GREY, LARGE, (2)
31318053901 Frigidaire Drip Pan Seal Gasket
39WCI 316026103
43KNOB, TOP VALVE, (4)
45WCI 5303307933
73WCI 318057101
73DEFLECTOR
80SEAL-DOOR
81WCI 316093100
84318003400 Frigidaire Thermostat
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 318121500
