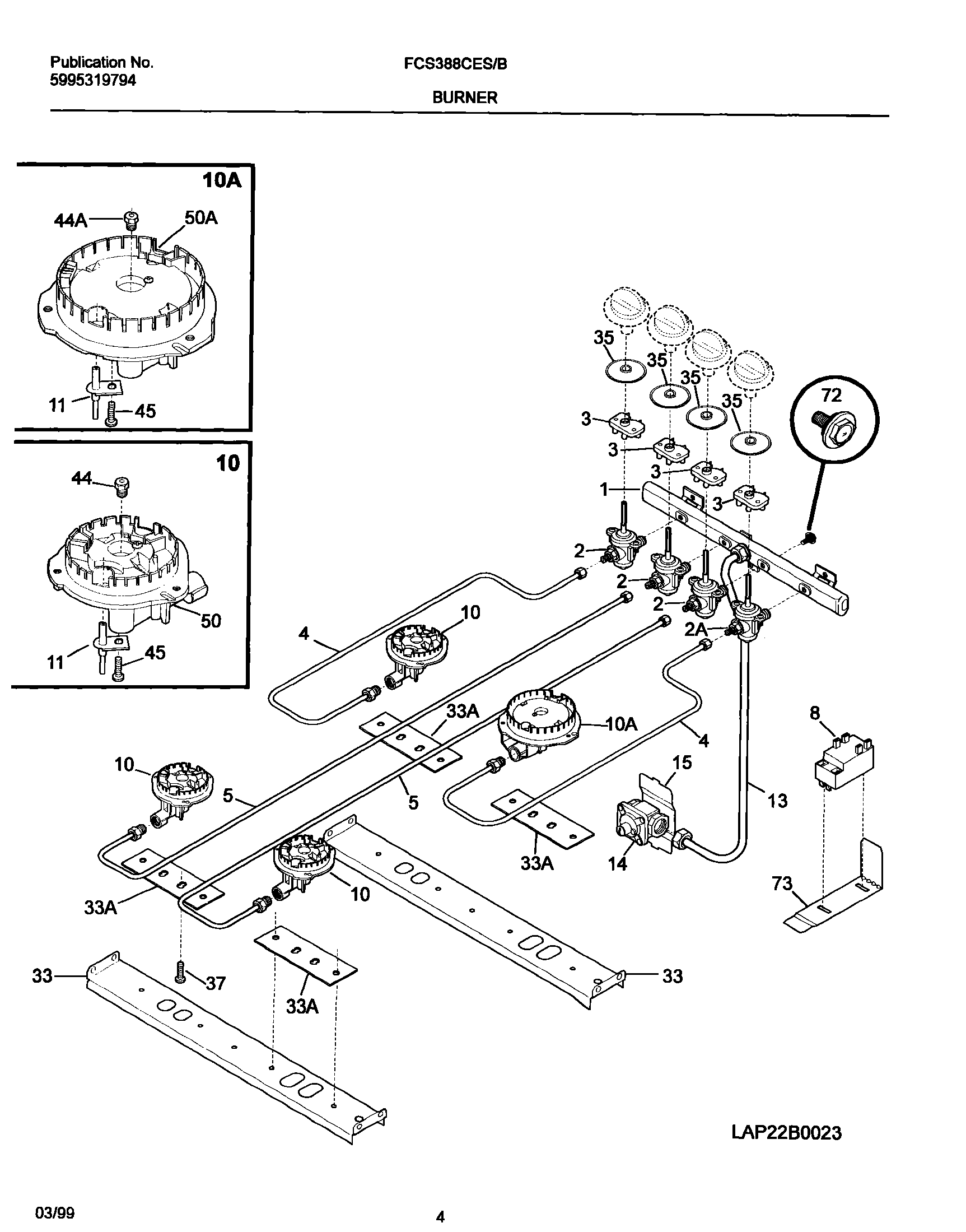

FCS388CESF 05 – BURNER

Products

Position	Product
NI	316048200 Frigidaire Oven Screw
NI	WCI 5303319611
1	WCI 318177301
2	WCI 5303935042
2A	WCI 318087020
3	SWITCH-IGNITOR
4	TUBE-BURNER
5	TUBE-BURNER
8	5304505695 Frigidaire Oven Module
10	BURNER ASSY
10A	BURNER ASSY
11	316011200 Frigidaire Oven Top Burner Igniter
13	WCI 318054503
14	WCI 318122700
15	Bracket,regulator
33A	BRACKET-BURNER MTG
33	WCI 318162300
35	WCI 5303307978
37	SCREW, METRIC
44	ORIFICE-TOP BURNER
44A	ORIFICE-TOP BURNER/ORIFICE
45	WCI 316011100
50	WCI 316010700
50A	316010601 Frigidaire Top Burner
72	WCI 5303323141
73	Plate,spark module
