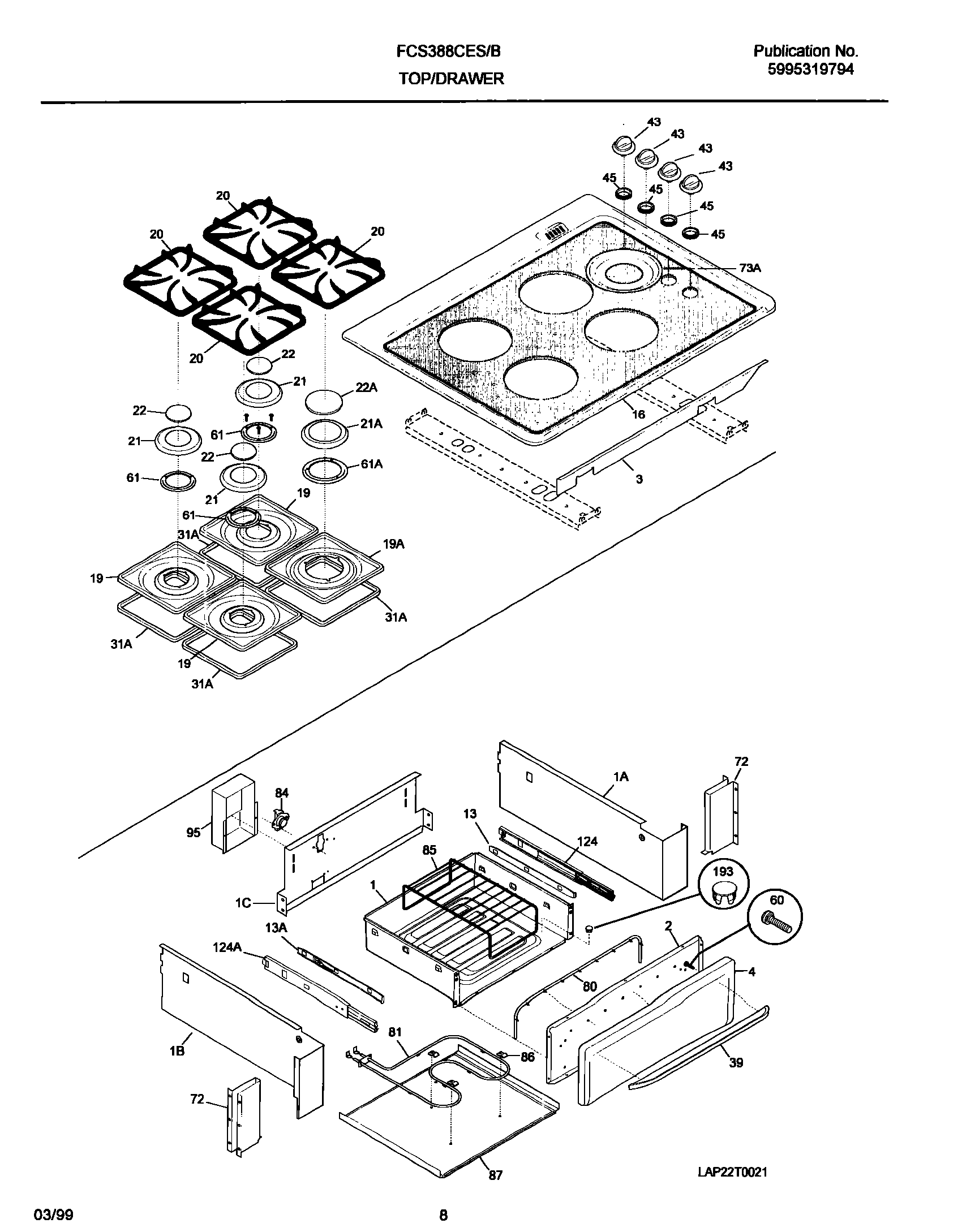

FCS388CESF 09 – TOP / DRAWERadmin2025-04-26T10:50:44+00:00FCS388CESF 09 – TOP / DRAWER
Products
| Position | Product |
|---|
| NI | WCI 5304400795 |
| NI | 5303211311 Frigidaire Refrigerator Screw |
| 1 | WCI 318142500 |
| 1B | WCI 318143306 |
| 1C | WCI 318143201 |
| 1A | WCI 318143307 |
| 2 | INNER-PANEL-DRAWER |
| 3 | WCI 318090700 |
| 4 | WCI 5303300149 |
| 13A | RAIL-DRAWER,LH,OUTER |
| 13 | Rail,drawer ,RH outer |
| 16 | WCI 318079212 |
| 19A | PAN-BURNER, LARGE GRAY |
| 19 | WCI 318066903 |
| 20 | GRATE,(4) |
| 21 | WCI 318050500 |
| 21A | WCI 318050600 |
| 22A | CAP-BURNER,LARGE ,GLOSS GRAY |
| 22 | Cap-burner,small ,gray ,(4) |
| 31A | 318053901 Frigidaire Drip Pan Seal Gasket |
| 39 | WCI 316026103 |
| 43 | KNOB, TOP VALVE, (4) |
| 45 | BUSHING |
| 60 | 5304453707 Frigidaire Oven Screw |
| 61A | TRIM RING LARGE |
| 61 | TRIM RING CHROME |
| 72 | BRACKET-SLIDE,(2) |
| 73A | WCI 318057101 |
| 80 | SEAL-DOOR |
| 81 | WCI 316093100 |
| 84 | WCI 318005101 |
| 85 | 807328301 Frigidaire Oven Rack |
| 86 | 316095800 Frigidaire Oven Clip |
| 87 | WCI 318121501 |
| 95 | WCI 318143701 |
| 124 | WCI 316096500 |
| 124A | WCI 316096501 |
| 193 | WCI 5304400796 |
