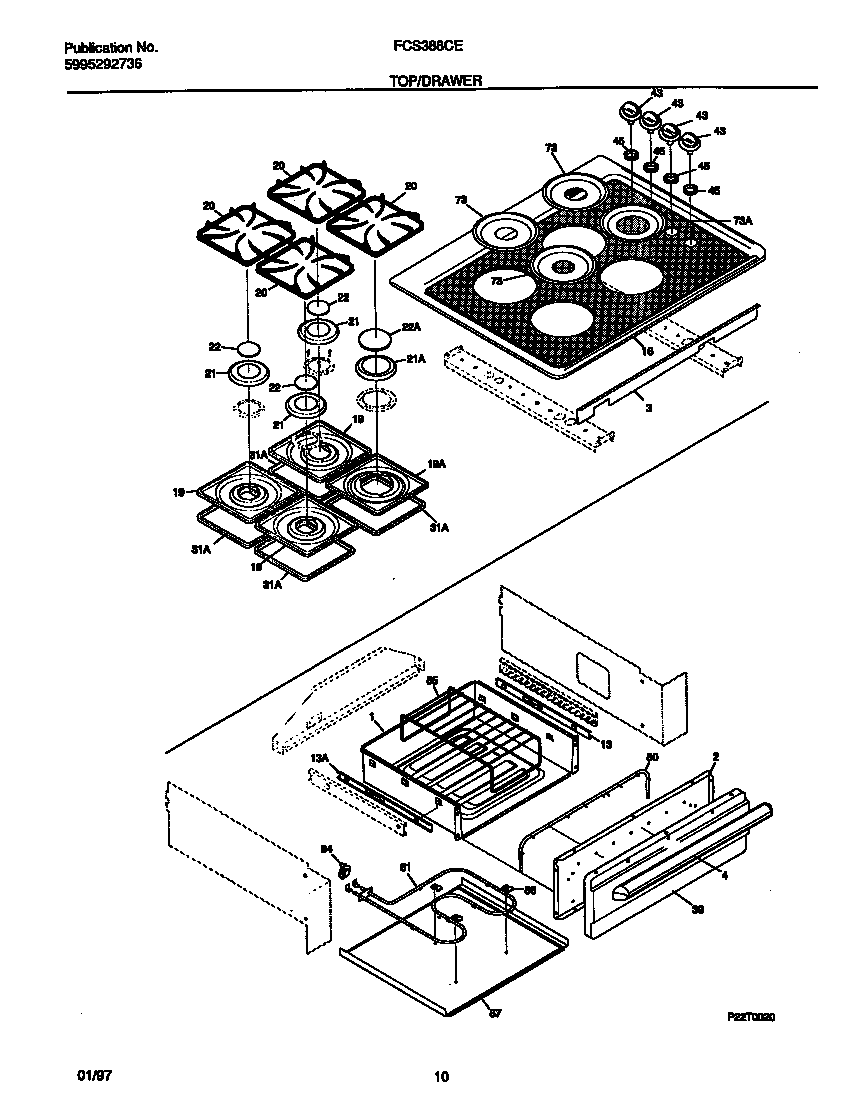

FCS388CETA 06 – TOP/DRAWER

Products

Position	Product
*90787	RIVET-POP, WARING-PLATE
*90791	WCI 5303300414
*90790	5304453707 Frigidaire Oven Screw
*90789	5303311174 Frigidaire Oven Screw
*90788	SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
*90792	WCI 5303311125
1	WCI 318142500
2	INNER-PANEL-DRAWER
3	WCI 318090700
4	WCI 5303300150
13	WCI 316096501
13	WCI 316096500
16	WCI 318079202
19	WCI 5303311264
19	WCI 5303307929
20	WCI 5303307926
21	WCI 318050601
21	WCI 318050501
22	WCI 318142010
22	WCI 318142000
31	318053901 Frigidaire Drip Pan Seal Gasket
39	WCI 5303321335
43	WCI 318016502
45	WCI 5303307933
73	DEFLECTOR
73	WCI 318057101
80	SEAL-DOOR
81	WCI 316093100
84	318003400 Frigidaire Thermostat
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	WCI 318121500
