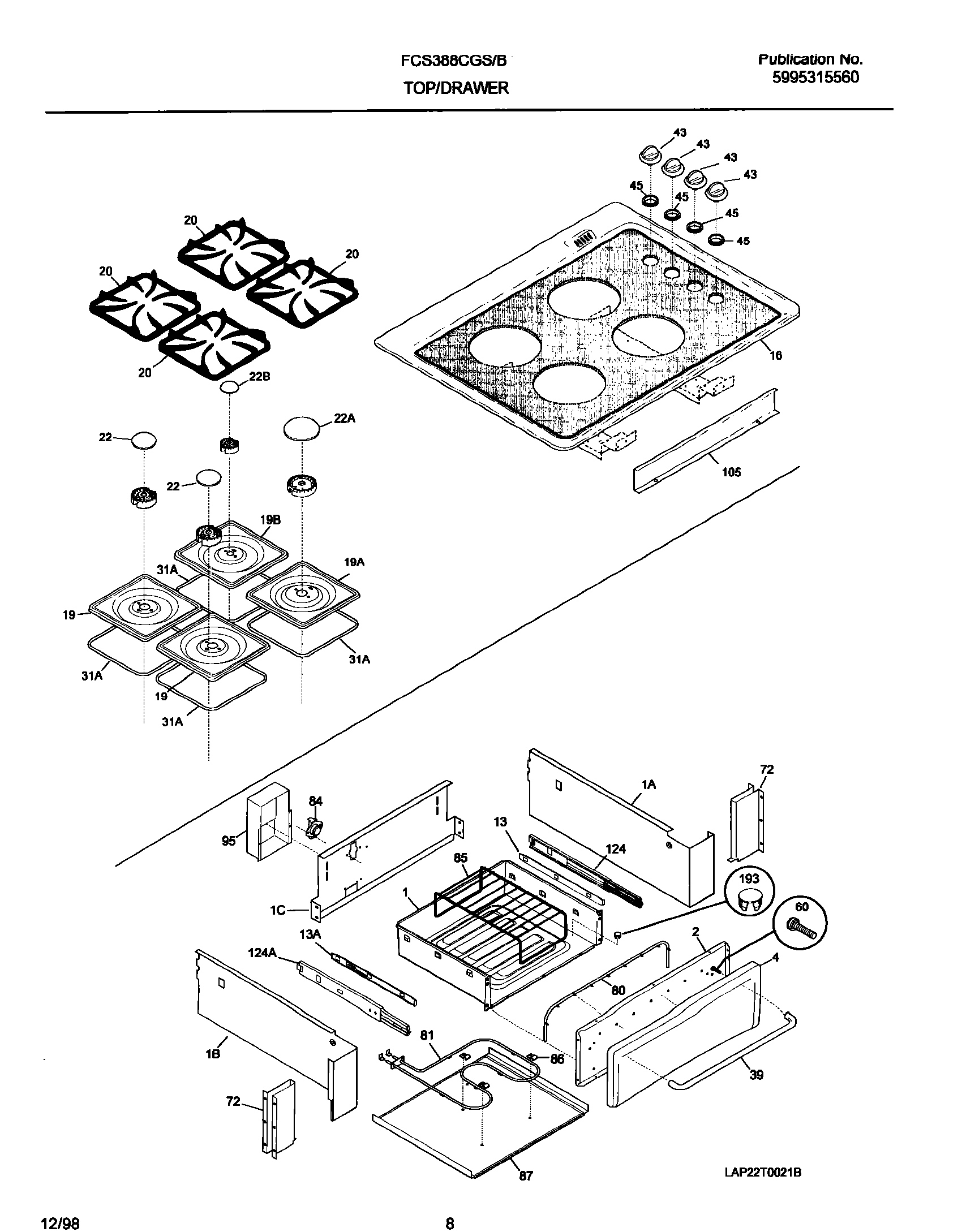

FCS388CGSC 09 – TOP/DRAWERadmin2025-04-26T10:50:30+00:00FCS388CGSC 09 – TOP/DRAWER
Products
| Position | Product |
|---|
| NI | 08002868 Frigidaire 0 Screw Assembly |
| NI | 5303211311 Frigidaire Refrigerator Screw |
| NI | 5304403558 Frigidaire Oven Screw |
| NI | 5303311174 Frigidaire Oven Screw |
| 1A | WCI 318143307 |
| 1B | WCI 318143306 |
| 1 | WCI 318142500 |
| 1C | WCI 318143201 |
| 2 | INNER-PANEL-DRAWER |
| 4 | WCI 5303300149 |
| 13 | Rail,drawer ,RH outer |
| 13A | RAIL-DRAWER,LH,OUTER |
| 16 | WCI 318079200 |
| 19B | WCI 318168106 |
| 19A | WCI 318168126 |
| 19 | WCI 318168116 |
| 20 | Grate,grey ,(4) |
| 22B | Cap,burner ,grey ,small RR |
| 22 | Cap,burner ,grey ,medium LF & LR |
| 22A | Cap,burner ,grey ,large RF |
| 31A | 318053901 Frigidaire Drip Pan Seal Gasket |
| 39 | WCI 316026103 |
| 43 | KNOB, TOP VALVE, (4) |
| 45 | WCI 5303307933 |
| 60 | 5304453707 Frigidaire Oven Screw |
| 72 | WCI 318113401 |
| 80 | SEAL-DOOR |
| 81 | WCI 316093100 |
| 84 | WCI 318005101 |
| 85 | 807328301 Frigidaire Oven Rack |
| 86 | 316095800 Frigidaire Oven Clip |
| 87 | WCI 318121501 |
| 95 | WCI 318143701 |
| 105 | WCI 318171600 |
| 124A | WCI 316096501 |
| 124 | WCI 316096500 |
| 193 | WCI 5304400796 |
