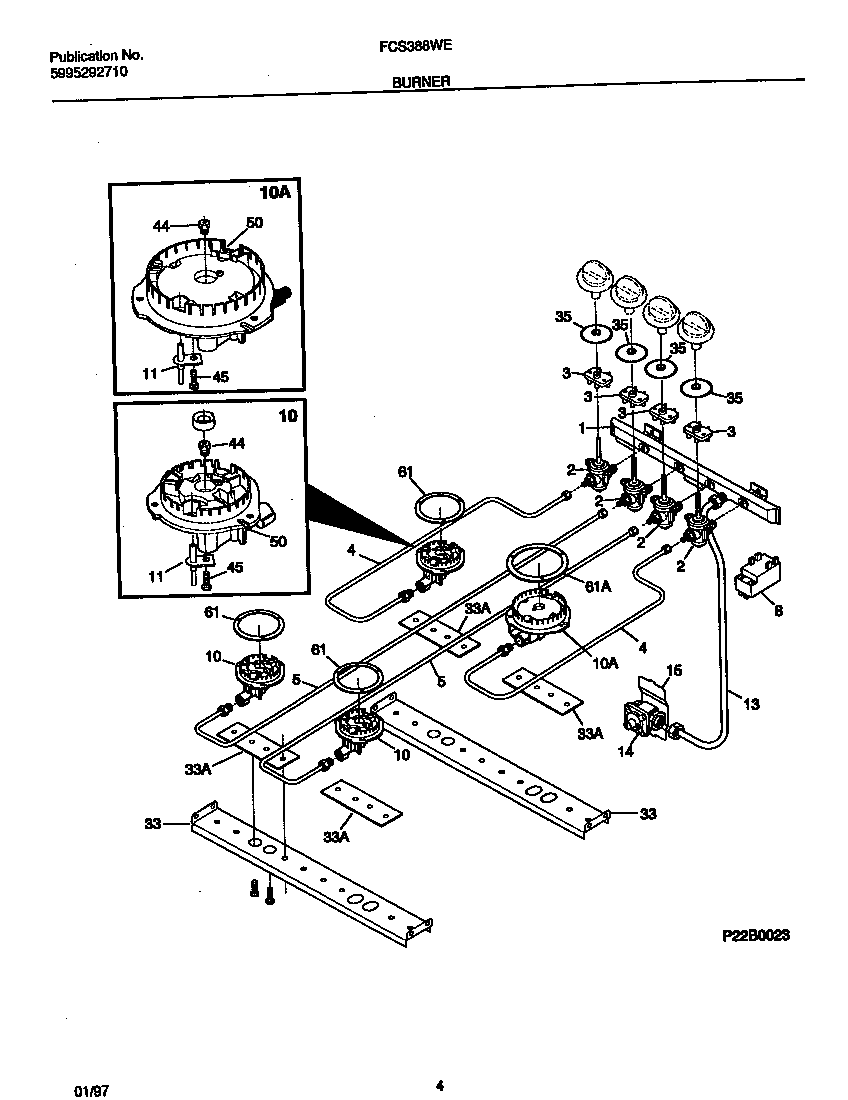

FCS388WECA 03 – BURNER

Products

PositionProduct
*57245WCI 318065000
*57243SCREW, 8 X 5/8, SPARK MODULE
*57247SCREW, METRIC
*57248WCI 318127400
*57244WCI 318038400
*57246Plate,spark module
1WCI 318078001
2VALVE-TOP BURNER, SMALL, W/SCREW(3)
2316048200 Frigidaire Oven Screw
2WCI 316036801
3SWITCH-IGNITOR
4TUBE-BURNER
5TUBE-BURNER
85304505695 Frigidaire Oven Module
10BURNER ASSY
10BURNER ASSY
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 318054503
14WCI 318122700
15WCI 318122600
33WCI 5303307977
33BRACKET-BURNER MTG
35WCI 5303307978
44ORIFICE-TOP BURNER, (4)
44ORIFICE-TOP BURNER/ORIFICE
45WCI 316011100
50316010601 Frigidaire Top Burner
50WCI 316010700
61TRIM RING CHROME
61TRIM RING LARGE
