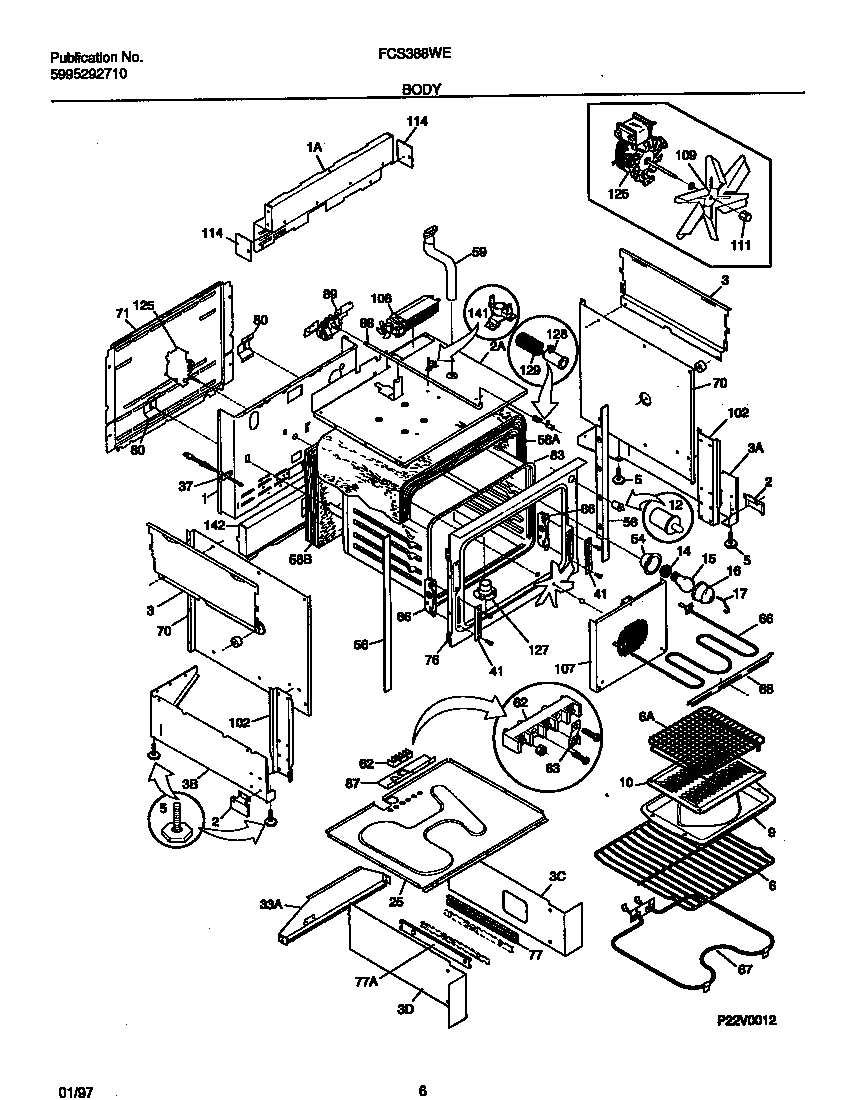

FCS388WECA 04 – BODY

FCS388WECA 04 – BODY

Written by

in

FCS388WECA 04 – BODY

Products

PositionProduct
*57255WCI 318143700
*57261WCI 5303320846
*572575300803416 Frigidaire Dishwasher Screw
*57251WCI 318038400
*57262WCI 5303321212
*57258WCI 5303304030
*572655303307980 Frigidaire Oven Screw
*57264SWITCH, THERMAL CUTOUT
*572595304464772 Frigidaire Refrigerator Wire Tie
*572565303211311 Frigidaire Refrigerator Screw
*57260WCI 5303311207
*57254WCI 318113400
*57263WCI 318005101
*57250SPACER-T.C.O. (NON-ILLUSTRATED)
*57253WCI 318077600
*57252WCI 318073900
*57249Clip,insulator
1WCI 318066400
1WCI 5303311161
2WCI 5303311158
2SHIELD-TOE (2)
3PANEL-SIDE RH
3WCI 5303300143
3WCI 318143303
3WCI 318143302
3PANEL-SIDE LH
5WCI 3203576
5WCI 3203575
6318345205 Frigidaire Oven Rack
6Shelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
25WCI 318121303
33WCI 318143200
37PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-OVEN FRONT,BLACK
58WCI 5303310538
58INSULATION WRAPPER
59WCI 318072502
625304409888 Frigidaire Oven Terminal Block with Hardware
62316205500 Frigidaire Oven Nut
63WCI 5303310517
66318255605 Frigidaire Oven Broil Element Range
67WCI 5303320681
67BAKE ELEMENT
68WCI 5303307563
70WCI 5303300142
71WCI 5303310515
76WCI 318124100
77RAIL-DRAWER,LH,OUTER
77Rail,drawer ,RH outer
80WCI 5303301261
83WCI 318089603
86WCI 5303310524
87WCI 318111800
88WCI 5303311160
89318095956 Frigidaire Oven Motor
102WCI 5303311142
107WCI 318119600
108WCI 318073001
109WCI 318137400
111WCI 318137700
111WCI 318137600
114PLATE-FILLER
125WCI 318137100
127WCI 5303311195
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
141Thermostat,safety ,for fan
142WCI 5303310541
