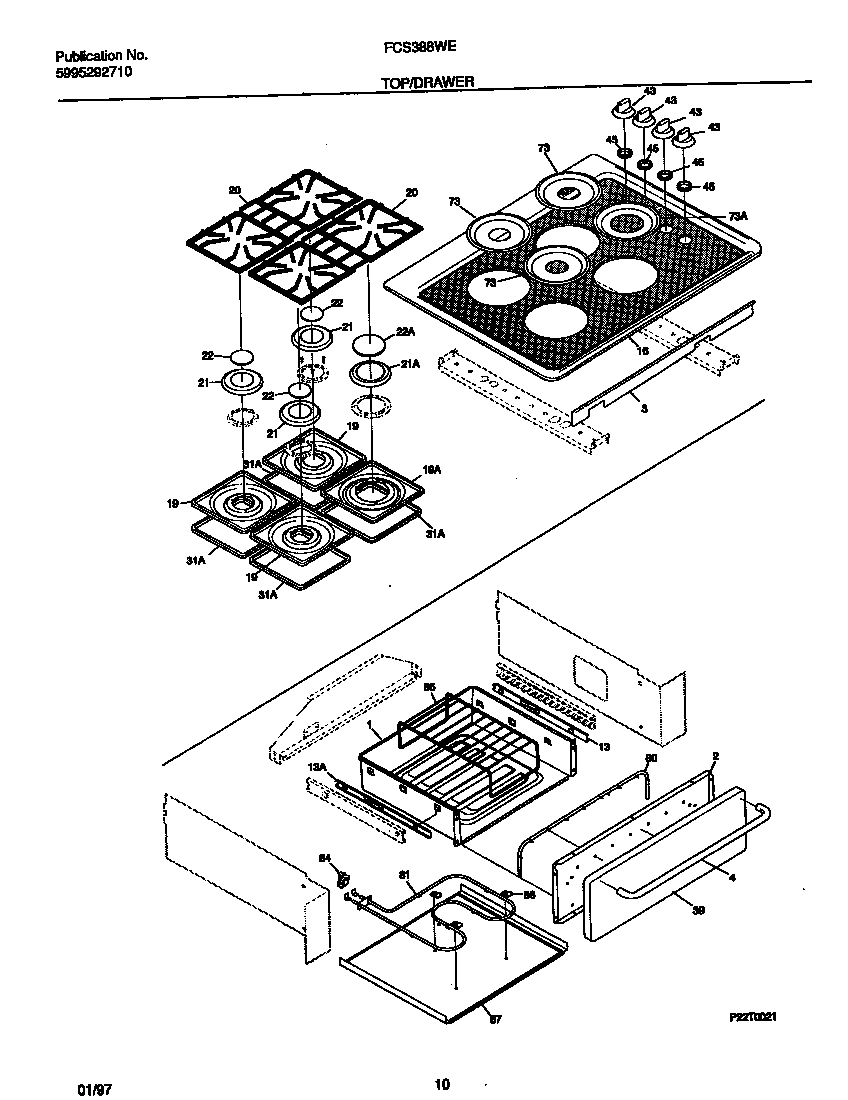

FCS388WECA 05 – TOP/DRAWER

FCS388WECA 05 – TOP/DRAWER

Written by

in

FCS388WECA 05 – TOP/DRAWER

Products

PositionProduct
*57266RIVET-POP, WARING-PLATE
*57268WCI 5303300414
*572675304453707 Frigidaire Oven Screw
*57269WCI 5303311125
1WCI 318142500
2WCI 318108011
3WCI 318090700
4PANEL-DRAWER, WHITE
13WCI 316096500
13WCI 316096501
16MAIN TOP-GLASSBLACK
19WCI 5303311265
19WCI 5303307930
20WCI 318120400
21TRIM-RING (MEDIUM)
21WCI 5303311292
22WCI 316011001
22CAP-BURNER, BLACK, LARGE, (2)
31318053901 Frigidaire Drip Pan Seal Gasket
39WCI 316079500
43Knob,top valve ,black ,(4)
45WCI 5303307933
73DEFLECTOR
73WCI 318057101
80SEAL-DOOR
81WCI 316093100
84318003400 Frigidaire Thermostat
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 318121500
