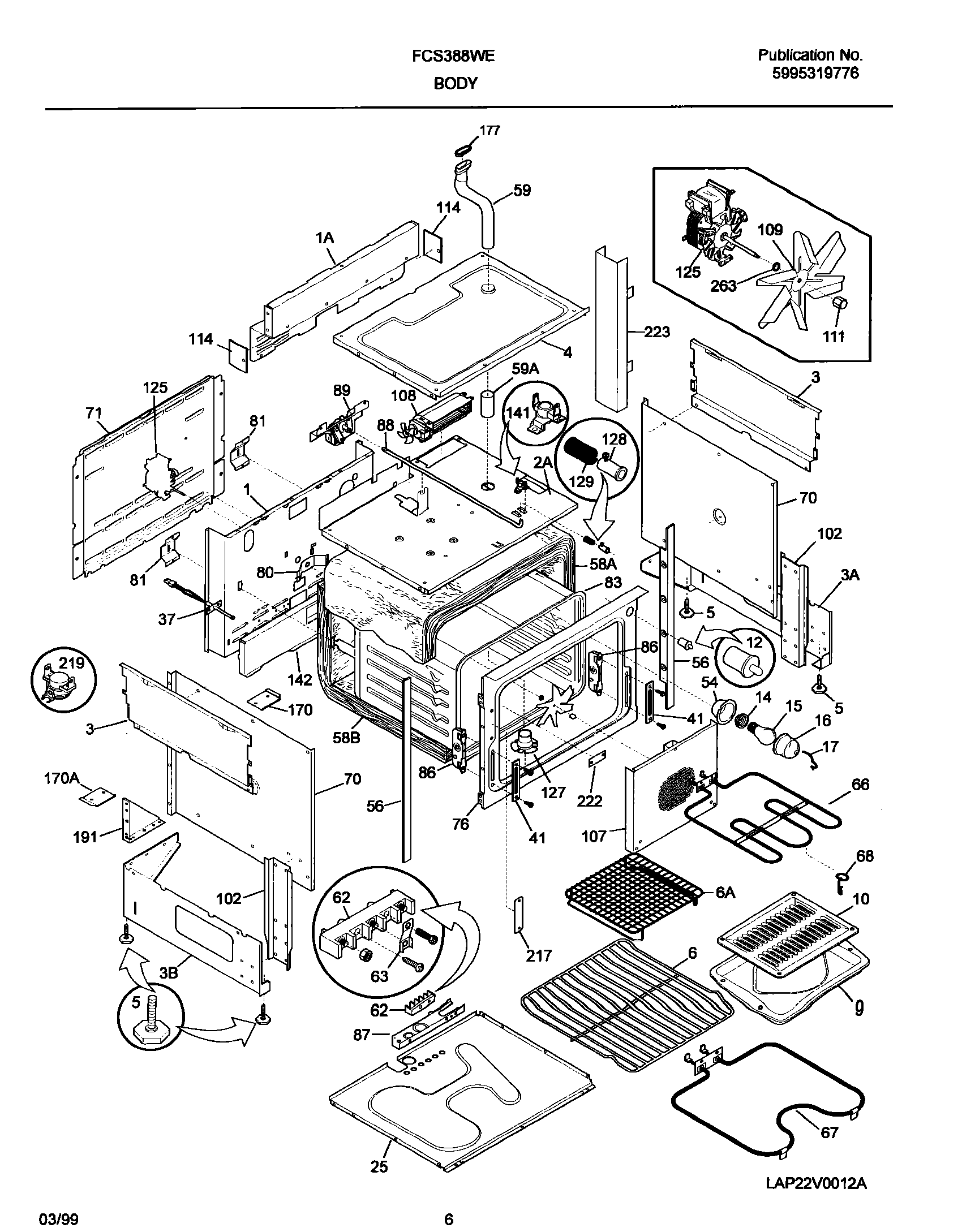

FCS388WECF 07 – BODY

FCS388WECF 07 – BODY

Written by

in

FCS388WECF 07 – BODY

Products

PositionProduct
NI5303300265 Frigidaire Oven Screw
NISCREW
NI5303211311 Frigidaire Refrigerator Screw
1AWCI 5303311161
1WCI 318066400
2AWCI 318108600
3WCI 5303300143
3APANEL-SIDE RH
3BPANEL-SIDE LH
4WCI 318073900
5318175503 Frigidaire Screw with Bolt
6318345205 Frigidaire Oven Rack
6AShelf,broiler pan
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
25WCI 318121303
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56TRIM-OVEN FRONT,BLACK
58AINSULATION WRAPPER
58BWCI 5303310538
59Tube,oven vent ,upper
59ATube,oven vent ,lower
625304409888 Frigidaire Oven Terminal Block with Hardware
63WCI 5303310517
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 5303310515
76WCI 318124100
80WCI 5303320846
81WCI 5303301261
83Liner,oven
86WCI 5303310524
87WCI 318111800
88WCI 5303311160
89WCI 318120702
89WCI 5304404899
102WCI 5303311142
107WCI 318119600
108WCI 318073001
109FAN BLADE
111316136600 Frigidaire Oven Range Lock Nut
114PLATE-FILLER
1255303311202 Frigidaire P1-Motor-Conv
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
141WCI 530328446
142WCI 318123901
170WCI 3203576
170AWCI 3203575
177WCI 5303324040
191WCI 5303304030
217WCI 316042300
219318003400 Frigidaire Thermostat
222PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
223WCI 318038400
263316008401 Frigidaire Washer P-1
