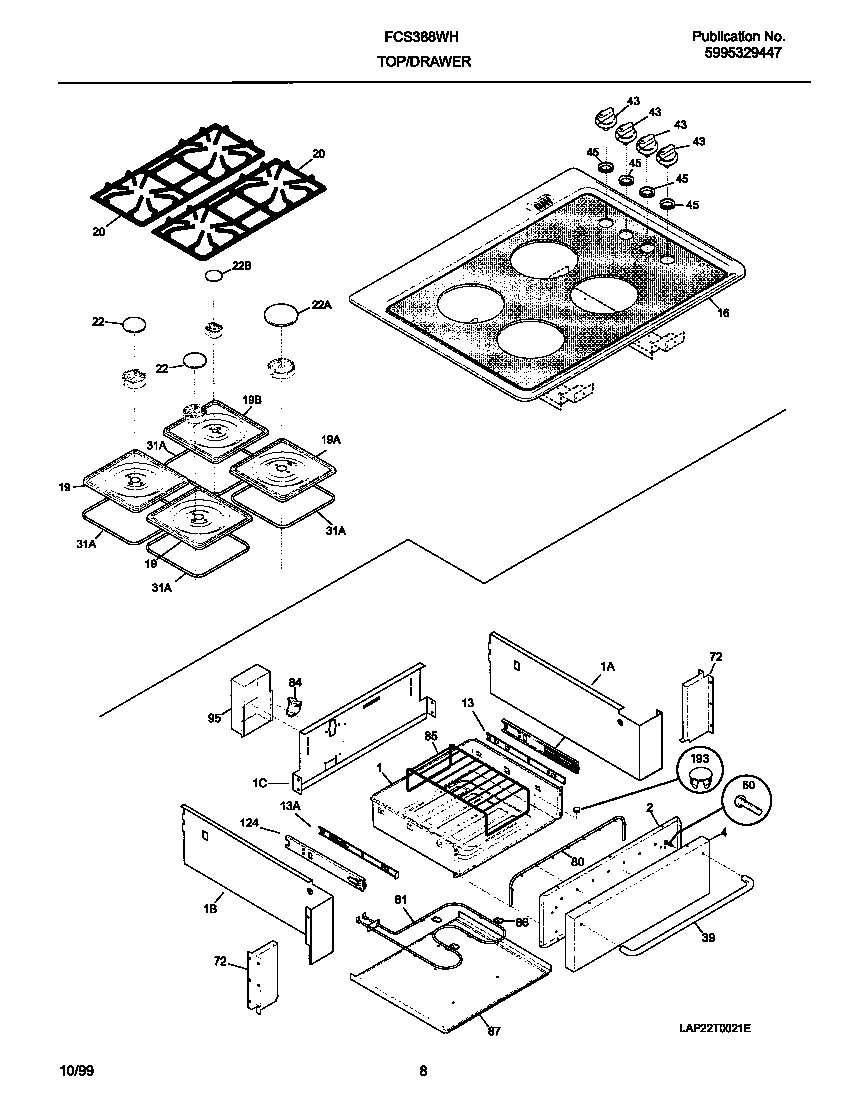

FCS388WHCC 05 – TOP/DRAWER

FCS388WHCC 05 – TOP/DRAWER

Written by

in

FCS388WHCC 05 – TOP/DRAWER

Products

PositionProduct
*75685WCI 5303323221
*756865303211311 Frigidaire Refrigerator Screw
*756875303311174 Frigidaire Oven Screw
1WCI 318142500
1DEFLECTOR-WARMER,RIGHT SIDE
1DEFLECTOR-WARMER,LEFT SIDE
1WCI 318143203
2WCI 318108017
4PANEL-DRAWER, WHITE
13318259507 Frigidaire Oven Glide
13318259506 Frigidaire Oven Glide
16MAIN TOP-GLASSBLACK
17WCI 5304400195
19318168104 Frigidaire Pan, Small Black
19318168124 Frigidaire Large Burner Pan
19318168114 Frigidaire Oven Pan
20WCI 318120402
22WCI 318076400
22WCI 318076420
22316213500 Frigidaire Range Medium 9.5K Black Surface Burner Cap
31318053901 Frigidaire Drip Pan Seal Gasket
39WCI 316079500
43Knob,top valve ,black ,(4)
45BUSHING
60240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72BRACKET-SLIDE,(2)
80Gasket,warmer drawer
81WCI 316093100
84WCI 318005103
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 318121503
95WCI 318143701
124316105501 Frigidaire P-1 Glide
193WCI 5303325173
219318003400 Frigidaire Thermostat
