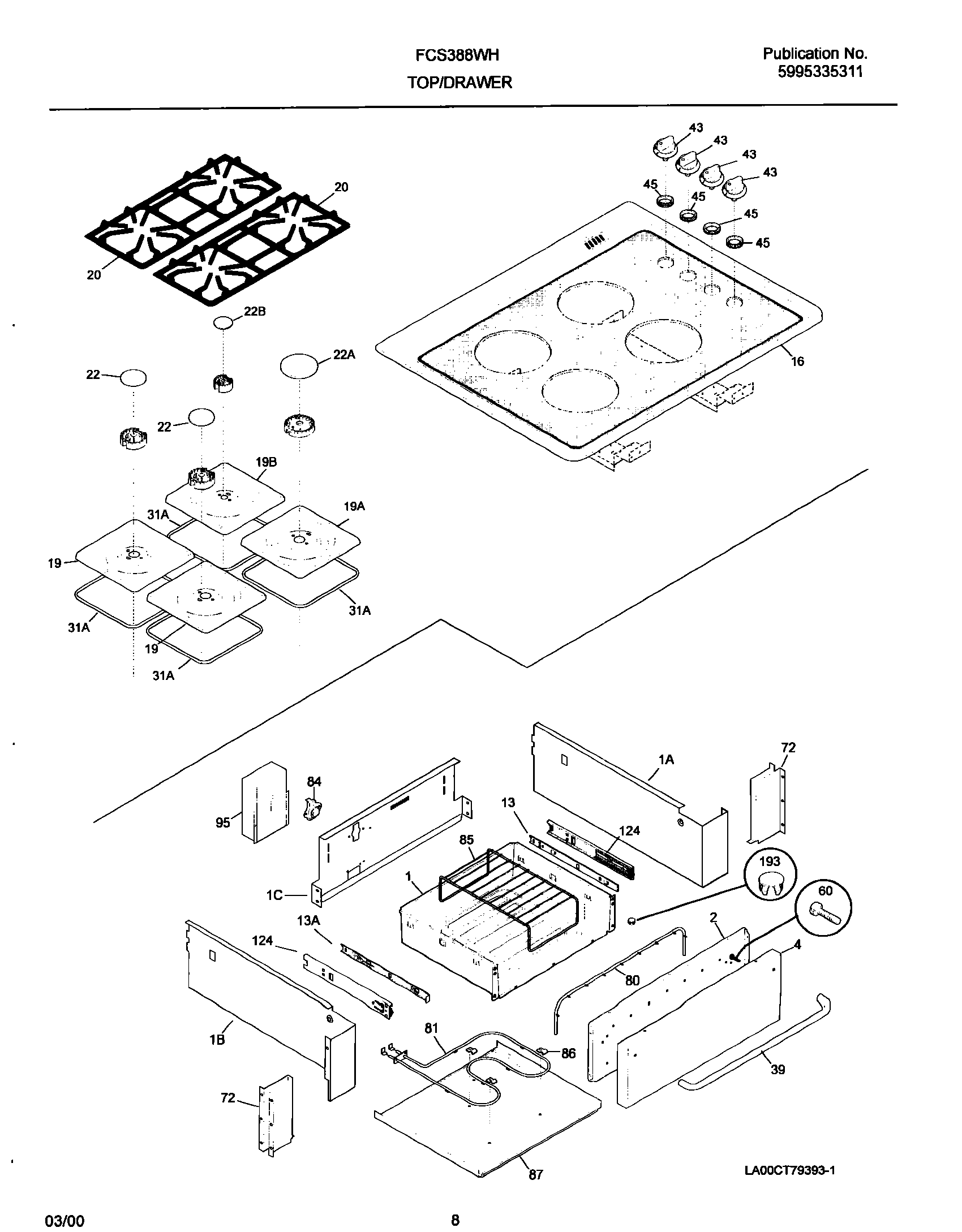

FCS388WHCD 09 – TOP/DRAWER

FCS388WHCD 09 – TOP/DRAWER

Written by

in

FCS388WHCD 09 – TOP/DRAWER

Products

PositionProduct
NIWCI 5303323221
NI5303211311 Frigidaire Refrigerator Screw
NI5303311174 Frigidaire Oven Screw
NIWCI 5304400795
1WCI 318142500
1ADEFLECTOR-WARMER,RIGHT SIDE
1BDEFLECTOR-WARMER,LEFT SIDE
1CWCI 318143203
2WCI 318108017
4PANEL-DRAWER, WHITE
13318259507 Frigidaire Oven Glide
13A318259506 Frigidaire Oven Glide
16MAIN TOP-GLASSBLACK
19318168114 Frigidaire Oven Pan
19B318168104 Frigidaire Pan, Small Black
19A318168124 Frigidaire Large Burner Pan
20Grate,black ,(4)
22316213500 Frigidaire Range Medium 9.5K Black Surface Burner Cap
22BWCI 318076400
22AWCI 318076420
31A318053901 Frigidaire Drip Pan Seal Gasket
39WCI 316079500
43Knob,top valve ,black ,(4)
45BUSHING
60240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72BRACKET-SLIDE,(2)
80Gasket,warmer drawer
81WCI 316093100
84WCI 318005103
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 318121503
95WCI 318143701
124316105501 Frigidaire P-1 Glide
193WCI 5304400796
