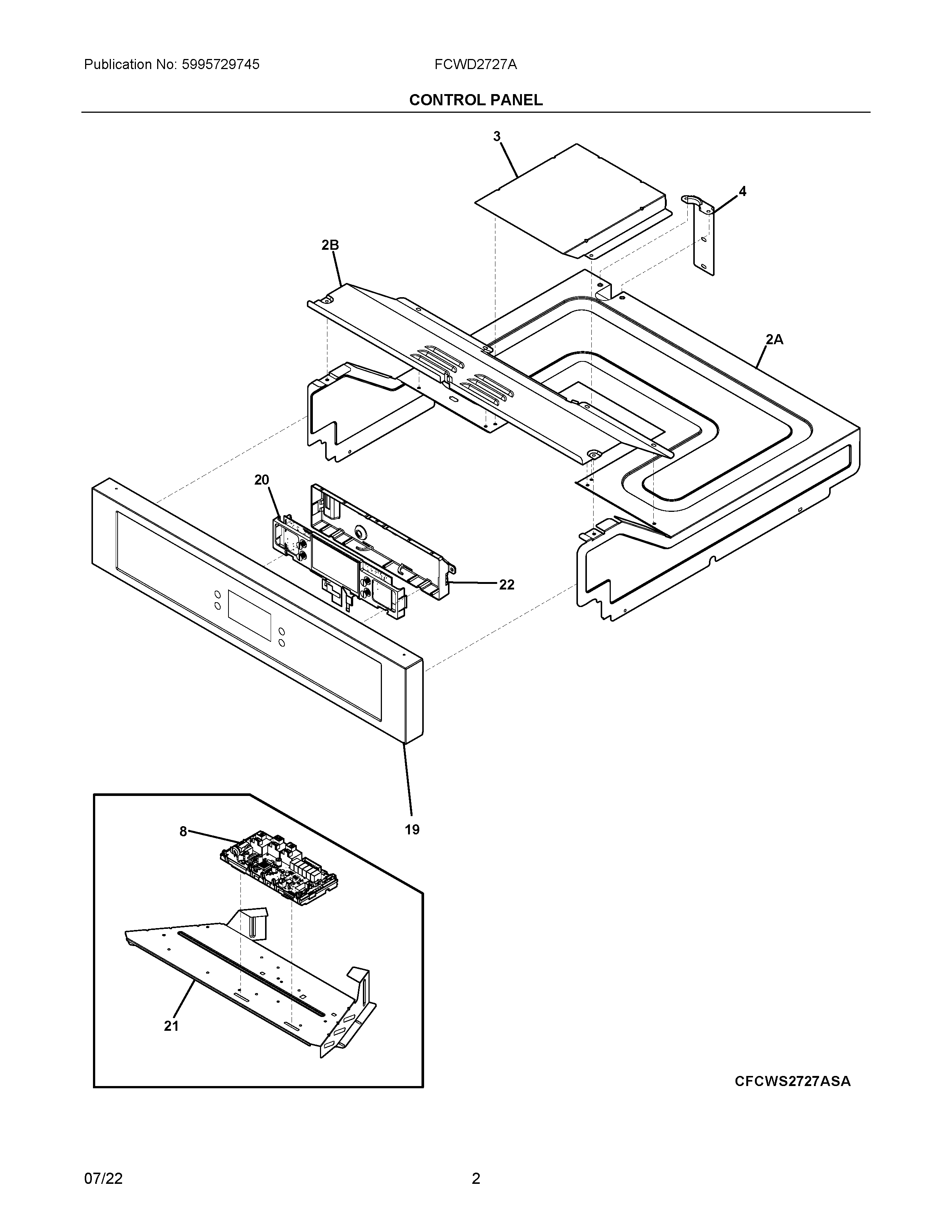

FCWD2727ABA 02 – CONTROL PANEL

FCWD2727ABA 02 – CONTROL PANEL

Written by

in

FCWD2727ABA 02 – CONTROL PANEL

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIA318165800 Frigidaire Oven Door Glass Spacer with Screw
NIAWCI 387872717
2B139003702 Frigidaire Cover
2A139003603 Frigidaire Cover
3318577801 Frigidaire Oven Box
4BRACKET, CONDUIT
85304525432 Frigidaire Board Assembly
195304525462 Frigidaire Control Panel
20CONTROLLER, ELECTRONIC, PUX
21BRACKET, MOUNTING
225304523582 Frigidaire Housing
