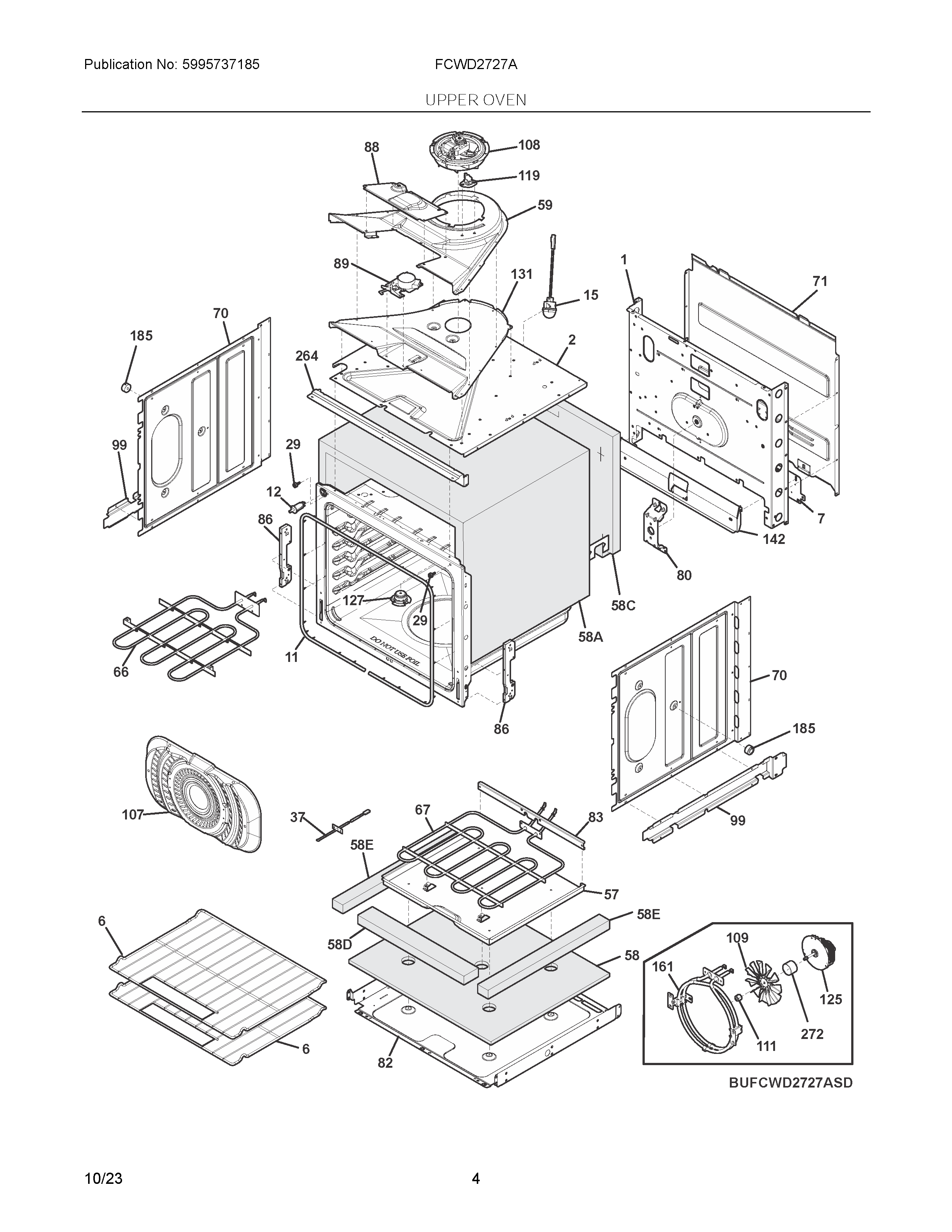

FCWD2727ABF 03 – UPPER OVEN

FCWD2727ABF 03 – UPPER OVEN

Written by

in

FCWD2727ABF 03 – UPPER OVEN

Products

PositionProduct
NI5303289910 Frigidaire Oven Screw
NIAWCI 387872717
NIWCI 5304528293
NI387856311 Frigidaire Screw
NI5304526533 Frigidaire Screw
NIAWCI 5304532405
NIWCI 5304525449
NIA316418900 Frigidaire Oven Screw
15304506958 Frigidaire Panel
2139027809 Frigidaire SHIELD
6139011900 Frigidaire Oven Rack
7PANEL, SERVICE, MAIN BACK
11807545501 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304530343 Frigidaire Lamp Assembly
29316517600 Frigidaire Oven Spacer
375304525427 Frigidaire Probe
575304506949 Frigidaire Box
58C5304506954 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
58E5304506966 Frigidaire Insulation
58A139001701 Frigidaire INSULATION
585304506952 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
665304514924 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139022001 Frigidaire SHIELD
80139021101 Frigidaire Bracket Assembly
825304506947 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
86808930503 Frigidaire Receptacle
885304506964 Frigidaire Oven Cover
895304528835 Frigidaire Motor
99139005201 Frigidaire Bracket
1075304527949 Frigidaire Cover
1085304529887 Frigidaire Motor Assembly
1095304525455 Frigidaire Blade
111316136600 Frigidaire Oven Range Lock Nut
119THERMOSTAT,SAFETY,125C
125139008507 Frigidaire Motor Assembly
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
142WCI 5304506953
161BRACKET, BLOWER COVER
185318531800 Frigidaire Oven Spacer
264139003501 Frigidaire Oven Trim Assembly
272139021700 Frigidaire Oven Tube
