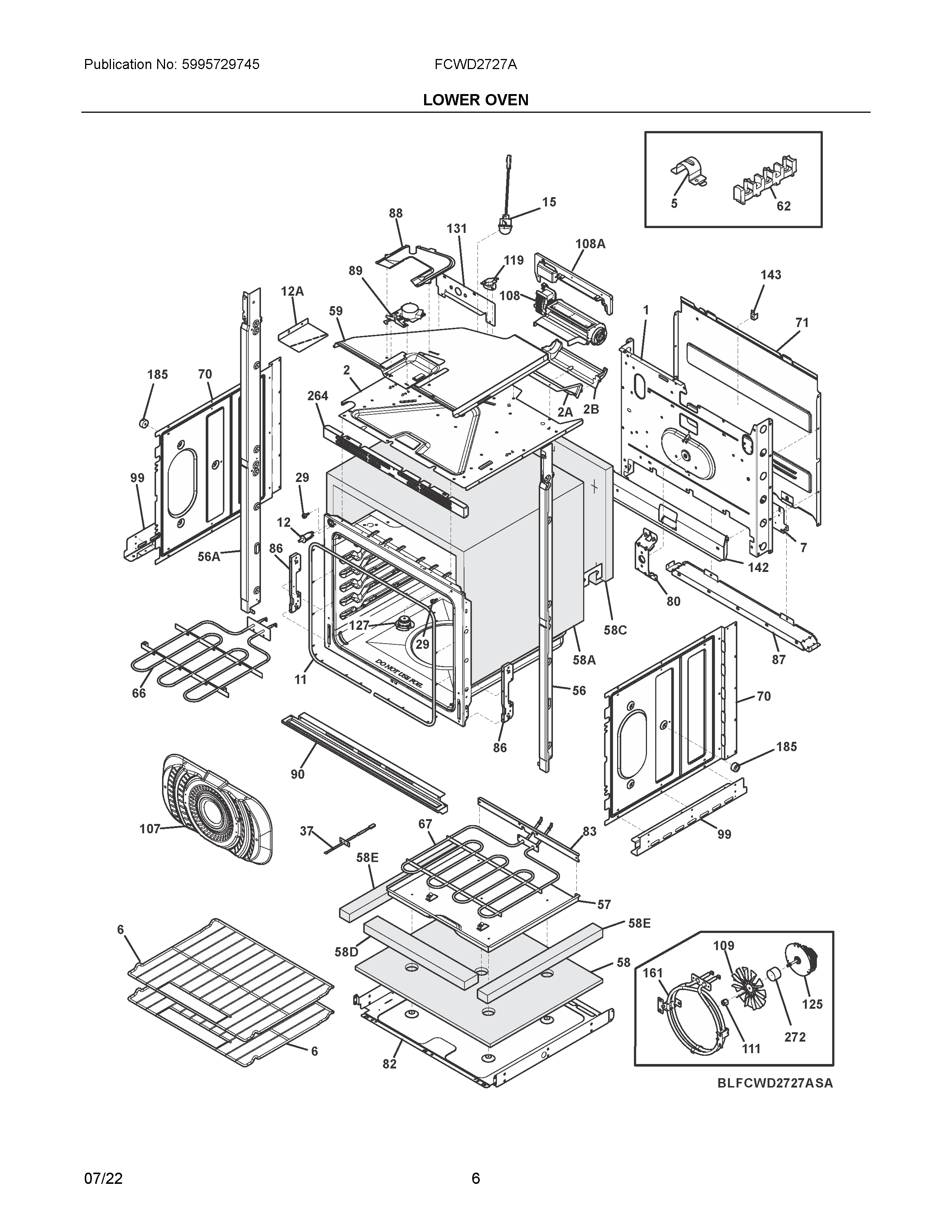

FCWD2727AWA 04 – LOWER OVEN

FCWD2727AWA 04 – LOWER OVEN

Written by

in

FCWD2727AWA 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 5304532408
NI807597603 Frigidaire Oven Screw
NIHARNESS
NI5304471184 Frigidaire Screw
NIBA316021119 Frigidaire Oven Screw
NIWCI 5304532410
NI5304535368 Frigidaire Harness
NIWCI 5304531542
NIA139022101 Frigidaire Insulation
NIWCI 5304532411
NIWCI 5304532405
NI5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIA316205500 Frigidaire Oven Nut
NIA316001017 Frigidaire Screw
NIA316418900 Frigidaire Oven Screw
1PANEL, MAIN BACK
2B139038901 Frigidaire Oven Housing
2A139015900 Frigidaire SHIELD
2139027805 Frigidaire Shield
5BRACKET, CONDUIT MTG.
6139011900 Frigidaire Oven Rack
7PANEL, SERVICE, MAIN BACK
11807545501 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
12A807641201 Frigidaire Shield
155304530343 Frigidaire Lamp Assembly
29316517600 Frigidaire Oven Spacer
375304525427 Frigidaire Probe
56ATRIM, SIDE, WHITE, LH
56TRIM, SIDE, WHITE, RH
575304506949 Frigidaire Box
58E5304506966 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
585304506952 Frigidaire Insulation
58A139001701 Frigidaire INSULATION
58C5304506954 Frigidaire Insulation
59139015700 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304514924 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139022001 Frigidaire SHIELD
80139021101 Frigidaire Bracket Assembly
825304506947 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
86808930503 Frigidaire Receptacle
87WCI 139021901
885304506963 Frigidaire Cover
895304528835 Frigidaire Motor
90TRIM, OVEN BOTTOM, WHITE
99318256201 Frigidaire Oven Bracket
1075304527949 Frigidaire Cover
108139038302 Frigidaire Blower Assembly
108A139015300 Frigidaire Oven Bracket
1095304525455 Frigidaire Blade
111316136600 Frigidaire Oven Range Lock Nut
119THERMOSTAT,SAFETY,125C
125139008507 Frigidaire Motor Assembly
127139042600 Frigidaire Tube Assembly
131WCI 5304506962
142WCI 5304506953
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
264139013503 Frigidaire Trim
272139021700 Frigidaire Oven Tube
