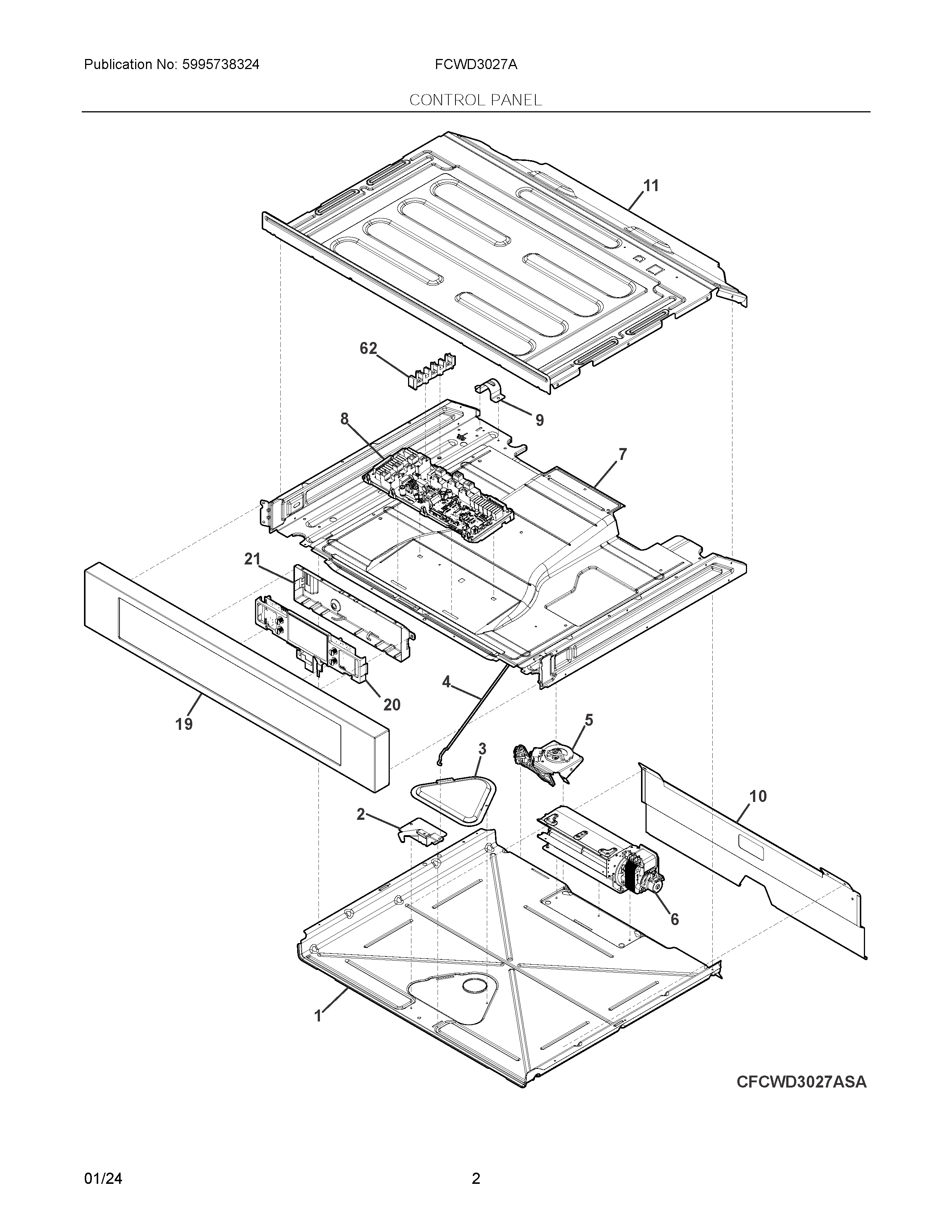

FCWD3027ABD 02 – CONTROL PANEL

Products

PositionProduct
NIB316205500 Frigidaire Oven Nut
NI5304532099 Frigidaire Harness
NI5304530448 Frigidaire Harness
NI5304530449 Frigidaire Harness
NI5304535368 Frigidaire Harness
NI387856311 Frigidaire Screw
NI5304526527 Frigidaire Harness
NIA316001017 Frigidaire Screw
NI5304532100 Frigidaire Harness
NI5304526515 Frigidaire Harness
NICWCI 5304528293
NIWCI 387872717
1SHIELD, BOTTOM DUCT
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526552 Frigidaire Motor Assembly
65304530368 Frigidaire Blower Assembly
75304526538 Frigidaire Carrier Plate
85304525432 Frigidaire Board Assembly
9BRACKET, CONDUIT MTG.
10SHIELD, INSULATION, REAR, UPPER
115304532474 Frigidaire Shield Assembly
19CONTROL PANEL
20CONTROLLER
215304523582 Frigidaire Housing
565304526234 Frigidaire Screw
625304409888 Frigidaire Oven Terminal Block with Hardware
