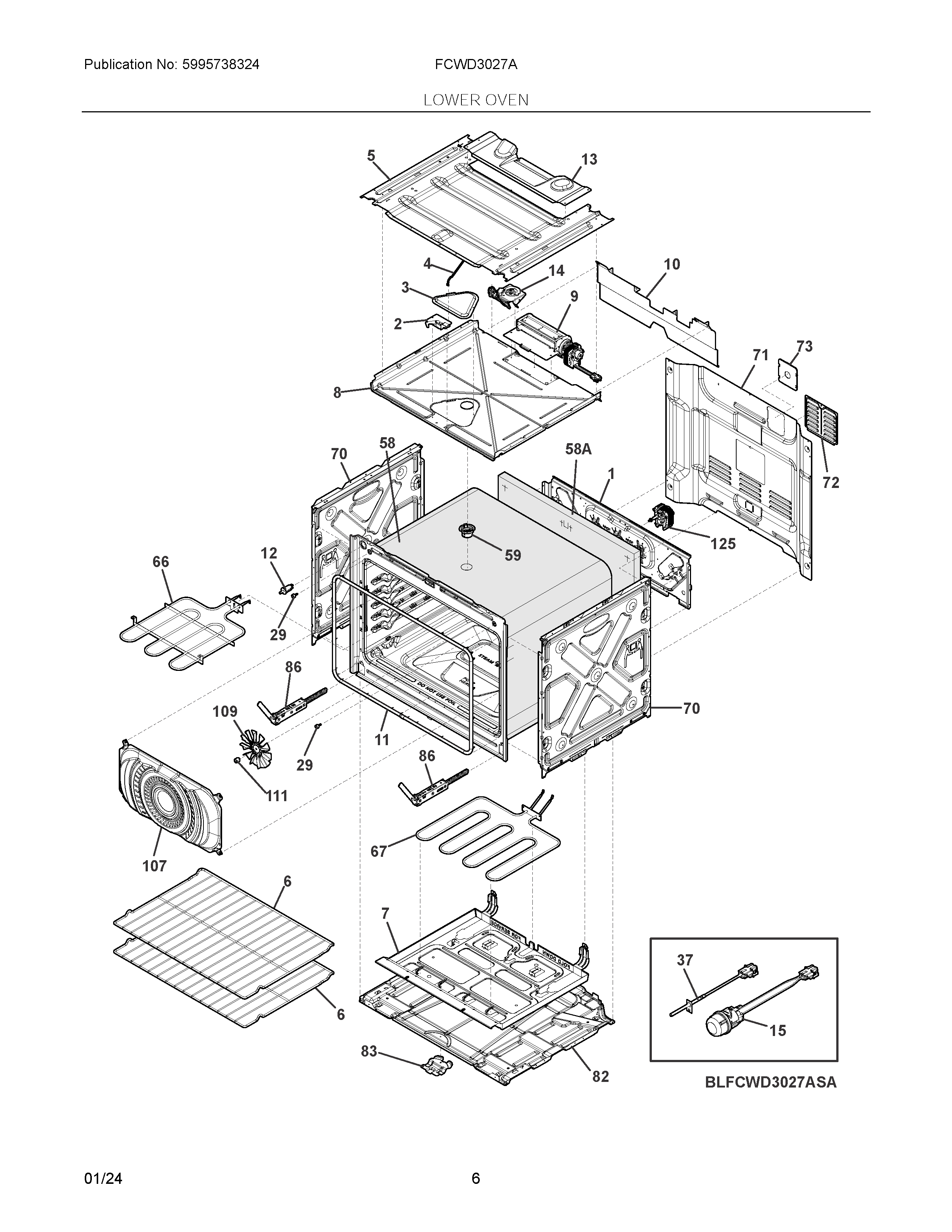

FCWD3027ABD 04 – LOWER OVEN

Products

Position	Product
NIA	5304526532 Frigidaire Screw
NIA	5304526234 Frigidaire Screw
NI	5304526515 Frigidaire Harness
NI	5304530448 Frigidaire Harness
NI	5304530450 Frigidaire Anti Tip
NI	5304535368 Frigidaire Harness
NI	387856311 Frigidaire Screw
NI	5304526513 Frigidaire Harness
NI	5304526527 Frigidaire Harness
NI	5304530449 Frigidaire Harness
NI	WCI 387872717
1	PANEL
2	5304526367 Frigidaire Latch Door
3	COVER, VENT
4	5304526368 Frigidaire Rod Assembly
5	5304526313 Frigidaire Panel
6	5304531722 Frigidaire Rack
7	TRAY, HIDDEN BAKE
8	SHIELD, BOTTOM DUCT
9	5304530369 Frigidaire Blower Assembly
10	SHIELD, INSULATION, LOWER OVEN, DWO
11	5304526242 Frigidaire Seal
12	808136601 Frigidaire Oven Switch
13	SHIELD, BAFFLE, LOWER DWO, COOLING
14	5304526552 Frigidaire Motor Assembly
15	5304530343 Frigidaire Lamp Assembly
29	316517600 Frigidaire Oven Spacer
37	5304526310 Frigidaire Probe
58	INSULATION, OVEN, WRAPPER
58A	INSULATION, OVEN, REAR
59	TUBE, VENT CATALYST
66	5304536847 Frigidaire Element-Broil 6Pass
67	5304535239 Frigidaire Element-Hidden Bk 2
70	PANEL
71	5304526330 Frigidaire Shield Assembly
72	5304526588 Frigidaire Cover
73	COVER, ANTI VIBRATION
82	PLATE-EXT BOTTOM SC
83	BRACKET, BASE PANEL, MOUNT
86	5304526280 Frigidaire Hinge
107	5304526365 Frigidaire Cover
109	5304525455 Frigidaire Blade
111	561231207 Frigidaire Nut
125	5304526375 Frigidaire Motor
