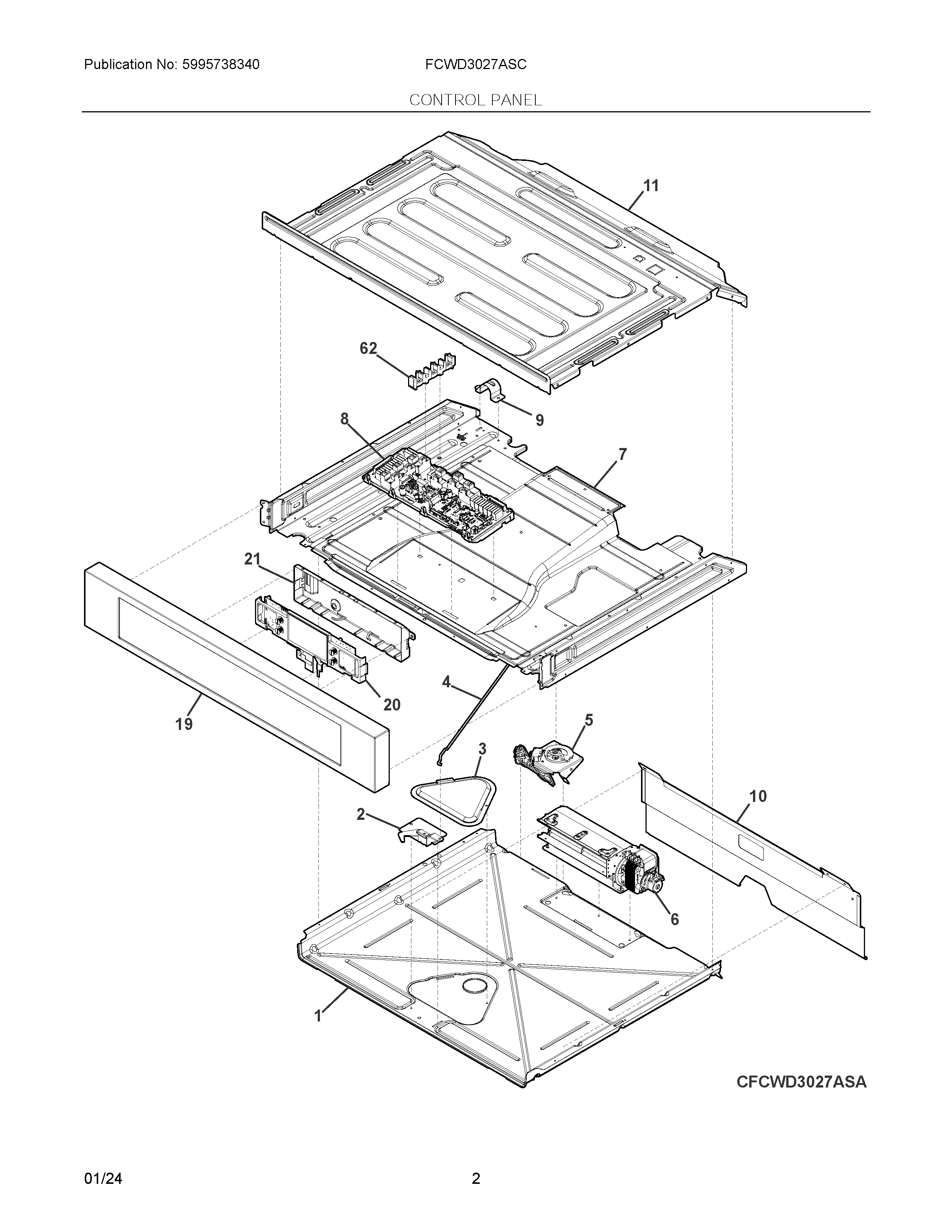

FCWD3027ASC 02 – CONTROL PANEL

FCWD3027ASC 02 – CONTROL PANEL

Written by

in

FCWD3027ASC 02 – CONTROL PANEL

Products

PositionProduct
NIB316205500 Frigidaire Oven Nut
NI5304533451 Frigidaire Harness
NI5304535368 Frigidaire Harness
NI387856311 Frigidaire Screw
NI5304526515 Frigidaire Harness
NIWCI 387872717
NICWCI 5304528293
NI5304532099 Frigidaire Harness
NIA316001017 Frigidaire Screw
1SHIELD, BOTTOM DUCT
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526552 Frigidaire Motor Assembly
65304530368 Frigidaire Blower Assembly
75304526538 Frigidaire Carrier Plate
85304525432 Frigidaire Board Assembly
9BRACKET, CONDUIT MTG.
10SHIELD, INSULATION, REAR, UPPER
115304532474 Frigidaire Shield Assembly
195304526473 Frigidaire Control Panel
20CONTROLLER
215304523582 Frigidaire Housing
625304409888 Frigidaire Oven Terminal Block with Hardware
