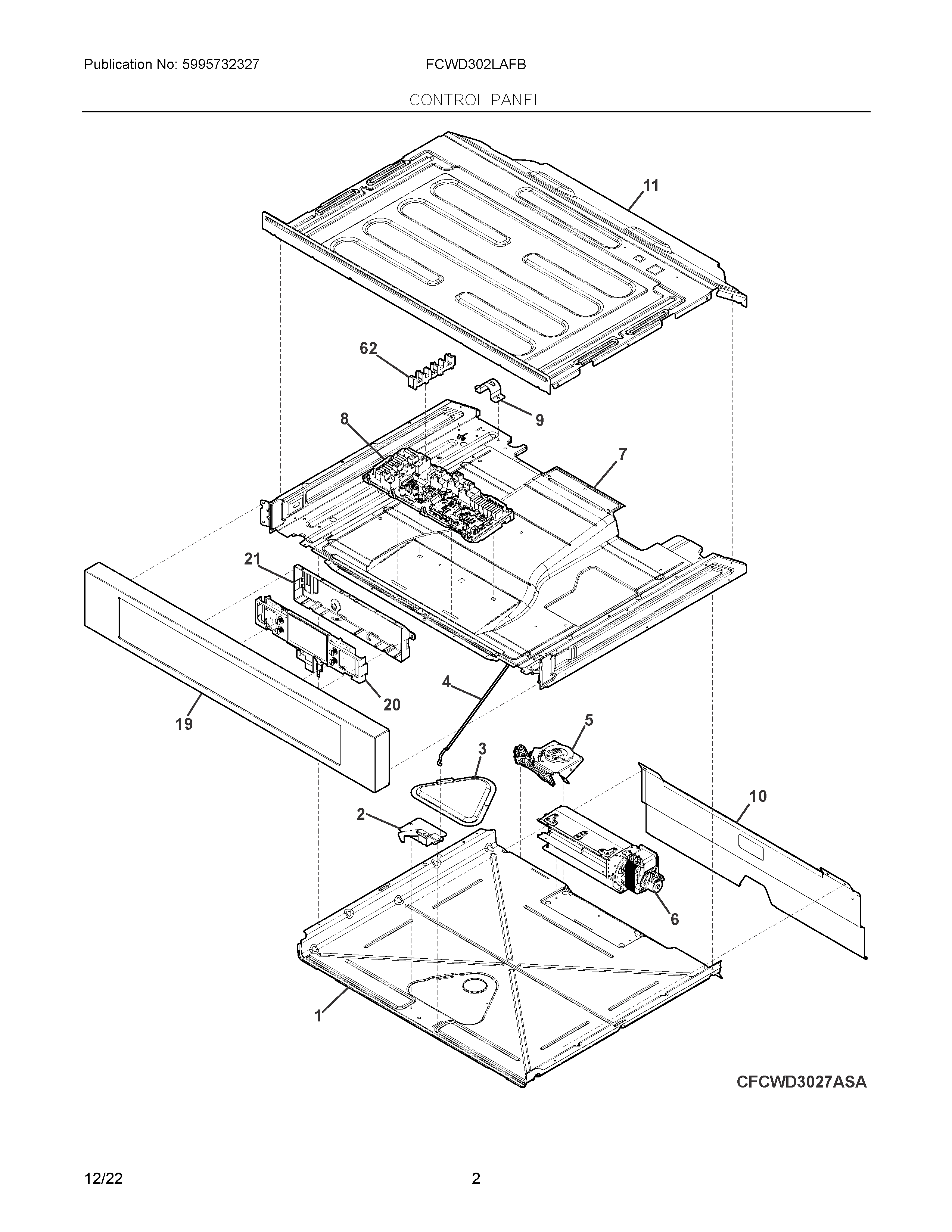

FCWD302LAFB 02 – CONTROL PANEL

Products

Position	Product
NIB	316205500 Frigidaire Oven Nut
NI	5304532099 Frigidaire Harness
NI	5304530448 Frigidaire Harness
NI	5304530449 Frigidaire Harness
NI	5304535368 Frigidaire Harness
NI	387856311 Frigidaire Screw
NI	5304526527 Frigidaire Harness
NIA	316001017 Frigidaire Screw
NI	5304532100 Frigidaire Harness
NI	5304526515 Frigidaire Harness
NIC	WCI 5304528293
NI	WCI 387872717
1	SHIELD, BOTTOM DUCT
2	5304526367 Frigidaire Latch Door
3	COVER, VENT
4	5304526368 Frigidaire Rod Assembly
5	5304526552 Frigidaire Motor Assembly
6	5304530368 Frigidaire Blower Assembly
7	5304526538 Frigidaire Carrier Plate
8	5304525432 Frigidaire Board Assembly
9	BRACKET, CONDUIT MTG.
10	SHIELD, INSULATION, REAR, UPPER
11	5304532474 Frigidaire Shield Assembly
19	5304526474 Frigidaire Control Panel
20	CONTROLLER
21	5304523582 Frigidaire Housing
62	5304409888 Frigidaire Oven Terminal Block with Hardware
