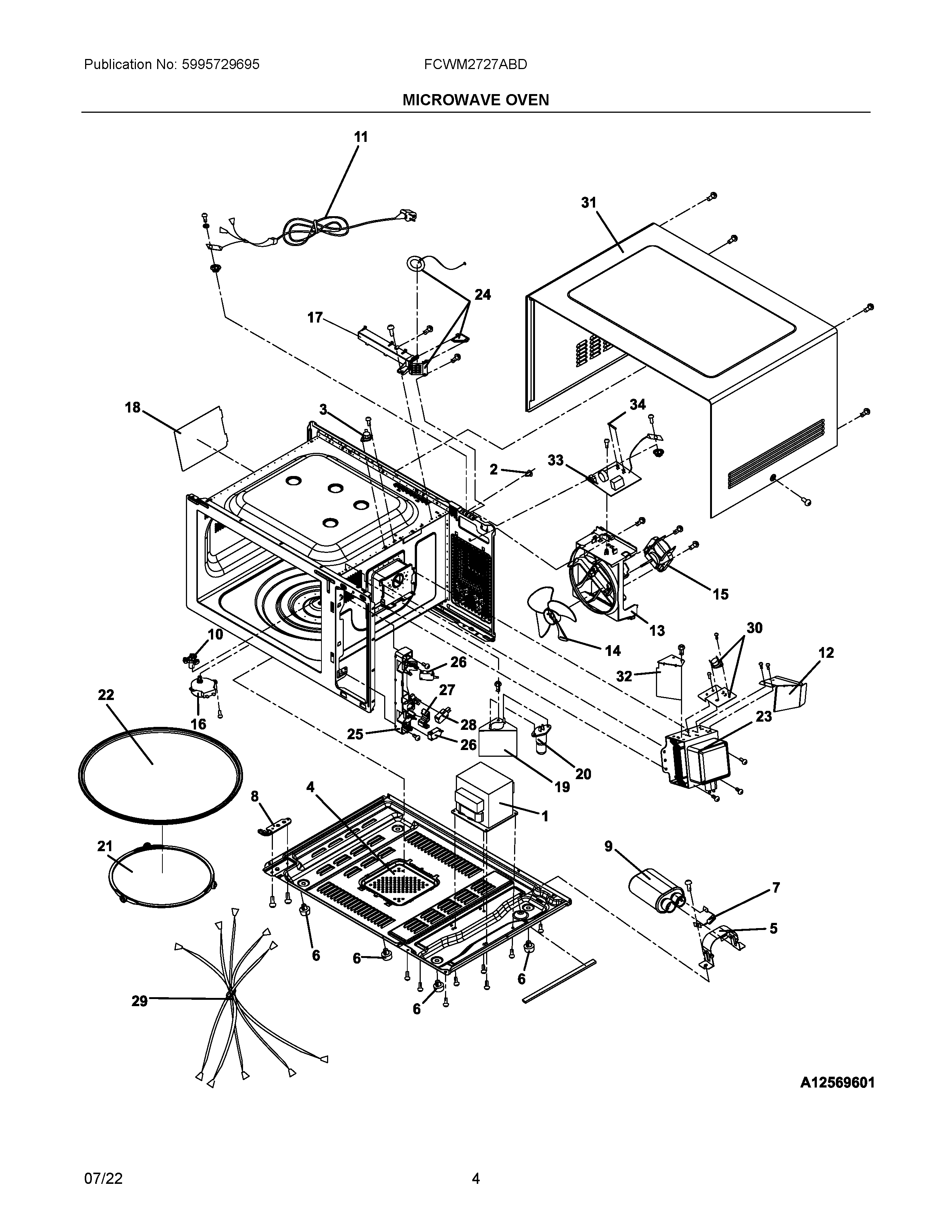

FCWM2727ABD 03 – MICROWAVE OVEN

Products

Position	Product
1	5304513457 Frigidaire Microwave High Voltage Transformer
2	BRACKET, STIRRER
3	5304520011 Frigidaire Microwave Thermostat
4	BASE, PLATE
5	5304509477 Frigidaire Retainer
6	5304505674 Frigidaire Microwave Foot
7	DIODE, HIGH VOLTAGE
8	5304519320 Frigidaire Microwave Hinge
9	5304520013 Frigidaire Microwave Capacitor
10	5304520014 Frigidaire Microwave Coupler
11	POWER CORD
12	5304513477 Frigidaire Microwave Guide
13	5304519349 Frigidaire Guide
14	5304519350 Frigidaire Microwave Blade
15	5304509471 Frigidaire Microwave Motor
16	5304518905 Frigidaire Microwave Motor
17	GUIDE
18	5304505675 Frigidaire Microwave Stirrer Blade Cover
19	5304520017 Frigidaire Microwave Cover
20	5304514246 Frigidaire Microwave Lamp
21	5304505673 Frigidaire Microwave Support
22	5304509621 Frigidaire Microwave Glass Tray
23	5304513456 Frigidaire Microwave Magnetron
24	5304520018 Frigidaire Microwave Sensor
25	5304519341 Frigidaire Microwave Bracket
26A	SWITCH
26	5304520019 Frigidaire Microwave Microswitch
27	5304519342 Frigidaire Microwave Lever
28	5304520021 Frigidaire Microwave Microswitch
29	5304520022 Frigidaire Microwave Harness
30	5304515183 Frigidaire Microwave Thermostat
31	WRAPPER
32	COVER, WIND GUIDE
33	5304525109 Frigidaire Microwave Filter
34	5304509451 Frigidaire Microwave Fuse
