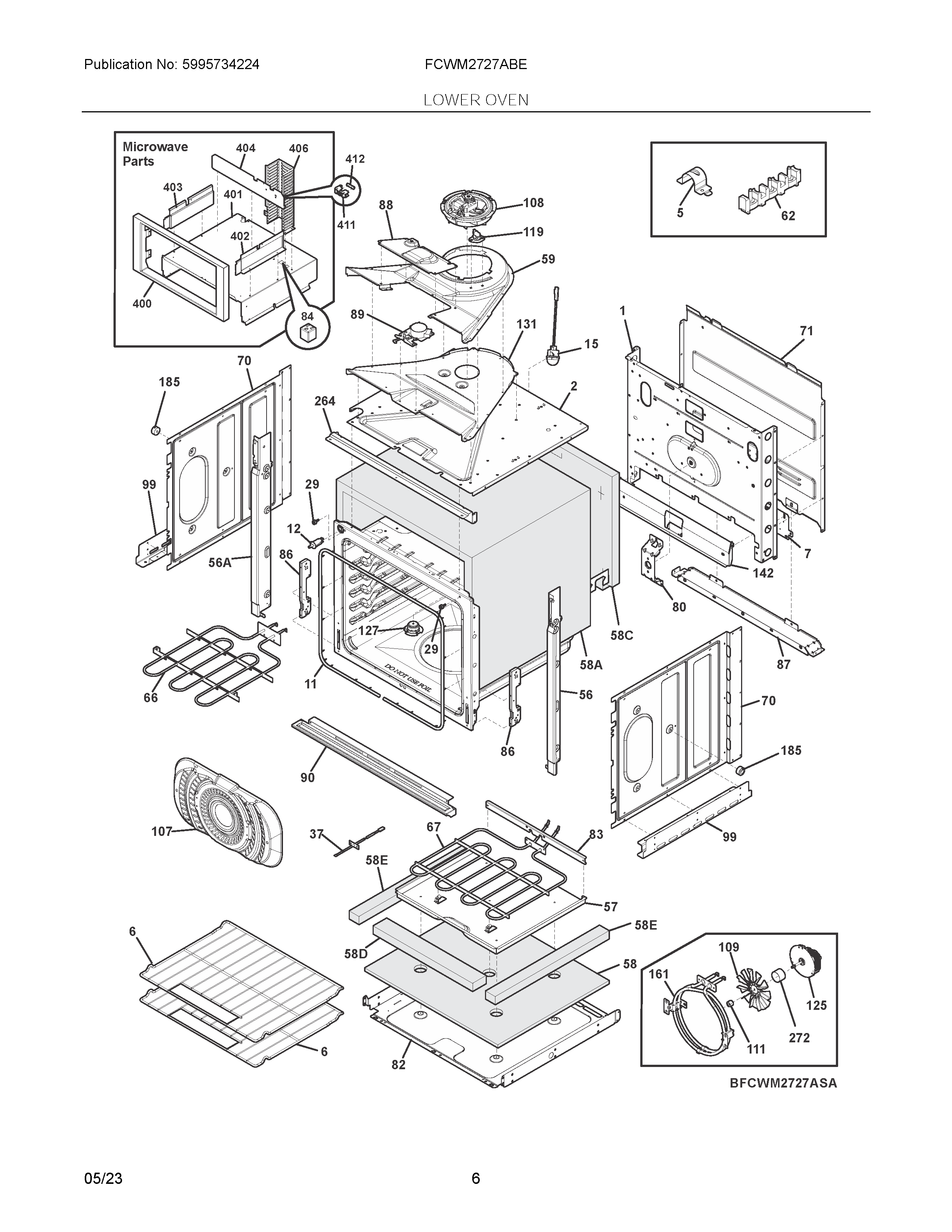

FCWM2727ABE 04 – LOWER OVEN

FCWM2727ABE 04 – LOWER OVEN

Written by

in

FCWM2727ABE 04 – LOWER OVEN

Products

PositionProduct
NI316021109 Frigidaire Oven Screw
NI5304526533 Frigidaire Screw
NI387856311 Frigidaire Screw
NIWCI 5304525449
NI5304470882 Frigidaire Oven Screw
NIWCI 5304528293
NIWCI 5304531542
NIWCI 5304527960
NIA5304516521 Frigidaire Harness
NIA316418900 Frigidaire Oven Screw
NIA316001017 Frigidaire Screw
NIAWCI 387872717
NIHARNESS, WIRING, LOW VOLTAGE
NIB316205500 Frigidaire Oven Nut
NI5304535368 Frigidaire Harness
15304506958 Frigidaire Panel
2139027809 Frigidaire SHIELD
5BRACKET, CONDUIT MTG.
6139011900 Frigidaire Oven Rack
7PANEL, SERVICE, MAIN BACK
11807545501 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304530343 Frigidaire Lamp Assembly
29316517600 Frigidaire Oven Spacer
375304525427 Frigidaire Probe
56TRIM, SIDE, BLACK, RH
56A5304525434 Frigidaire Trim
575304506949 Frigidaire Box
58E5304506966 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
58C5304506954 Frigidaire Insulation
58A139001701 Frigidaire INSULATION
585304506952 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304514924 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139022001 Frigidaire SHIELD
80139021101 Frigidaire Bracket Assembly
825304506947 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
84OUTLET ASSEMBLY, ELECTRICAL, W/HARNESS
86808930503 Frigidaire Receptacle
87WCI 139021901
885304506964 Frigidaire Oven Cover
895304528835 Frigidaire Motor
905304532551 Frigidaire Trim
99318256201 Frigidaire Oven Bracket
1075304527949 Frigidaire Cover
1085304529887 Frigidaire Motor Assembly
1095304525455 Frigidaire Blade
111316136600 Frigidaire Oven Range Lock Nut
112THERMOSTAT,SAFETY,125C
125139008507 Frigidaire Motor Assembly
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
142WCI 5304506953
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
264139003501 Frigidaire Oven Trim Assembly
272139021700 Frigidaire Oven Tube
400WCI 5304527956
401SUPPORT, PLATE
402WCI 5304527950
403WCI 5304527951
404WCI 5304527952
406WCI 5304527953
4115304516517 Frigidaire Receptacle
4125304518868 Frigidaire Oven Fuse
