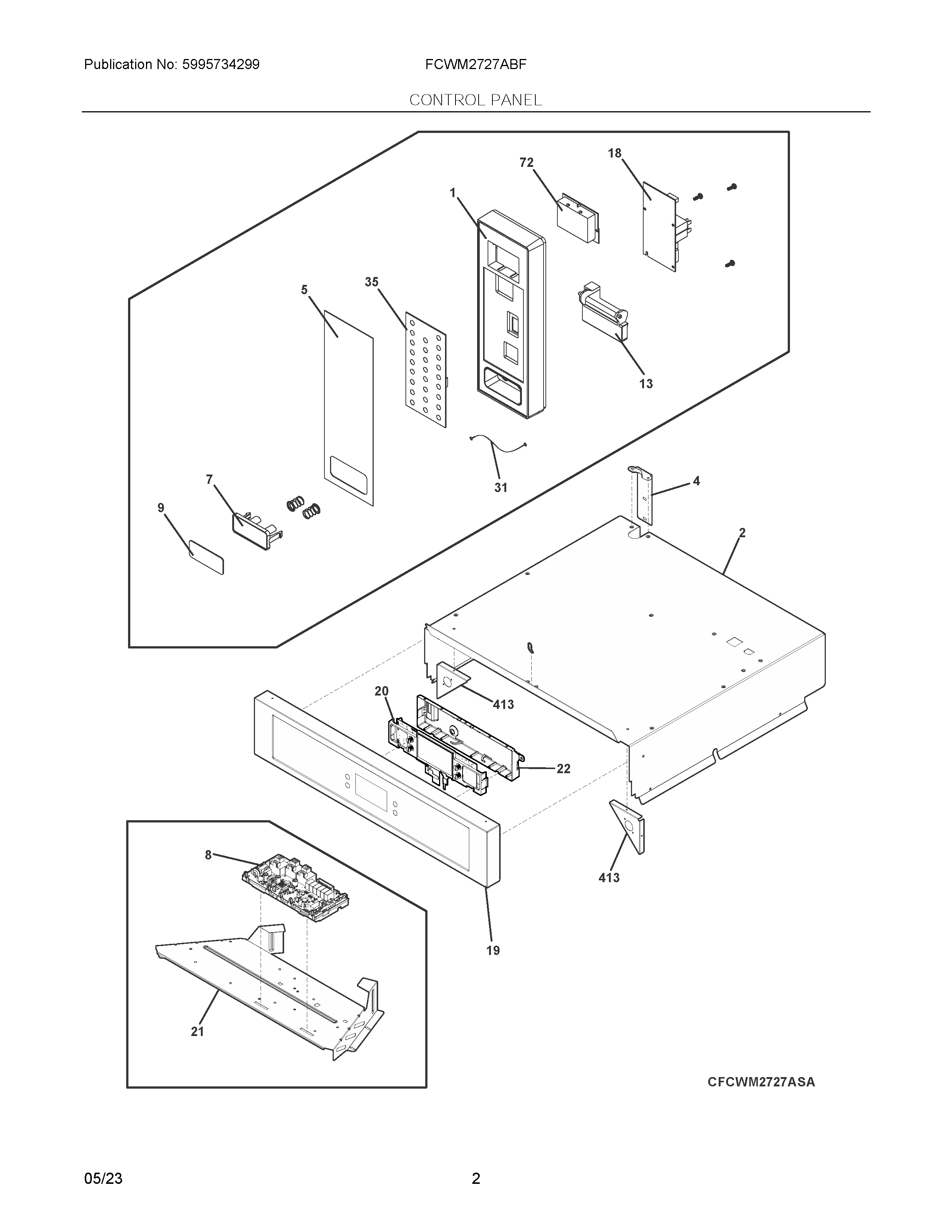

FCWM2727ABF 02 – CONTROL PANEL

FCWM2727ABF 02 – CONTROL PANEL

Written by

in

FCWM2727ABF 02 – CONTROL PANEL

Products

PositionProduct
NI316001017 Frigidaire Screw
NIHARNESS, GROUNDING, CONTROL PANEL
NIHARNESS, WIRING, LOW VOLTAGE
NI5304526533 Frigidaire Screw
NI387856311 Frigidaire Screw
NIAWCI 387872717
15304520027 Frigidaire Microwave Control Panel
2SUPPORT, PLATE
4BRACKET, CONDUIT
55304520029 Frigidaire Microwave Membrane
75304520028 Frigidaire Microwave Button
85304536397 Frigidaire Ovc M Wo Board
95304520025 Frigidaire Cover
135304520026 Frigidaire Microwave Lever
185304520031 Frigidaire Microwave Control Board
195304527962 Frigidaire Control Panel
205304537022 Frigidaire Control-Eoc Pux E S
21BRACKET, MOUNTING
225304523582 Frigidaire Housing
315304520032 Frigidaire Connector
355304520030 Frigidaire Microwave Touch Pad
725304519365 Frigidaire Microwave Control Panel
413807874501 Frigidaire Microwave Gusset
