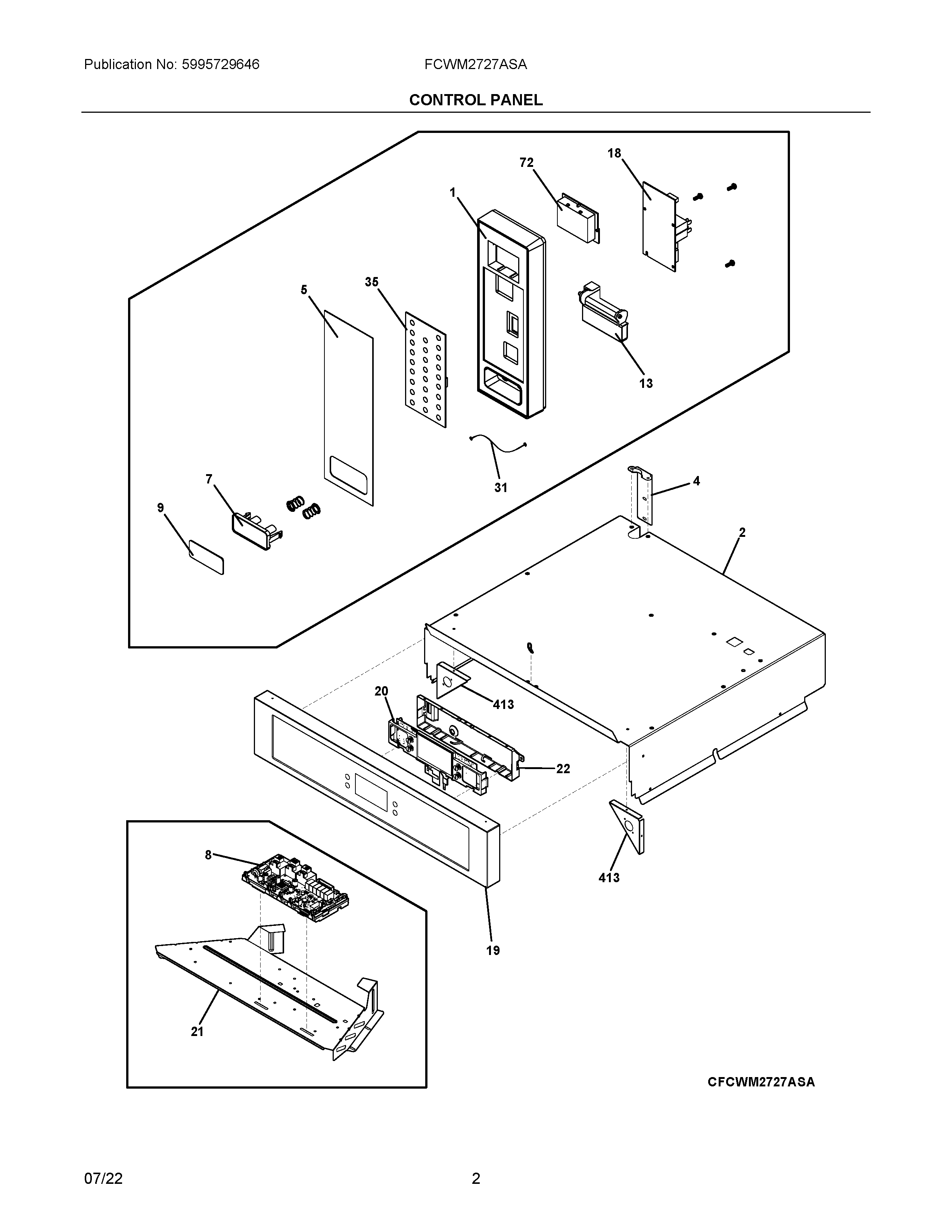

FCWM2727ASA 02 – CONTROL PANEL

Written by

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NIA	WCI 387872717
NI	HARNESS, WIRING, LOW VOLTAGE
NI	HARNESS, GROUNDING, CONTROL PANEL
1	5304520027 Frigidaire Microwave Control Panel
2	SUPPORT, PLATE
4	BRACKET, CONDUIT
5	5304520029 Frigidaire Microwave Membrane
7	5304520028 Frigidaire Microwave Button
8	5304536397 Frigidaire Ovc M Wo Board
9	5304520025 Frigidaire Cover
13	5304520026 Frigidaire Microwave Lever
18	5304520031 Frigidaire Microwave Control Board
19	5304527961 Frigidaire Control Panel
20	5304537022 Frigidaire Control-Eoc Pux E S
21	BRACKET, MOUNTING
22	5304523582 Frigidaire Housing
31	5304520032 Frigidaire Connector
35	5304520030 Frigidaire Microwave Touch Pad
72	5304519365 Frigidaire Microwave Control Panel
413	807874501 Frigidaire Microwave Gusset
