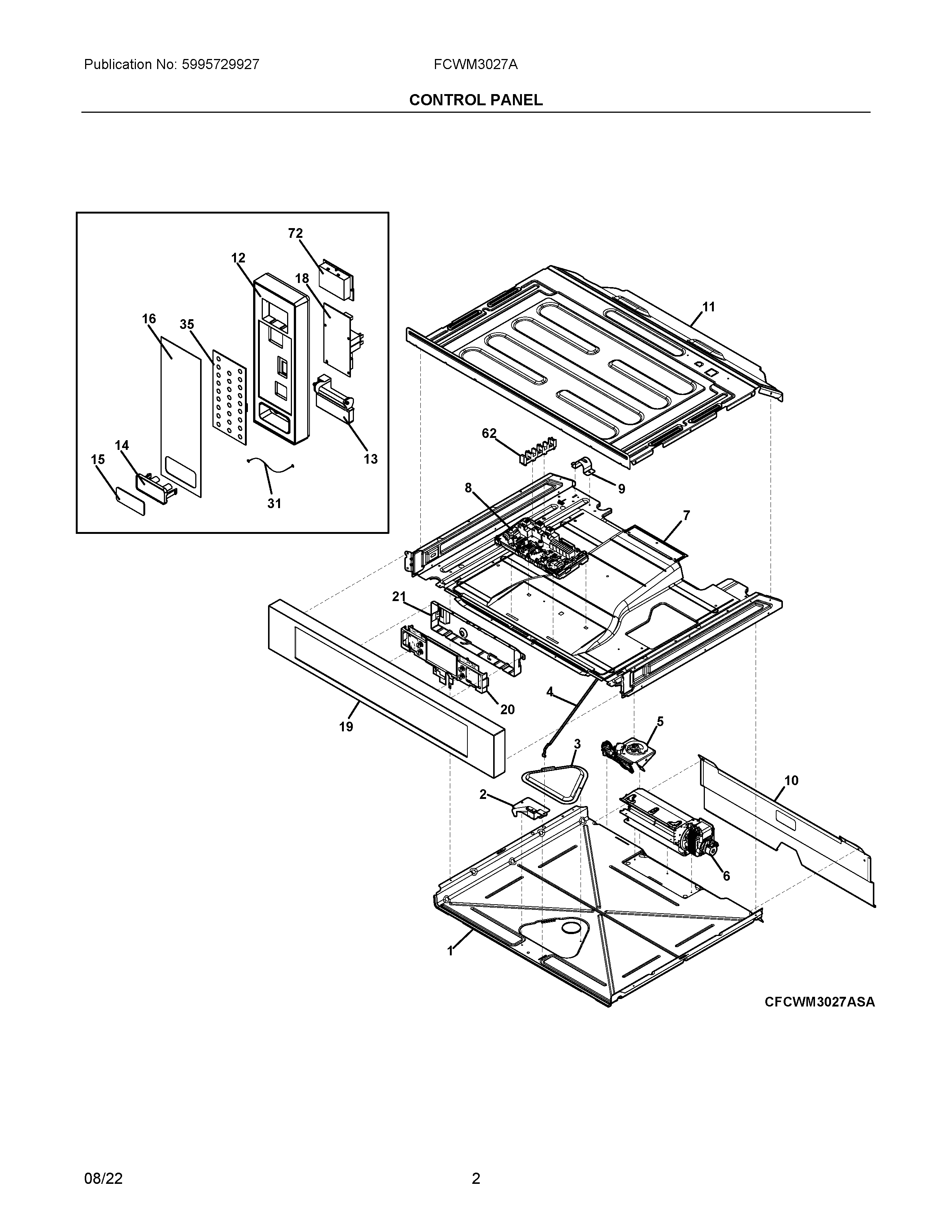

FCWM3027ABA 02 – CONTROL PANEL

Products

Position	Product
NIB	316205500 Frigidaire Oven Nut
NI	5304533451 Frigidaire Harness
NI	5304535368 Frigidaire Harness
NI	387856311 Frigidaire Screw
NI	5304526515 Frigidaire Harness
NIA	WCI 387872717
NIC	WCI 5304528293
NI	5304532099 Frigidaire Harness
NIA	316001017 Frigidaire Screw
1	SHIELD, BOTTOM DUCT
2	5304526367 Frigidaire Latch Door
3	COVER, VENT
4	5304526368 Frigidaire Rod Assembly
5	5304526552 Frigidaire Motor Assembly
6	5304530368 Frigidaire Blower Assembly
7	5304526538 Frigidaire Carrier Plate
8	5304536397 Frigidaire Ovc M Wo Board
9	BRACKET, CONDUIT MTG.
10	SHIELD, INSULATION, REAR, UPPER
11	5304532474 Frigidaire Shield Assembly
12	5304520027 Frigidaire Microwave Control Panel
13	5304520026 Frigidaire Microwave Lever
14	5304520028 Frigidaire Microwave Button
15	5304520025 Frigidaire Cover
16	5304520029 Frigidaire Microwave Membrane
18	5304520031 Frigidaire Microwave Control Board
19	5304530365 Frigidaire Control Panel
20	5304536938 Frigidaire Controller Assembly
21	5304523582 Frigidaire Housing
31	5304520032 Frigidaire Connector
35	5304520030 Frigidaire Microwave Touch Pad
62	5304409888 Frigidaire Oven Terminal Block with Hardware
72	5304519365 Frigidaire Microwave Control Panel
