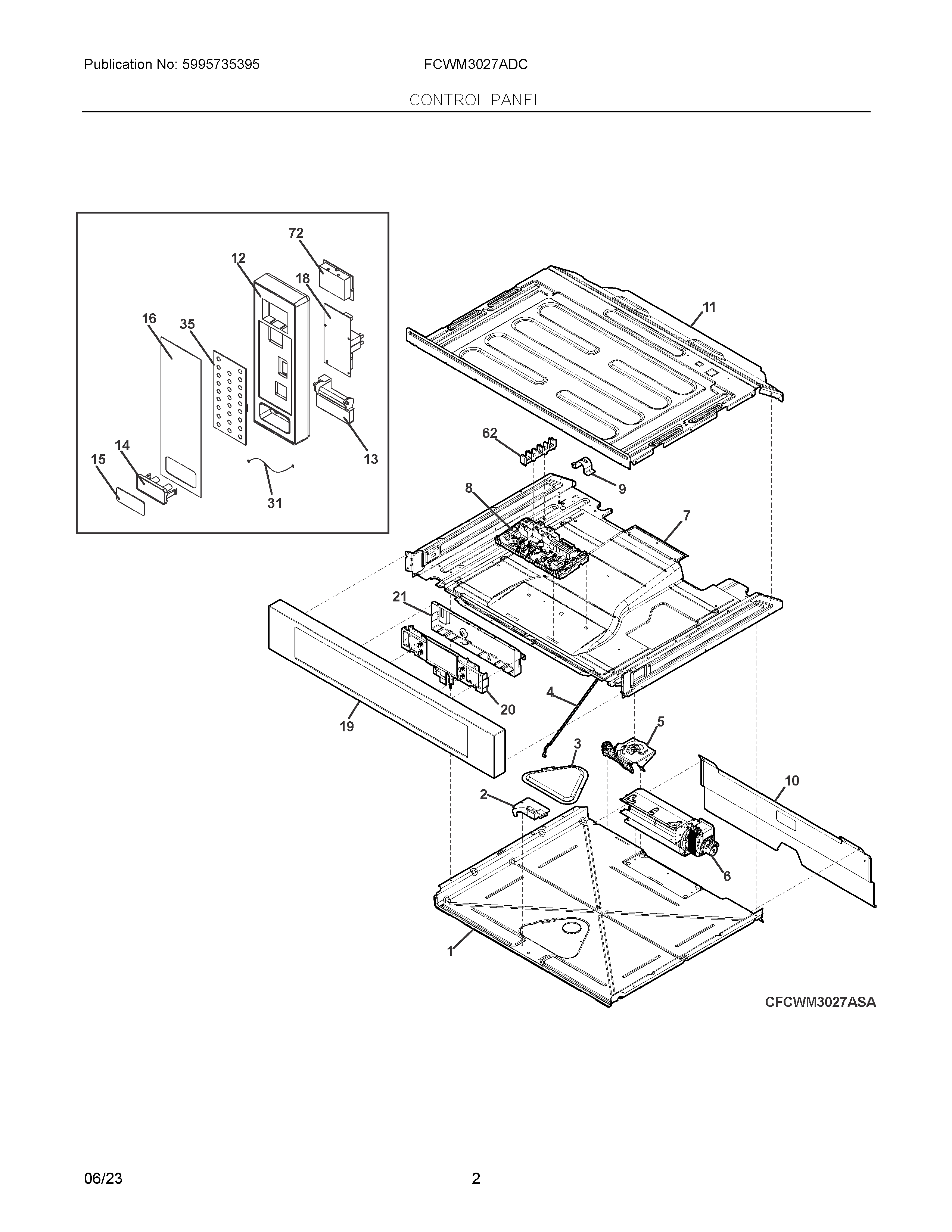

FCWM3027ADC 02 – CONTROL PANELadmin2025-04-26T10:51:47+00:00FCWM3027ADC 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| NIB | 316205500 Frigidaire Oven Nut |
| NI | HARNESS, WIRING, UPPER OVEN, DS |
| NI | 5304535368 Frigidaire Harness |
| NI | 387856311 Frigidaire Screw |
| NI | 5304526515 Frigidaire Harness |
| NI | 5304532099 Frigidaire Harness |
| NIA | WCI 387872717 |
| NIC | WCI 5304528293 |
| NIA | 316001017 Frigidaire Screw |
| 1 | SHIELD, BOTTOM DUCT |
| 2 | 5304526367 Frigidaire Latch Door |
| 3 | COVER, VENT |
| 4 | 5304526368 Frigidaire Rod Assembly |
| 5 | 5304526552 Frigidaire Motor Assembly |
| 6 | 5304530368 Frigidaire Blower Assembly |
| 7 | 5304526538 Frigidaire Carrier Plate |
| 8 | 5304536397 Frigidaire Ovc M Wo Board |
| 9 | BRACKET, CONDUIT MTG. |
| 10 | SHIELD, INSULATION, REAR, UPPER |
| 11 | 5304532474 Frigidaire Shield Assembly |
| 12 | 5304520027 Frigidaire Microwave Control Panel |
| 13 | 5304520026 Frigidaire Microwave Lever |
| 14 | 5304520028 Frigidaire Microwave Button |
| 15 | 5304520025 Frigidaire Cover |
| 16 | 5304520029 Frigidaire Microwave Membrane |
| 18 | 5304520031 Frigidaire Microwave Control Board |
| 19 | CONTROL PANEL, ASSEMBLY, STEEL/GLASS, BLACK STAINLESS |
| 20 | 5304536938 Frigidaire Controller Assembly |
| 21 | 5304523582 Frigidaire Housing |
| 31 | 5304520032 Frigidaire Connector |
| 35 | 5304520030 Frigidaire Microwave Touch Pad |
| 62 | 5304535277 Frigidaire Terminal Block |
| 72 | 5304519365 Frigidaire Microwave Control Panel |
