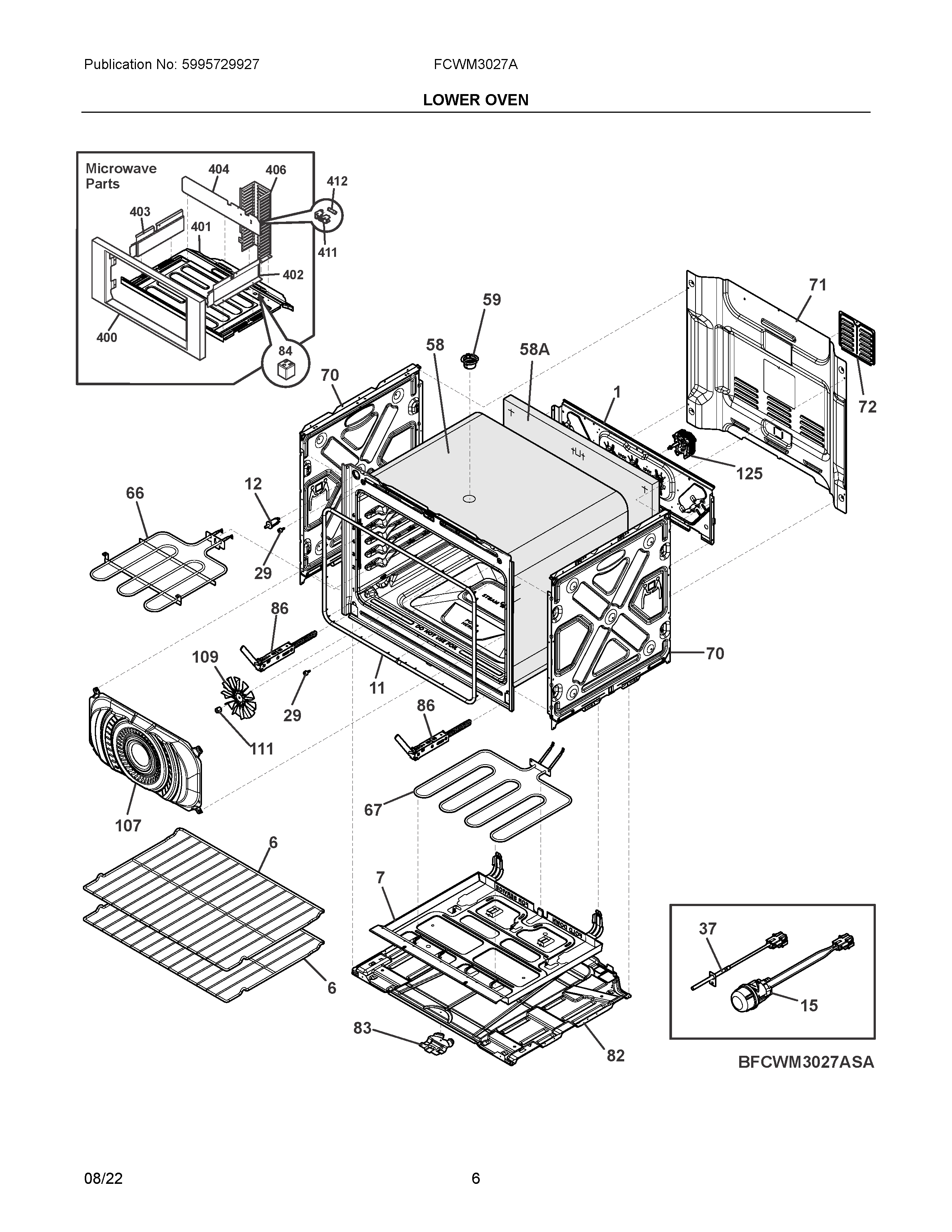

FCWM3027ASA 04 – LOWER OVENadmin2025-04-26T10:52:53+00:00FCWM3027ASA 04 – LOWER OVEN
Products
| Position | Product |
|---|
| NI | 5304530450 Frigidaire Anti Tip |
| NIA | 5304516521 Frigidaire Harness |
| NI | SCREW, SELF DRILL, D3.5 X 10, ZINC |
| NI | 5304532099 Frigidaire Harness |
| NI | 5304535368 Frigidaire Harness |
| NI | 387856311 Frigidaire Screw |
| NI | 5304526515 Frigidaire Harness |
| NIA | 5304526234 Frigidaire Screw |
| NIA | 5304526532 Frigidaire Screw |
| NI | WCI 387872717 |
| NIA | WCI 5304528293 |
| NI | SCREW, SHEET METAL, 4.2 X 10 |
| NI | WCI 5304530471 |
| NI | 5304533451 Frigidaire Harness |
| 1 | PANEL |
| 6 | 5304531722 Frigidaire Rack |
| 7 | TRAY, HIDDEN BAKE |
| 11 | 5304526242 Frigidaire Seal |
| 12 | 808136601 Frigidaire Oven Switch |
| 15 | 5304530343 Frigidaire Lamp Assembly |
| 29 | 316517600 Frigidaire Oven Spacer |
| 37 | 5304526310 Frigidaire Probe |
| 58A | INSULATION, OVEN, REAR |
| 58 | INSULATION, OVEN, WRAPPER |
| 59 | TUBE, VENT CATALYST |
| 66 | 5304536847 Frigidaire Element-Broil 6Pass |
| 67 | 5304535239 Frigidaire Element-Hidden Bk 2 |
| 70 | PANEL |
| 71 | 5304526329 Frigidaire Shield |
| 72 | 5304526588 Frigidaire Cover |
| 82 | PLATE-EXT BOTTOM SC |
| 83 | BRACKET, BASE PANEL, MOUNT |
| 84 | OUTLET ASSEMBLY, ELECTRICAL, W/HARNESS |
| 86 | 5304526280 Frigidaire Hinge |
| 107 | 5304526365 Frigidaire Cover |
| 109 | 5304525455 Frigidaire Blade |
| 111 | 561231207 Frigidaire Nut |
| 125 | 5304526375 Frigidaire Motor |
| 400 | 5304530370 Frigidaire Trim Assembly |
| 401 | 5304532474 Frigidaire Shield Assembly |
| 402 | WCI 5304527950 |
| 403 | WCI 5304527951 |
| 404 | WCI 5304527952 |
| 406 | WCI 5304527953 |
| 411 | 5304516517 Frigidaire Receptacle |
| 412 | 5304518868 Frigidaire Oven Fuse |
