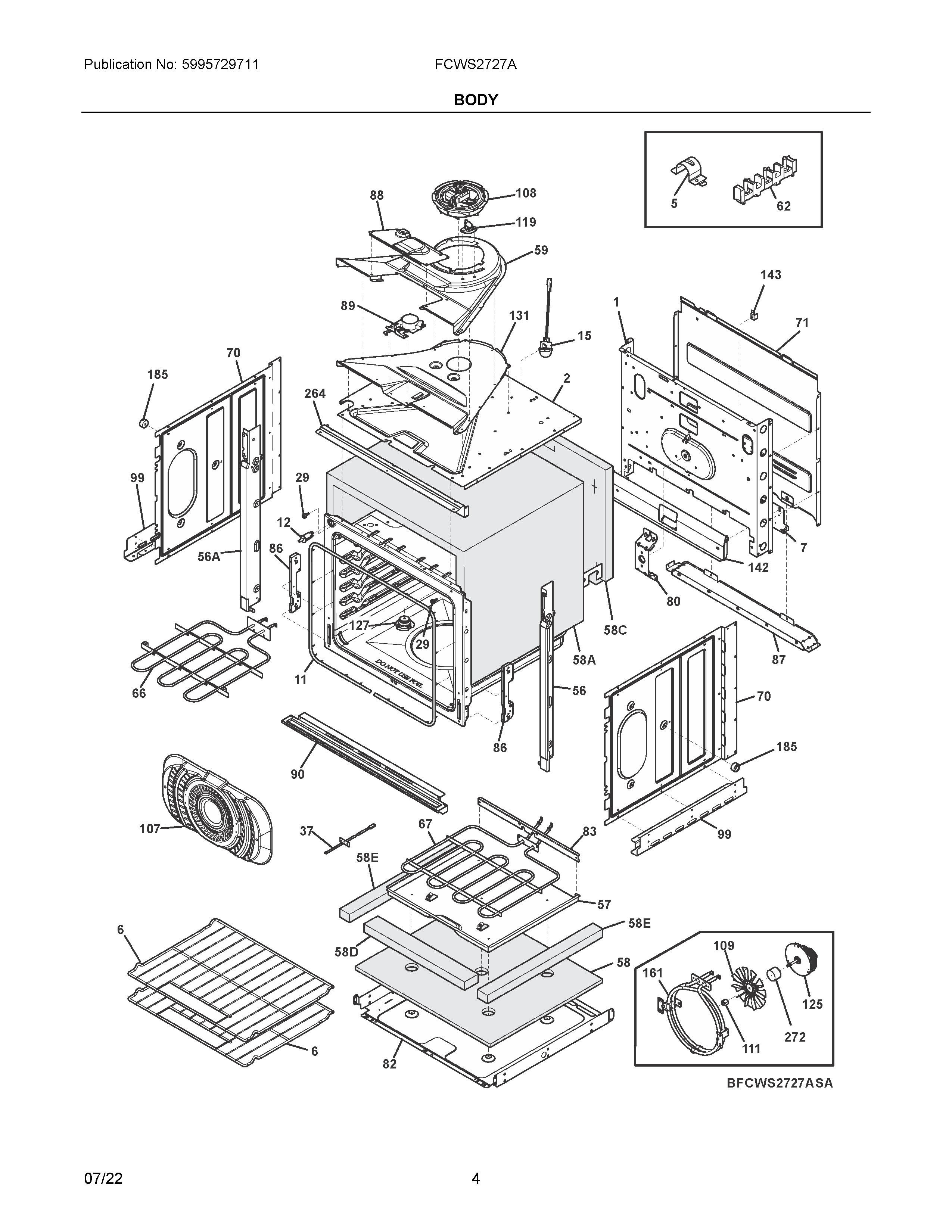

FCWS2727ABA 03 – BODY

FCWS2727ABA 03 – BODY

Written by

in

FCWS2727ABA 03 – BODY

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	WCI 5304531542
NI	5304535368 Frigidaire Harness
NI	WCI 5304525449
NI	HARNESS
NI	5304470882 Frigidaire Oven Screw
NI	807597603 Frigidaire Oven Screw
NI	HARNESS, WIRING, LOW VOLTAGE
NIA	316205500 Frigidaire Oven Nut
NI	316021109 Frigidaire Oven Screw
NIB	5303289910 Frigidaire Oven Screw
NIA	316418900 Frigidaire Oven Screw
NIA	316001017 Frigidaire Screw
1	5304506958 Frigidaire Panel
2	139027809 Frigidaire SHIELD
5	BRACKET, CONDUIT MTG.
6	139011900 Frigidaire Oven Rack
7	PANEL, SERVICE, MAIN BACK
11	807545501 Frigidaire Oven Seal
12	808136601 Frigidaire Oven Switch
15	5304530343 Frigidaire Lamp Assembly
29	316517600 Frigidaire Oven Spacer
37	5304525427 Frigidaire Probe
56A	5304525434 Frigidaire Trim
56	TRIM, SIDE, BLACK, RH
57	5304506949 Frigidaire Box
58D	5304506965 Frigidaire Insulation
58	5304506952 Frigidaire Insulation
58A	139001701 Frigidaire INSULATION
58E	5304506966 Frigidaire Insulation
58C	5304506954 Frigidaire Insulation
59	139027600 Frigidaire Oven Duct
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	5304514924 Frigidaire Element
67	5304506946 Frigidaire Oven Element
70	139000601 Frigidaire Oven Shield
71	139022001 Frigidaire SHIELD
80	139021101 Frigidaire Bracket Assembly
82	5304506947 Frigidaire Shield
83	5304506951 Frigidaire Shield Appliance
86	808930503 Frigidaire Receptacle
87	WCI 139021901
88	5304506964 Frigidaire Oven Cover
89	5304528835 Frigidaire Motor
90	5304532551 Frigidaire Trim
99	318256201 Frigidaire Oven Bracket
107	5304527949 Frigidaire Cover
108	5304529887 Frigidaire Motor Assembly
109	5304525455 Frigidaire Blade
111	316136600 Frigidaire Oven Range Lock Nut
112	THERMOSTAT,SAFETY,125C
125	139008507 Frigidaire Motor Assembly
127	139042600 Frigidaire Tube Assembly
131	139027700 Frigidaire Oven Duct
142	WCI 5304506953
143	318172904 Frigidaire Bracket
161	139006500 Frigidaire Oven Element
185	318531800 Frigidaire Oven Spacer
264	139003501 Frigidaire Oven Trim Assembly
272	139021700 Frigidaire Oven Tube
