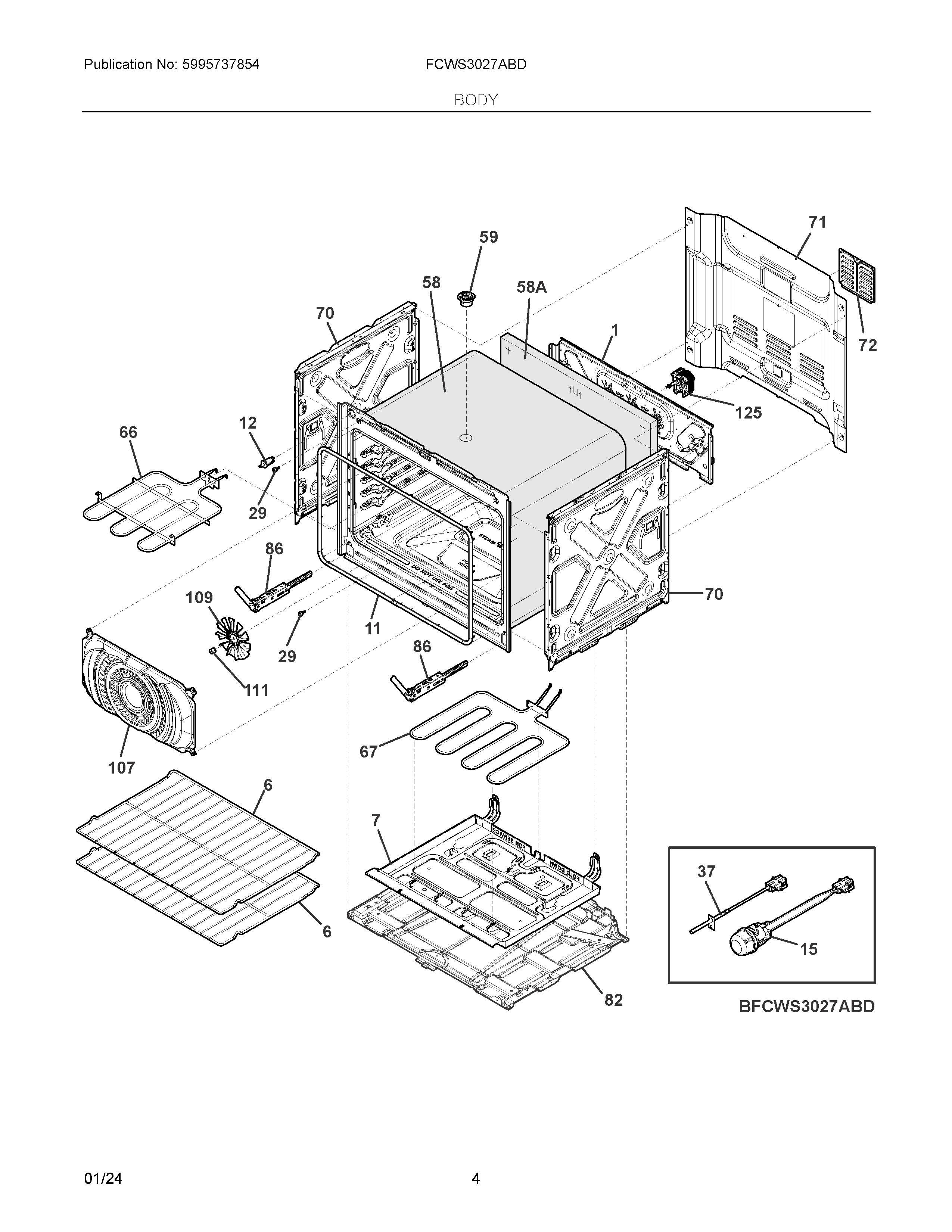

FCWS3027ABD 03 – BODY

Products

Position	Product
NI	5304530450 Frigidaire Anti Tip
NI	5304532099 Frigidaire Harness
NI	5304526515 Frigidaire Harness
NIA	WCI 387872717
NI	5304533451 Frigidaire Harness
NIA	5304526532 Frigidaire Screw
NIA	5304526234 Frigidaire Screw
NI	387856311 Frigidaire Screw
NI	5304535368 Frigidaire Harness
1	PANEL
6	5304531722 Frigidaire Rack
7	TRAY, HIDDEN BAKE
11	5304526242 Frigidaire Seal
12	808136601 Frigidaire Oven Switch
15	5304530343 Frigidaire Lamp Assembly
29	316517600 Frigidaire Oven Spacer
37	5304526310 Frigidaire Probe
58	INSULATION, OVEN, WRAPPER
58A	INSULATION, OVEN, REAR
59	TUBE, VENT CATALYST
66	5304536847 Frigidaire Element-Broil 6Pass
67	ASM-HIDDEN BAKE SYSTEM, 67 #
70	PANEL
71	5304526329 Frigidaire Shield
72	5304526588 Frigidaire Cover
82	PLATE-EXT BOTTOM SC
86	5304526280 Frigidaire Hinge
107	5304526365 Frigidaire Cover
109	5304525455 Frigidaire Blade
111	561231207 Frigidaire Nut
125	5304526375 Frigidaire Motor
