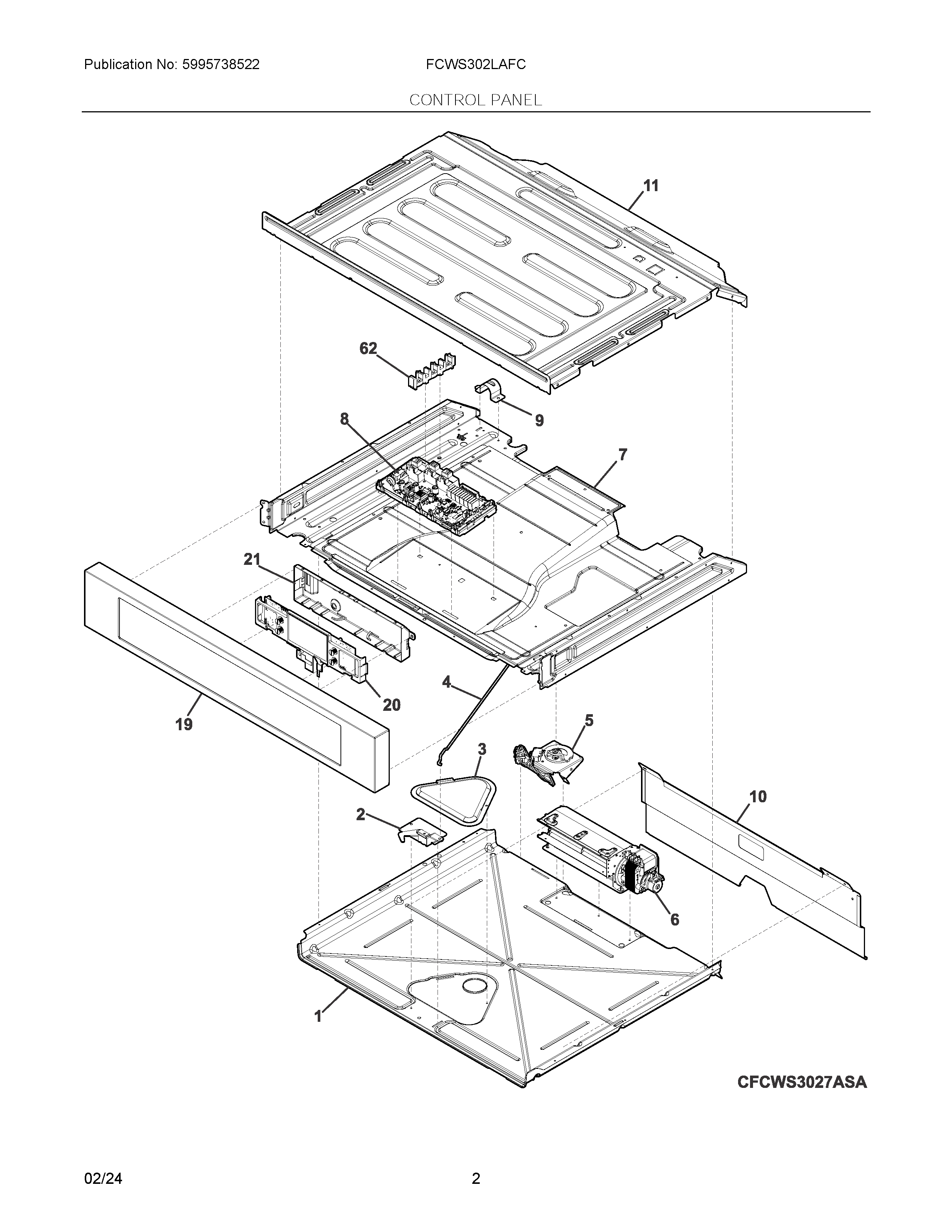

FCWS302LAFC 02 – CONTROL PANEL

Products

Position	Product
NIB	316205500 Frigidaire Oven Nut
NI	5304533451 Frigidaire Harness
NI	5304535368 Frigidaire Harness
NI	387856311 Frigidaire Screw
NI	5304526515 Frigidaire Harness
NI	WCI 387872717
NIC	WCI 5304528293
NI	5304532099 Frigidaire Harness
NIA	316001017 Frigidaire Screw
1	SHIELD, BOTTOM DUCT
2	5304526367 Frigidaire Latch Door
3	COVER, VENT
4	5304526368 Frigidaire Rod Assembly
5	5304526552 Frigidaire Motor Assembly
6	5304530368 Frigidaire Blower Assembly
7	5304526538 Frigidaire Carrier Plate
8	5304536397 Frigidaire Ovc M Wo Board
9	BRACKET, CONDUIT MTG.
10	SHIELD, INSULATION, REAR, UPPER
11	5304532474 Frigidaire Shield Assembly
19	5304526474 Frigidaire Control Panel
20	5304536938 Frigidaire Controller Assembly
21	5304523582 Frigidaire Housing
62	5304409888 Frigidaire Oven Terminal Block with Hardware
