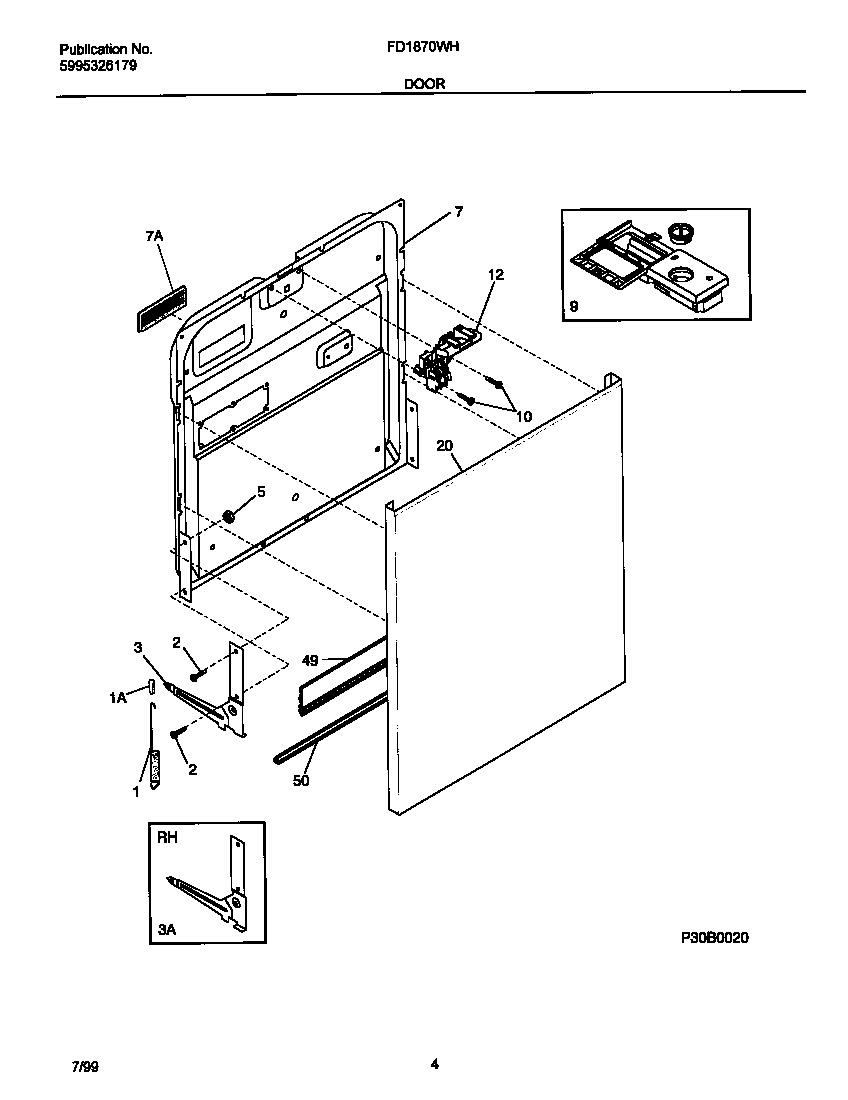

FD1870WHB0 03 – DOOR

FD1870WHB0 03 – DOOR

Written by

in

FD1870WHB0 03 – DOOR

Products

PositionProduct
*25528154294701 Frigidaire Dishwasher Screw
*25526PIN-ARM (NOT ILLUSTRATED)
*25527WCI 154320301
*25530INSULATION,DOOR
*25529WCI 154200601
1154325201 Frigidaire Linkage Spring
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
7WCI 154226601
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154359103
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
