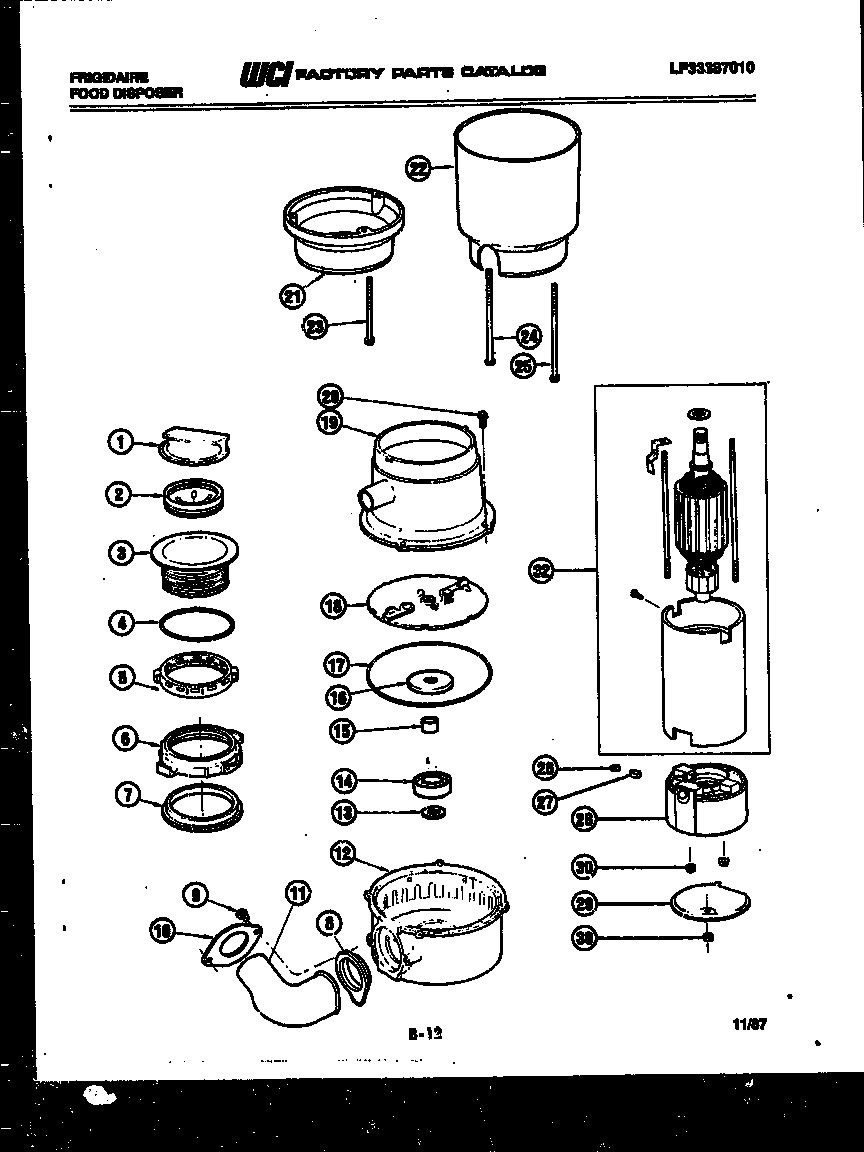

FD3000D 02 – FOOD DISPOSER PARTS

Products

Position	Product
1	WCI 3011865
2	WCI 3013800
3	SINK FLANGE ASSY
4	WCI 3012631
4	WCI 3012629
4	WCI 3012630
5	WCI 3013801
6	WCI 3013802
7	WCI 3013260
8	WCI 3012628
9	SCREW-OUTLET (2)
10	WCI 3012360
11	WCI 3014102
12	WCI 3015639
13	THRUST WASHER (INCLUDED WITH REF. NO. 13)
14	SEAL WATER (INCLUDED WITH REF. NO. 13)
15	SPACER-SEAL (INCLUDED WITH REF. NO. 13)
16	WCI 3014603
17	WCI 3013981
18	TURNTABLE ASSY
19	WCI 3015638
20	SCREW-HOPPER (6)
21	WCI 3014667
23	WCI 3015677
26	WCI 3014106
27	WCI 3011614
28	WCI 3015640
29	WCI 3015633
30	WCI 3015630
